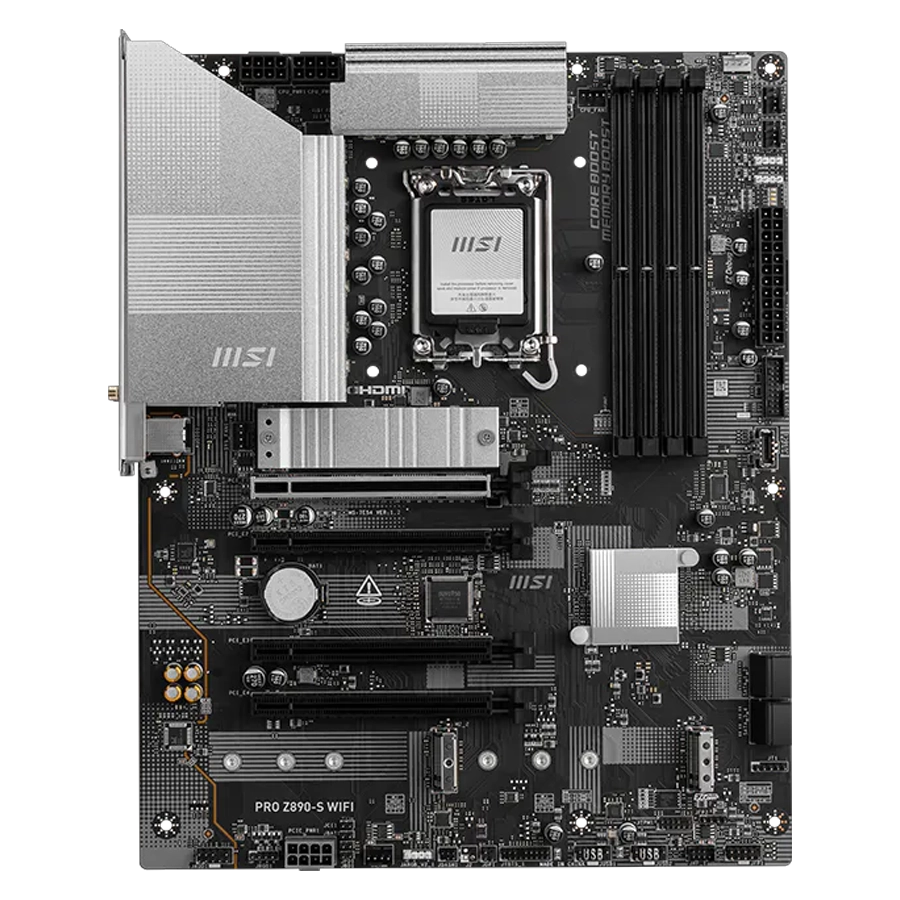

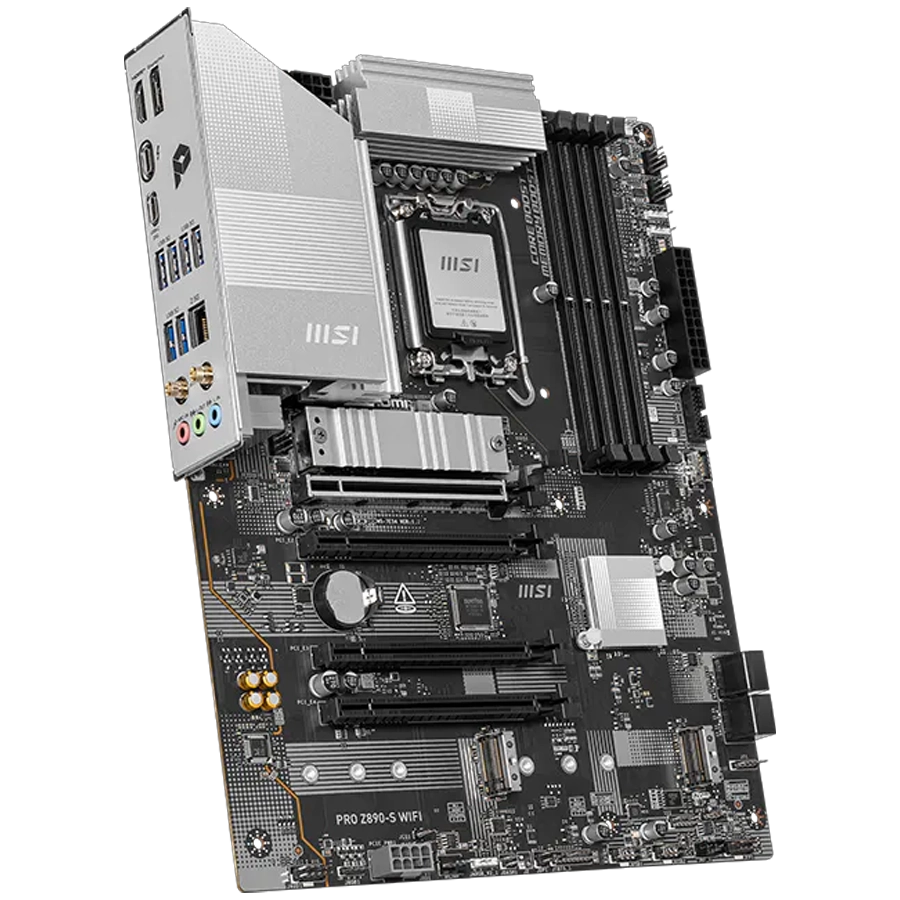

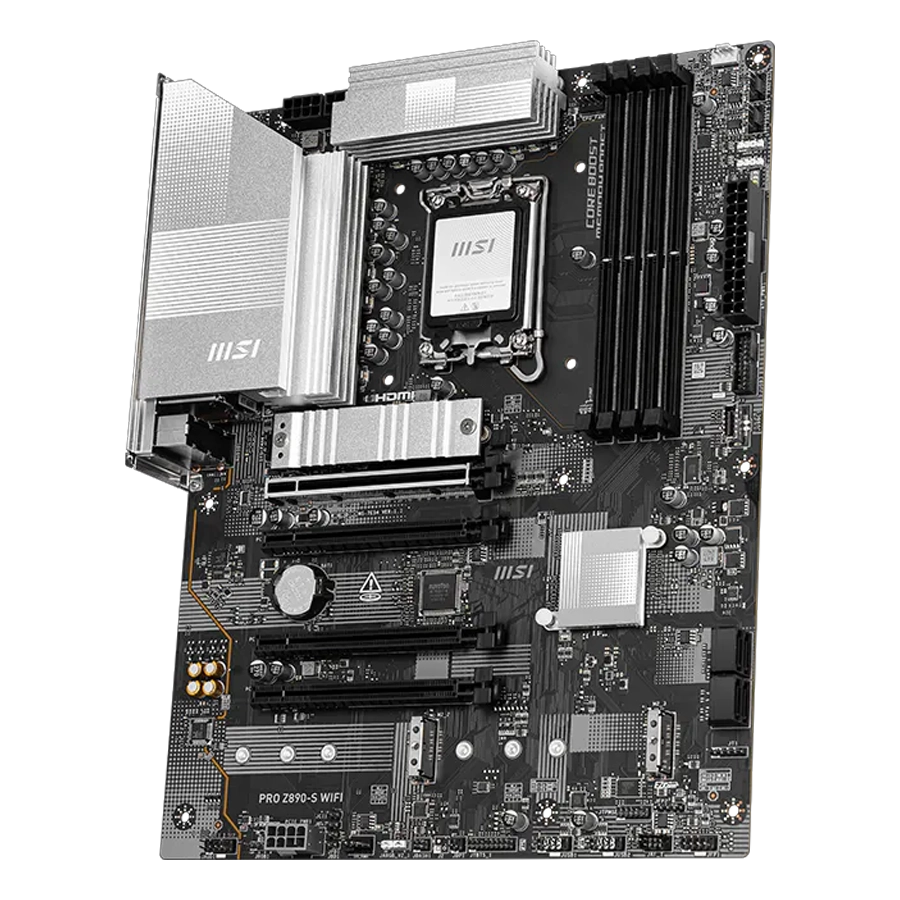

Motherboard MSI PRO Z890-S WIFI Intel LGA1851 ATX DDR5 PCIe 5.0 M.2 Gen5 LAN 2.5G Thunderbolt 4

PRO Z890-S WIFI ofrece un diseño sencillo con un armonioso esquema de color plateado que combina perfectamente tanto con PCs blancos como negros. Está diseñado con muchas características exclusivas de MSI, un verdadero Wi-Fi 7 con EZ Antenna, 2.5G LAN, Thunderbolt 4, PCIe 5.0 M.2, y alimentación suplementaria PCIe, listo para los procesadores Intel® Core™ Ultra.

ELEGANCIA EMPRESARIAL

La serie PRO está pensada para profesionales de todos los ámbitos. La gama ofrece un rendimiento impresionante y alta calidad, con el objetivo de proporcionar a los usuarios una experiencia increíble. Los usuarios que se preocupan por la productividad y la eficiencia pueden contar definitivamente con la serie MSI PRO para ayudarle con la multitarea y aumentar la eficiencia.

Chipset

• INTEL Z890

CPU

• Supports Intel® Core™ Ultra Processors (Series 2)
• LGA 1851

Memoria

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
• Max. overclocking frequency:
• • 1DPC 1R Max speed up to 8800+ MT/s
• • 1DPC 2R Max speed up to 7200+ MT/s
• • 2DPC 1R Max speed up to 6400+ MT/s
• • 2DPC 2R Max speed up to 5600+ MT/s
• Supports Intel® POR Speed and JEDEC Speed
• Supports Memory Overclocking and Intel® XMP 3.0
• Supports Dual-Controller Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM
• The DIMM slots on this motherboard have double-sided latches.

Gráficos

• 1x HDMI™
• Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
• 1x DisplayPort
• Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
• 1x Type-C DisplayPort
• Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Ranuras

• 4x PCI-E x16 slot (Qty)
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)

Audio

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

Almacenamiento

• 3x M.2 (Qty)
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 4x SATA 6G (Qty)
• *Please refer to the manual for M.2 SSD heatsink restrictions.

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

Thunderbolt

• 1x Thunderbolt4 ports (Rear)
• Supports up to 40Gbps transfer rate with Thunderbolt devices
• Supports up to 20Gbps transfer rate with USB4 devices
• Supports up to 10Gbps transfer rate with USB 3.2 devices
• Supports up to 5V/3A,15W power charging
• Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
• Supports up to 8K display

USB

• 4x USB 2.0 (Front)
• 6x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 1x USB 20Gbps Type C (Rear)
• 1x USB 20Gbps Type C (Front)

LAN

• Realtek® 8125D 2.5Gbps LAN

I/O interno

• 1x Thunderbolt5 card connector(JTBT5, support RTD3)
• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x Power Connector(PCIE_PWR 8pin)
• 1x CPU Fan
• 1x Combo Fan (Pump_Sys Fan)
• 4x System Fan
• 1x ARGB+FAN Header (JAF_1)
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Tuning Controller connector(JDASH)
• 3x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 20Gbps Type C ports

LAN inalámbrica & BLUETOOTH

• Intel® Wi-Fi 7
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4**, MLO, 4KQAM
• * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
• ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

Funciones LED

• 4x EZ Debug LED
•

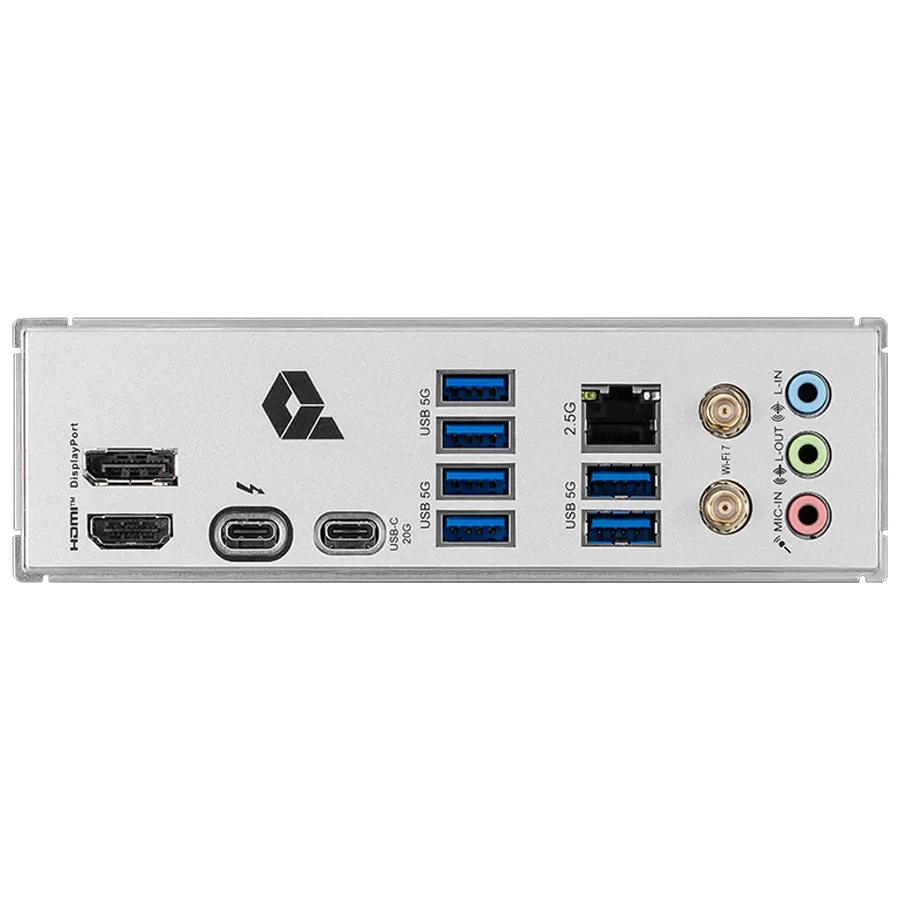

Puertos de panel trasero

• 1x DisplayPort
• 1x HDMI™
• 1x Thunderbolt™ 4 40Gbps (Type-C)
• 1x USB 20Gbps Type-C
• 6x USB 5Gbps Type-A
• 1x 2.5G LAN
• Wi-Fi / Bluetooth
• 3x Audio Connectors

Sistema operativo

• Support for Windows® 11 64-bit

Contenido de la caja

• PRO Z890-S WIFI
• European Union Regulatory Notice
• Quick Installation Guide
• EZ M.2 Clip II Remover
• 3 x EZ M.2 Clip II
• EZ Wi-Fi Antenna
• 2 x SATA Cables

PCB Info

• ATX
• 243.84mmx304.8mm
