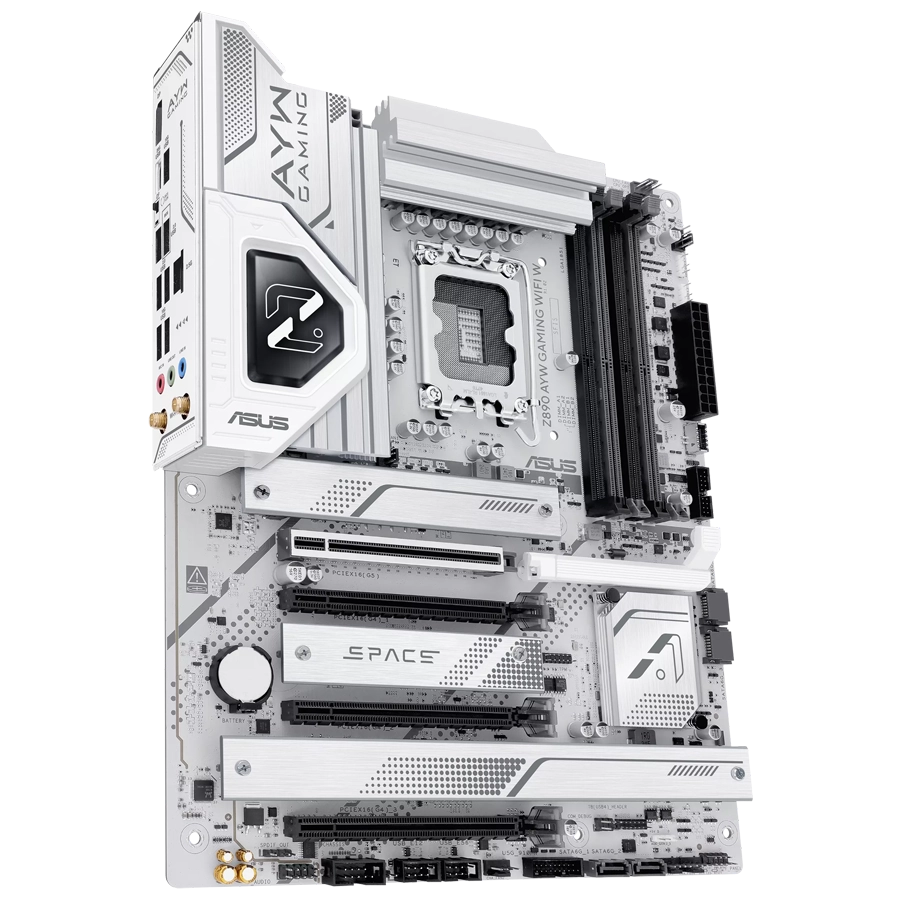

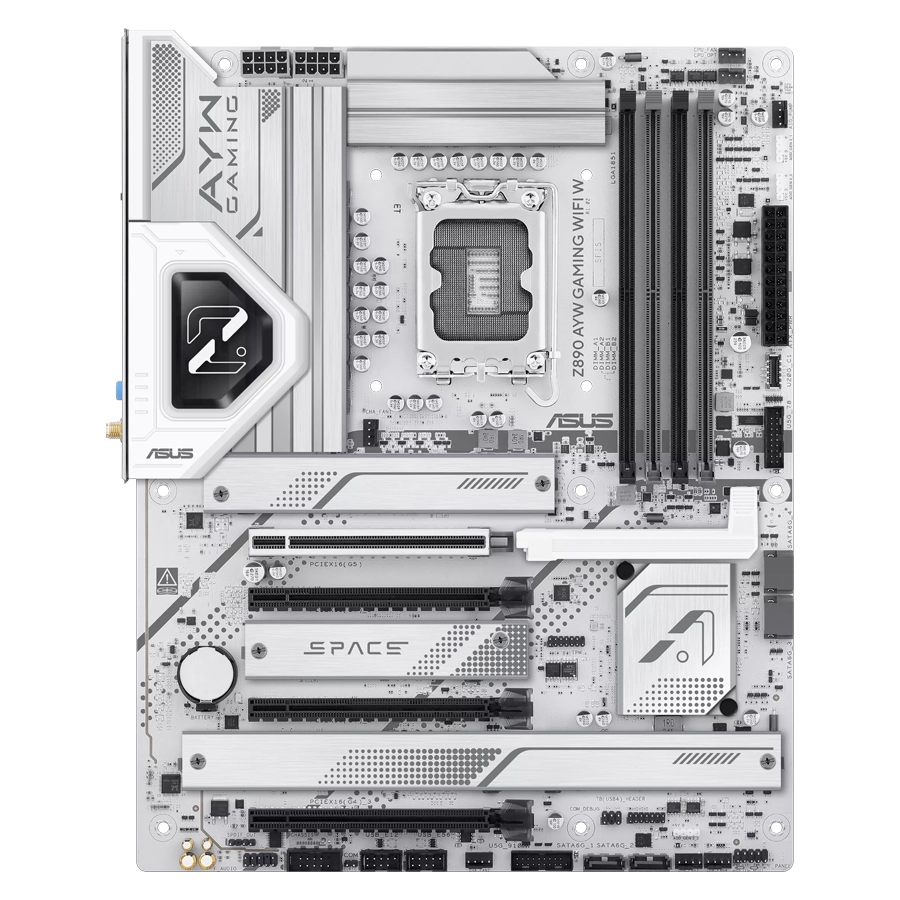

Motherboard ASUS Z890 AYW GAMING WIFI W Intel LGA1851 ATX DDR5 PCIe 5.0 M.2 Gen5 WiFi6 2.5Gb Blanco

CPU

• Supports Intel^® Core™ Ultra Processors(Series 2), LGA1851
• Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**
• ** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel^® Z890 Chipset

Memoria

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
• Dual channel memory architecture
• DIMM Fit
• Supports Intel^® Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III(AEMPIII)
• ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Gráficos

• 1 x DisplayPort**
• 1 x USB 20Gbps port (USB Type-C^®) supports DisplayPort video output***
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• ***Supports max. 4K@120Hz as specified in DisplayPort 1.4.
• ****VGA resolution support depends on processors' or graphic cards' resolution.
• *****While installing the operating system, please ensure that your monitor is connected to the DisplayPort on the back I/O panel or to a discrete graphics card.

Expansion Slots

• Intel^® Core™ Ultra Processors(Series 2)*
• 1 x PCIe 5.0 x16 slot
• Intel^® Z890 Chipset
• 2 x PCIe 4.0 x16 slots (supports x4 mode)
• 1 x PCIe 4.0 x16 slot (supports x1 mode)

Almacenamiento

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel^® Core™ Ultra Processors(Series 2) *
• M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• Intel^® Z890 Chipset
• M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports
• * Intel^® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth^® v5.3*
• * The Bluetooth^® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 8 ports)
• 1 x USB 20Gbps port (1 x USB Type-C^® with DP Alt mode)*
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)***
• Front USB (Total 9 ports)
• 1 x USB 20Gbps connector (supports USB Type-C^® with up to 30W PD/PPS Fast-charge )**
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports***
• * USB Type-C^® power delivery output: max. 5V/3A
• ** USB Type-C^® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
• *** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

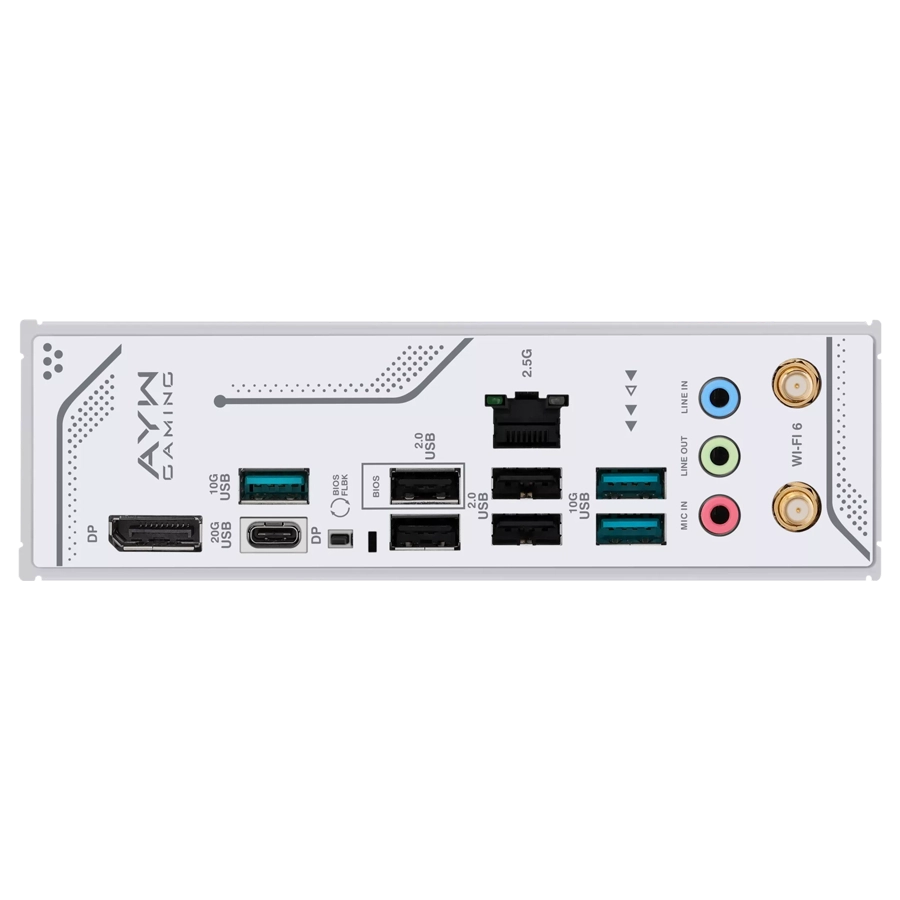

Puertos E/S del panel trasero

• 1 x USB 20Gbps port (1 x USB Type-C^® with DP Alt mode)
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button

Conectores E/S internos

• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• Power Related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors
• Storage Related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 20Gbps connector (supports USB Type-C^® with up to 30W PD/PPS Fast-charge )
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen2 headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin Front Panel System header
• 1 x Thunderbolt™ (USB4^®) Header

Características únicas

• ASUS 5X PROTECTION III
• - DIGI+ VRM (- Digital power design with DrMOS)
• - LANGuard
• - Overvoltage protection
• - SafeSlot
• - Stainless-steel back I/O
• ASUS Q-Design
• - M.2 Q-Latch
• - PCIe Slot Q-Release
• - Q-Dashboard
• - Q-DIMM
• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsinks
• - VRM heatsinks design
• ASUS EZ DIY
• - BIOS FlashBack™ button
• - BIOS FlashBack™ LED
• - ProCool
• - Pre-mounted I/O shield
• Aura Sync
• - Addressable Gen2 headers
• Front Panel USB 20Gbps with PD Fast Charge Support
• - Support: up to 30W fast charging and USB Wattage Watcher
• - Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
• - Compatible with PD3.0 and PPS

Software

• ASUS Exclusive Software
• Armoury Crate
• - Aura Sync
• - Fan Xpert 4 (with AI Cooling II)
• - Power Saving
• ASUS AI Advisor
• ASUS DriverHub
• ASUS GlideX
• USB Wattage Watcher
• TurboV Core
• ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash
• - ASUS UEFI BIOS EZ Mode
• - ASUS MyHotkey
• NPU Boost (Intel K-series Processors only)

BIOS

• 256(128+128) Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS Wi-Fi moving antenna
• 2 x M.2 rubber packages
• 1 x Screw package for M.2 SSD
• Documentation
• 1 x Quick start guide

Sistema operativo

• Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)

Factor de forma

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
