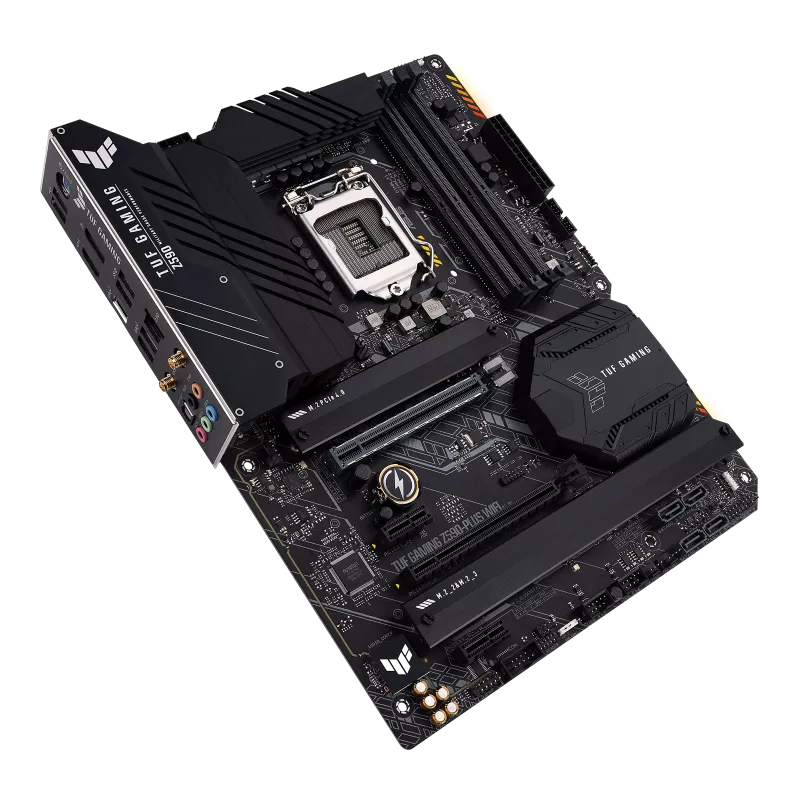

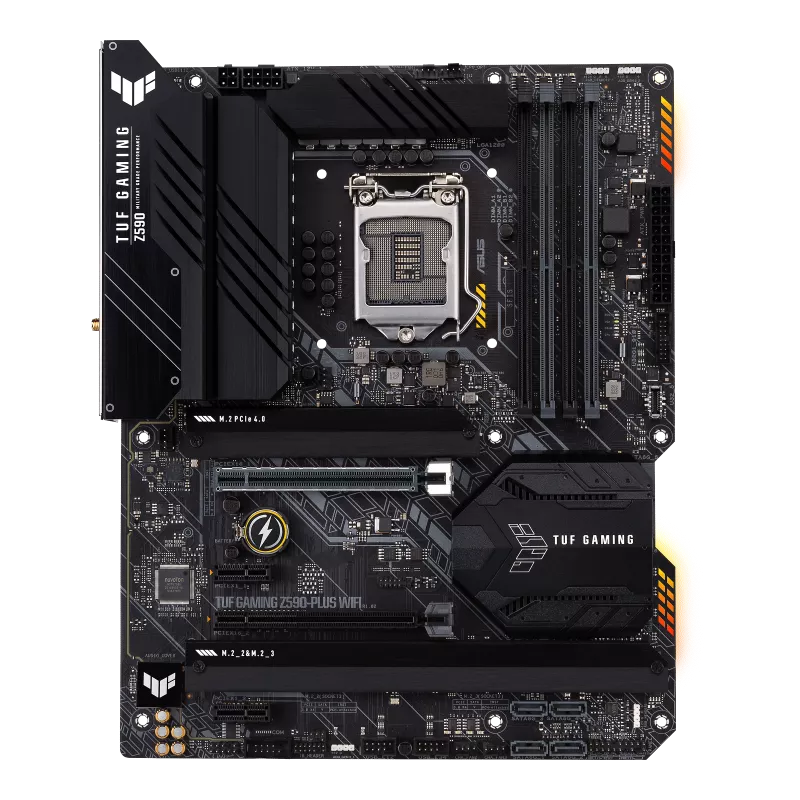

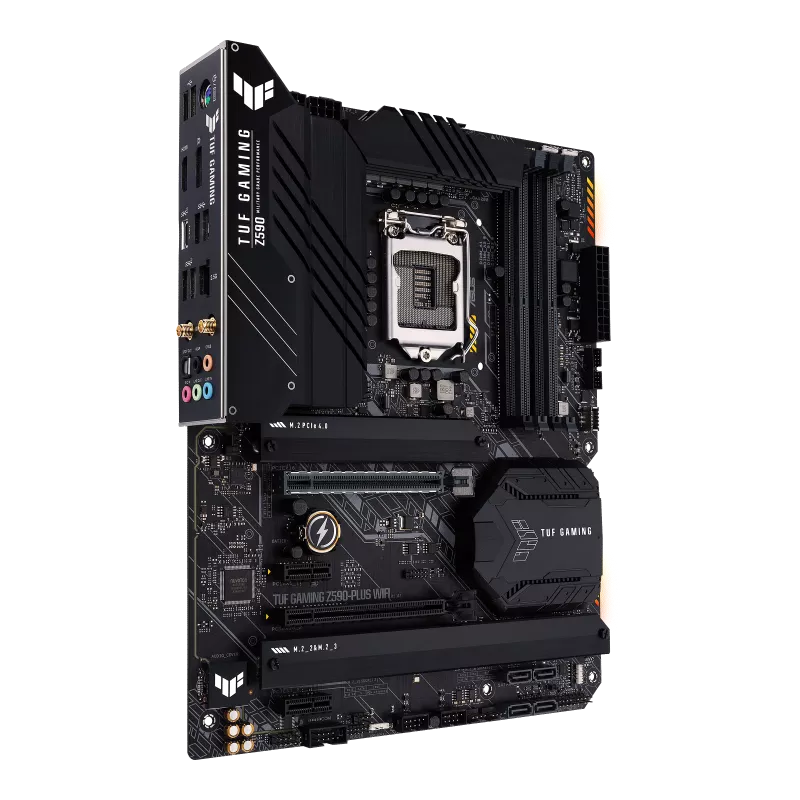

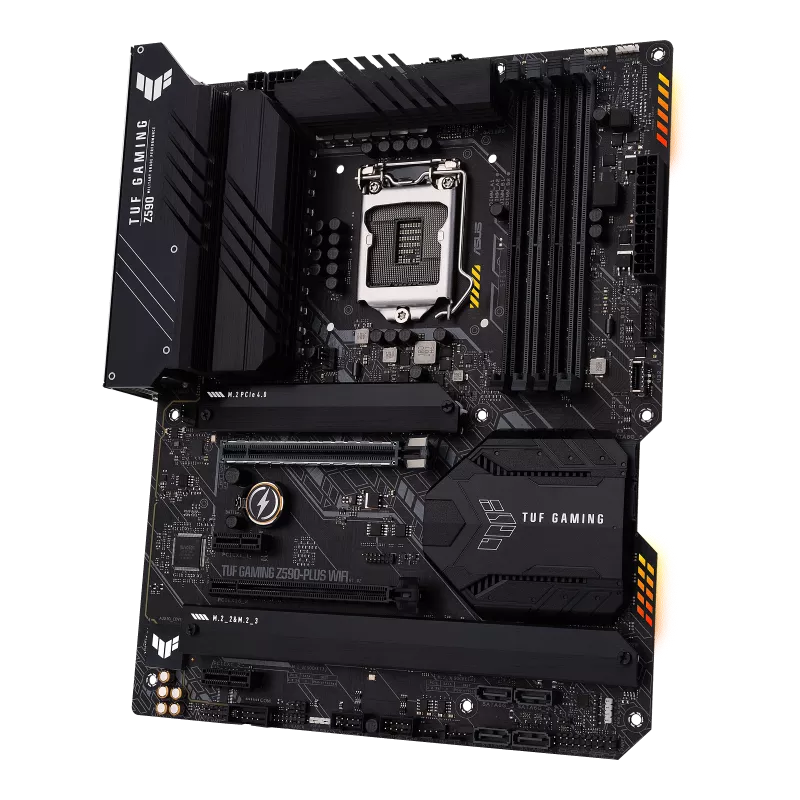

Motherboard ASUS TUF Gaming Z590-PLUS WIFI ATX RGB Intel 11ª 10ª LGA1200

Tarjeta madre Intel® Z590 (LGA 1200) ATX para juegos con 16 fases de poder DrMOS, PCIe® 4.0, tres puertos M.2, Intel® WiFi 6 y Ethernet de 2.5 Gb, HDMI®, DisplayPort™, USB 3.2 Gen 2x2 Tipo-C®, SATA 6 Gbps y USB 3.2 Gen 1 Tipo-C® en el panel frontal, compatibilidad con Thunderbolt™ 4 e iluminación Aura Sync RGB

• Socket Intel® LGA 1200: Listo para procesadores Intel® Core™ de ​​11.ª y 10.ª generación.
• Solución de potencia mejorada: 14 + 2 fases de poder DrMOS, PCB de seis capas, puertos ProCool, componentes TUF de grado militar y Digi + VRM para una máxima durabilidad.
• Refrigeración completa: Disipador de VRM ampliado, disipador sin ventilador de PCH, disipador de M.2, puertos de ventilador híbridos y utilidad Fan Xpert 4.
• Conectividad de próxima generación: PCIe® 4.0, USB 3.2 Gen 2x2 Tipo-C®, puerto del panel frontal para USB 3.2 Gen 1 Tipo-C® y Thunderbolt4 ™
• Diseñado para juegos en línea: Intel® WiFi 6, Ethernet Intel® de 2.5 Gb, TUF LANGuard y tecnología TurboLAN.
• Cancelación de ruido de IA de dos vías: Reduce el ruido de fondo del micrófono y la salida de audio para una comunicación nítida en juegos o videoconferencias.
• Códec Realtek S1200A: Calidad de audio impecable con una relación señal-ruido sin precedentes de 108 dB para salida de línea estéreo y SNR de 103 dB para entrada de línea.

CPU

• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 (Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.)

Memoria

• DDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II
• * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
• * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.

Gráficos

• 1 x DisplayPort 1.4**
• 1 x HDMITM 2.0***
• * Graphics specifications may vary between CPU types.
• ** Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
• *** Only Intel® 11th processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.
• **** VGA resolution support depends on processors' or graphic cards' resolution.

Ranuras de expansión

• Intel® 11th & 10th Gen Processors
• 1 x PCIe 4.0/3.0 x16 slot*
• - Intel® 11th processors support PCIe 4.0 x16
• - Intel®10th processors support PCIe 3.0 x16
• Intel® Z590 Chipset
• 1 x PCIe 3.0 x16 slot (supports x4 mode)
• 2 x PCIe 3.0 x1 slots
• * Supports PCIe bandwidth bifurcation for RAID on CPU function.
• * Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.

Almacenamiento

• Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
• Intel®11th Gen Processors
• M.2_1 slot (Key M), type 2242/2260/2280/22110
• - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
• Intel® Z590 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)***
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)****
• 6 x SATA 6Gb/s ports
• * Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
• ** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
• *** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
• **** M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled.

USB

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features
• Audio Shielding
• Rear optical S/PDIF out port
• Premium Japanese audio capacitors
• Dedicated audio PCB layers
• Audio cover

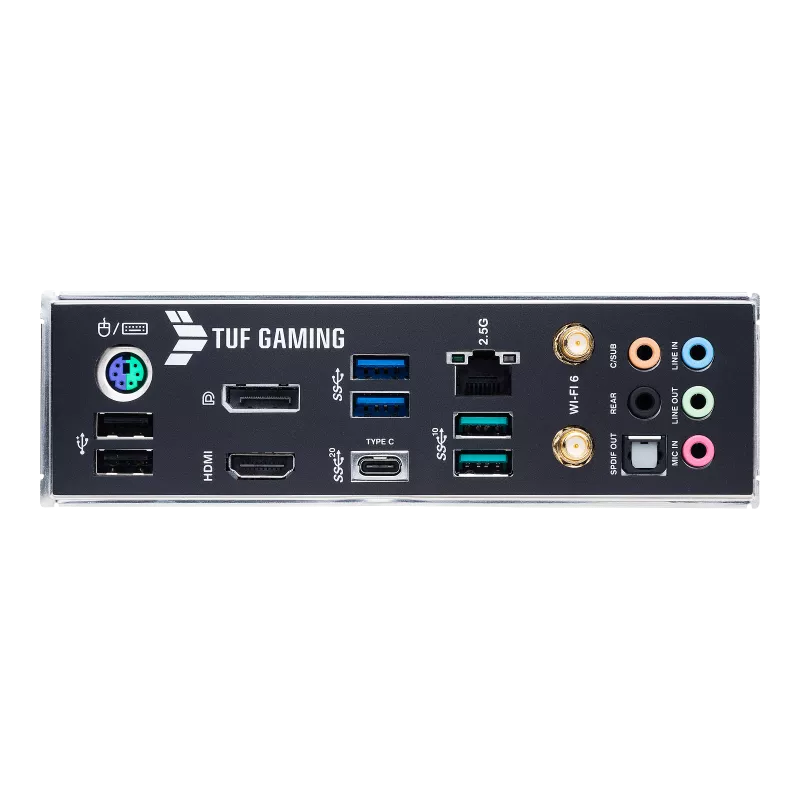

Puertos E/S traseros

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x ASUS Wi-Fi Module
• 1 x Intel® I225-V 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x PS/2 Keyboard/Mouse combo port

Puertos internos

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 2 x AURA Addressable Gen 2 headers
• 2 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thunderbolt™ header

Funciones especiales de ASUS

• ASUS TUF PROTECTION
• DIGI+ VRM (- Digital power design with DrMOS)
• Enhanced DRAM Overcurrent Protection
• TUF LANGuard
• Overvoltage Protection
• ASUS Q-Design
• M.2 Q-Latch
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
• ASUS Thermal Solution
• M.2 heatsink
• VRM heatsink design
• ASUS EZ DIY
• ProCool
• Pre-mounted I/O shield
• SafeSlot
• AURA Sync
• AURA RGB headers
• Addressable Gen 2 RGB headers

Software

• ASUS Exclusive Software
• Armoury Crate
• - AURA Creator
• - AURA Sync
• - Two-Way AI Noise Cancelation
• AI Suite 3
• - Performance And Power Saving Utility
• TurboV EVO
• EPU
• Digi+ VRM
• Fan Xpert 4
• - EZ update
• TUF GAMING CPU-Z
• AI Charger
• ASUS Turbo LAN
• DAEMON Tools
• DTS Custom for GAMING Headsets
• MyASUS
• Norton Anti-virus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS Wi-Fi moving antenna
• 2 x M.2 Rubber Packages
• 1 x M.2 SSD screw package
• 1 x TUF Gaming sticker
• Installation Media
• 1 x Support DVD
• Documentation
• 1 x TUF Certification card
• 1 x User manual
