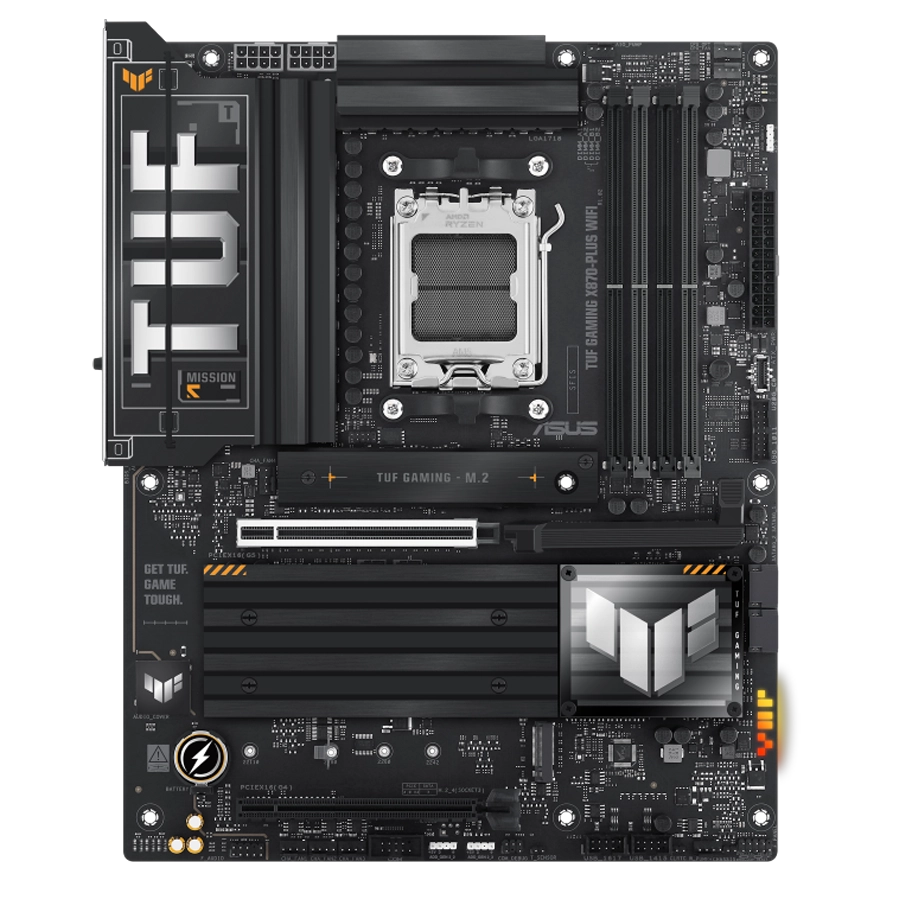

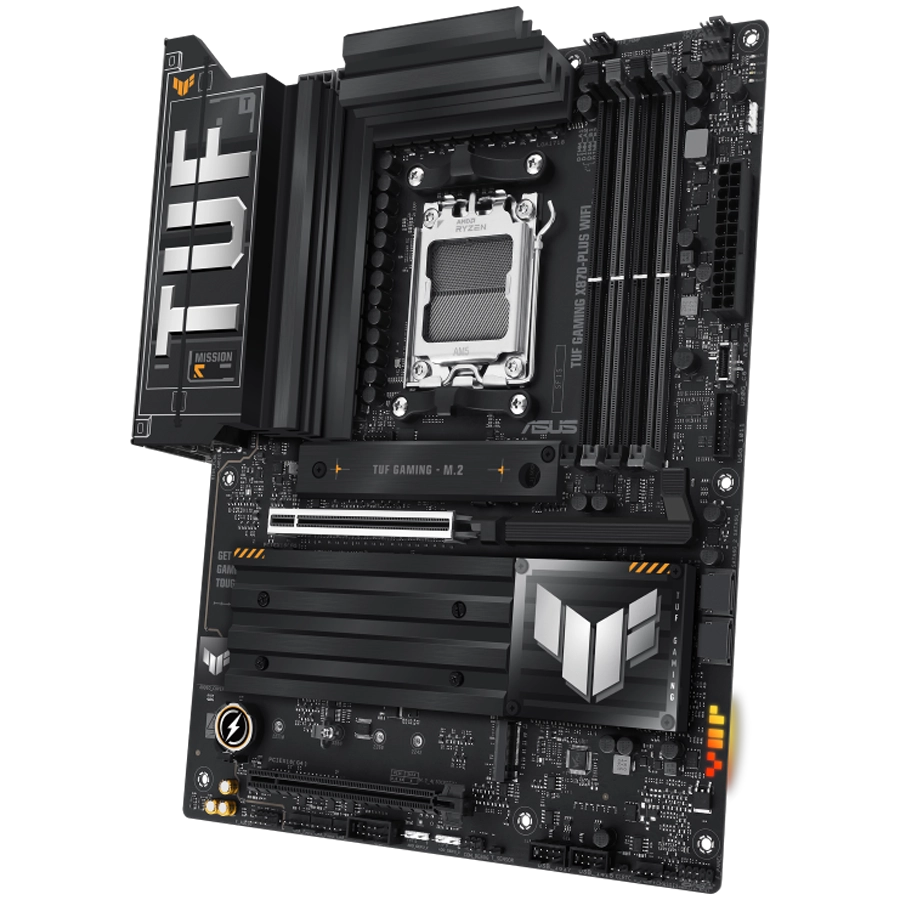

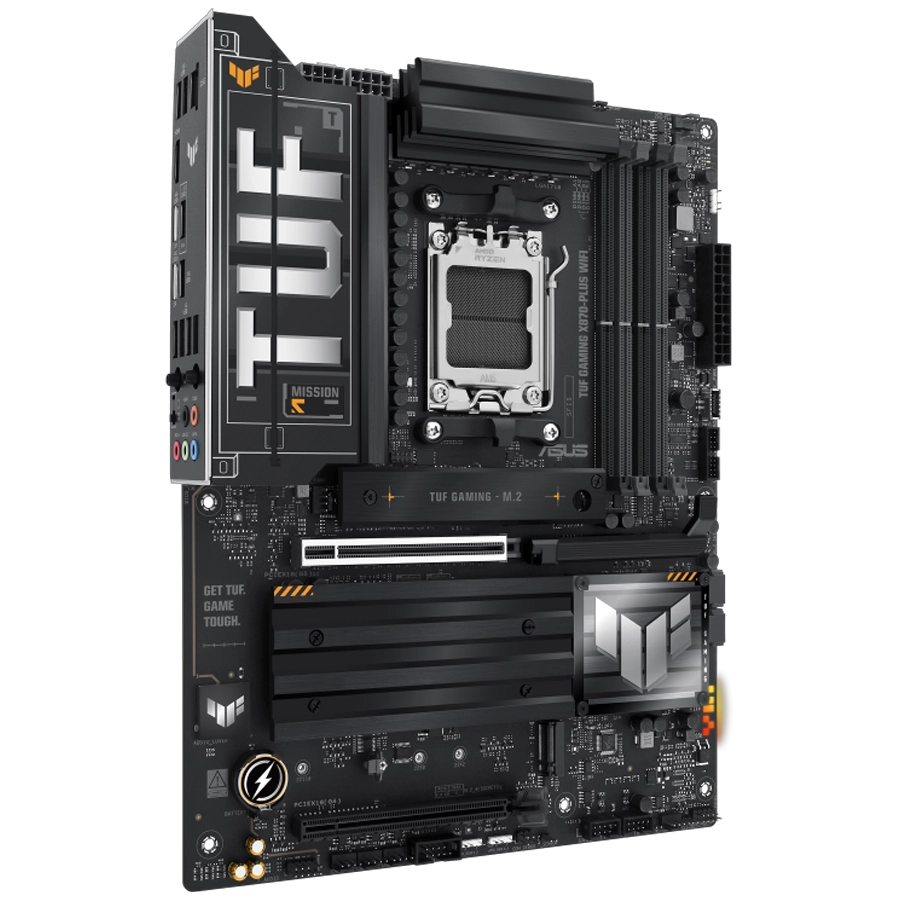

Motherboard ASUS TUF GAMING X870-PLUS WIFI AMD AM5 ATX DDR5 PCIe 5.0 M.2 Gen5 LAN 2.5Gb WiFi 7

ASUS TUF GAMING X870-PLUS WIFI toma todos los elementos esenciales de los últimos procesadores AMD Ryzen™ y los combina con funciones listas para jugar y una durabilidad probada. Diseñada con componentes de grado militar, una solución de alimentación mejorada y un completo sistema de refrigeración, esta motherboard supera las expectativas con un rendimiento sólido como una roca y estable para juegos maratonianos. Las tarjetas madre TUF GAMING también se someten a rigurosas pruebas de resistencia para garantizar que pueden soportar condiciones en las que otras podrían fallar. Esta plataforma ofrece la potencia y la conectividad que exigen las aplicaciones informáticas avanzadas de IA.

CPU

• AMD Socket AM5 for AMD Ryzen^™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD X870 Chipset

Memoria

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 8000+MT/s(OC) with Ryzen^™ 9000 & 8000 & 7000 Series Processors
• ECC and Non-ECC, Un-buffered DIMM*
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO^™)
• ASUS Enhanced Memory Profile (AEMP)
• * Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Gráficos

• 1 x HDMI^™ port**
• 2 x USB4^® (40Gbps) ports support USB Type-C^® display outputs***
• * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• ** Supports 4K@60Hz as specified in HDMI 2.1.
• *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
• **** VGA resolution support depends on processors' or graphic cards' resolution.

Ranuras de expansión

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
• 1 x PCIe 5.0 x16 slot (supports x16 mode)**
• AMD Ryzen™ 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)***
• AMD X870 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)****
• ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
• *** Specifications vary by CPU types.
• **** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.

Almacenamiento

• Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
• AMD Ryzen™ 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot not support
• AMD X870 Chipset
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
• 2 x SATA 6Gb/s ports
• * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
• ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
• *** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth

• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth^® v5.4***
• *Wi-Fi features may vary depending on the operating system
• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
• ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• *** The Bluetooth^® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 10 ports)
• 2 x USB4^® (40Gbps) ports (2 x USB Type-C^®)*
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 20Gbps connector (supports USB Type-C^® with up to 30W PD Fast-charge)**
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• * USB Type-C^® power delivery output: max. 5V/3A
• ** USB Type-C^® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A.

Audio

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
• - Impedance sense for front and rear headphone outputs
• - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• - Supports up to 32-Bit/192 kHz playback*
• Audio Features
• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers
• - Audio cover
• - Unique de-pop circuit
• * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

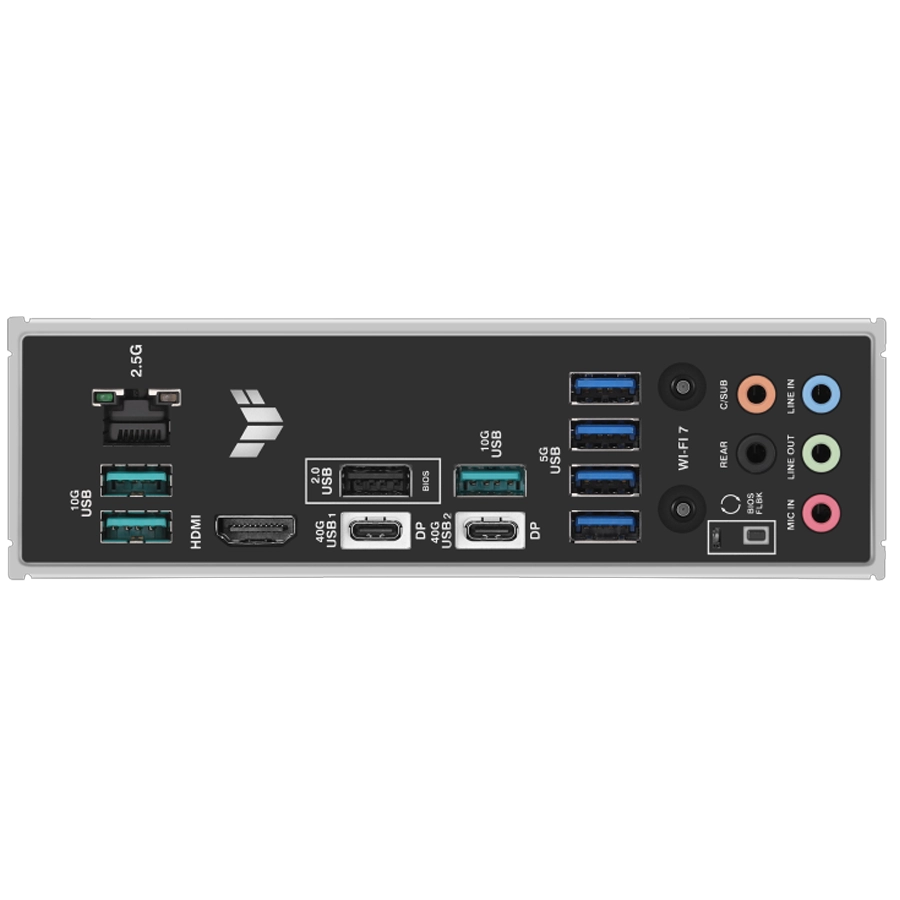

Puertos E/S del panel trasero

• 2 x USB4^® (40Gbps) (2 x USB Type-C^®) ports
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack™ button

Conectores E/S internos

• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ header
• Power Related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors
• Storage Related
• 4 x M.2 slots (Key M)
• 2 x SATA 6Gb/s ports
• USB
• 1 x USB 20Gbps connector (supports USB Type-C^® with up to 30W PD Fast-charge)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header

Funciones especiales

• ASUS TUF PROTECTION
• - DIGI+ VRM (- Digital power design with SPS)
• - ESD Guards
• - TUF LANGuard
• - Overvoltage protection
• - SafeSlot
• - Stainless-steel back I/O
• ASUS Q-Design
• - M.2 Q-Latch
• - PCIe Slot Q-Release
• - Q-Antenna
• - Q-Dashboard
• - Q-DIMM
• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsinks
• - VRM heatsink design
• ASUS EZ DIY
• - BIOS FlashBack™ button
• - BIOS FlashBack™ LED
• - ProCool
• - Pre-mounted I/O shield
• - SafeDIMM
• Aura Sync
• - Addressable Gen 2 headers
• Front Panel USB 20Gbps with PD Fast Charge Support
• - Support: up to 30W fast charging and USB Wattage Watcher
• - Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A
• - Compatible with PD3.0

Software

• ASUS Exclusive Software
• Armoury Crate
• - Aura Creator
• - Aura Sync
• - Fan Xpert 4 (with AI Cooling II)
• - Power Saving
• ASUS DriverHub
• ASUS GlideX
• USB Wattage Watcher
• TurboV Core
• TUF GAMING CPU-Z
• DTS Audio Processing
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• AI Overclocking Guide
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode
• - ASUS MyHotkey

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous

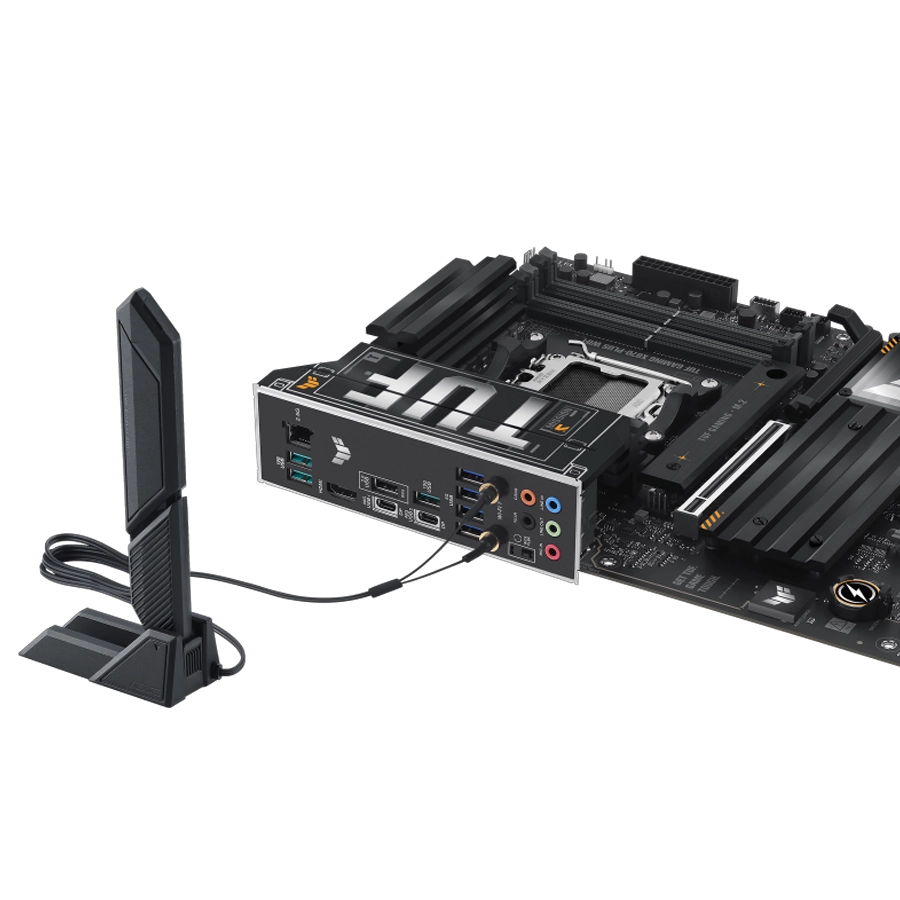

• 1 x ASUS WiFi Q-Antenna
• 2 x M.2 rubber packages
• 1 x Screw package for M.2 SSD
• 1 x TUF GAMING sticker
• Documentation
• 1 x Quick start guide

Sistema operativo

• Windows 11

Factor de forma

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
