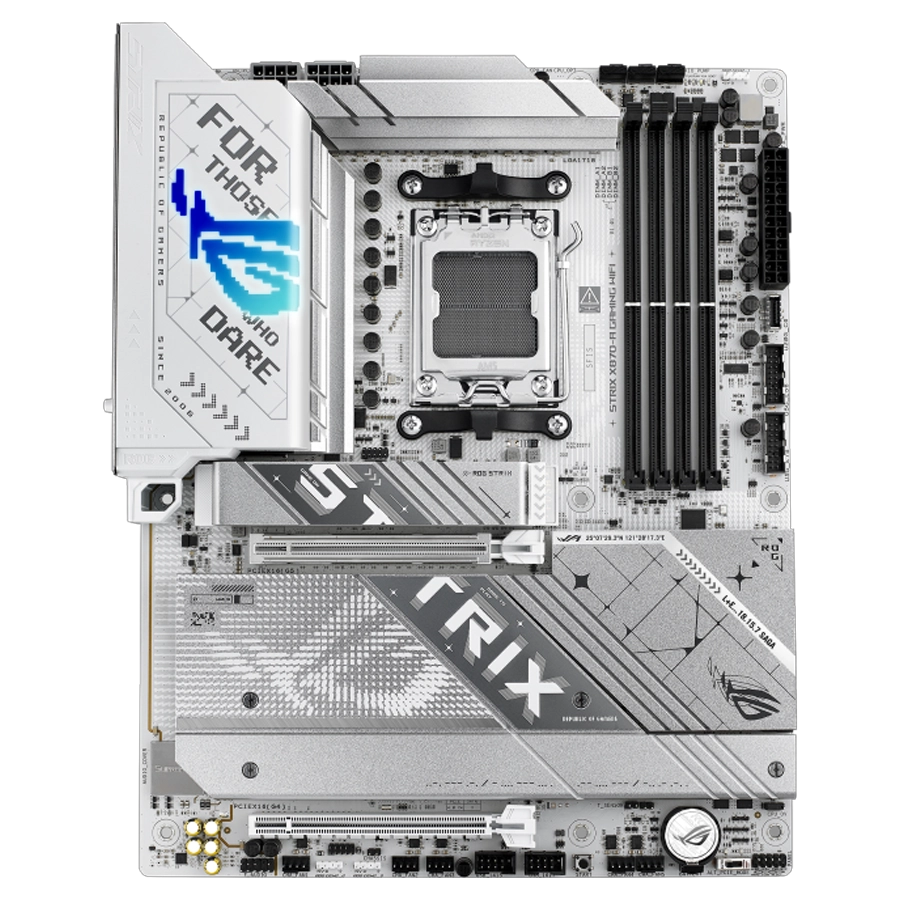

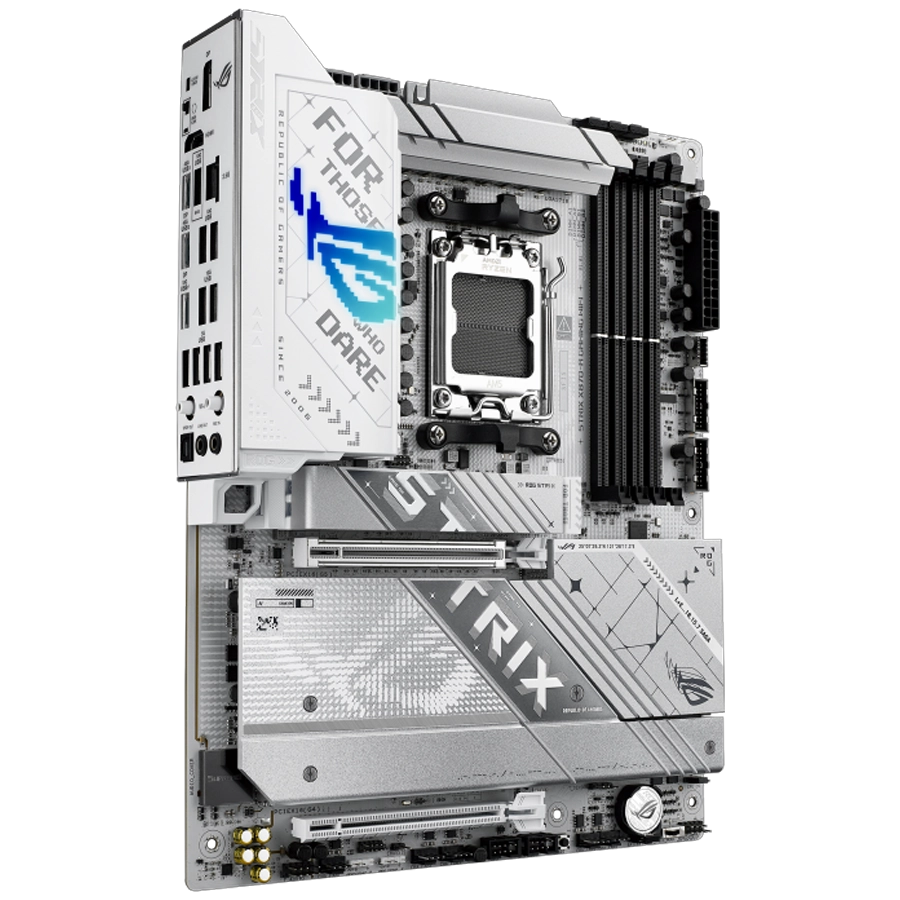

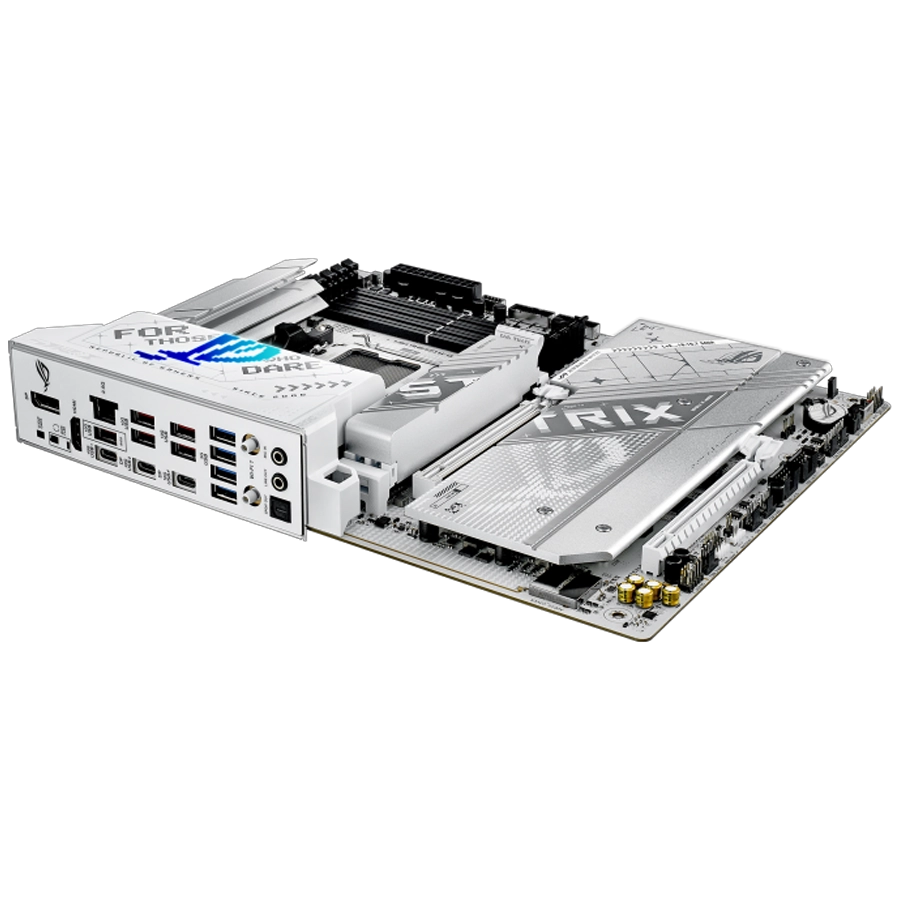

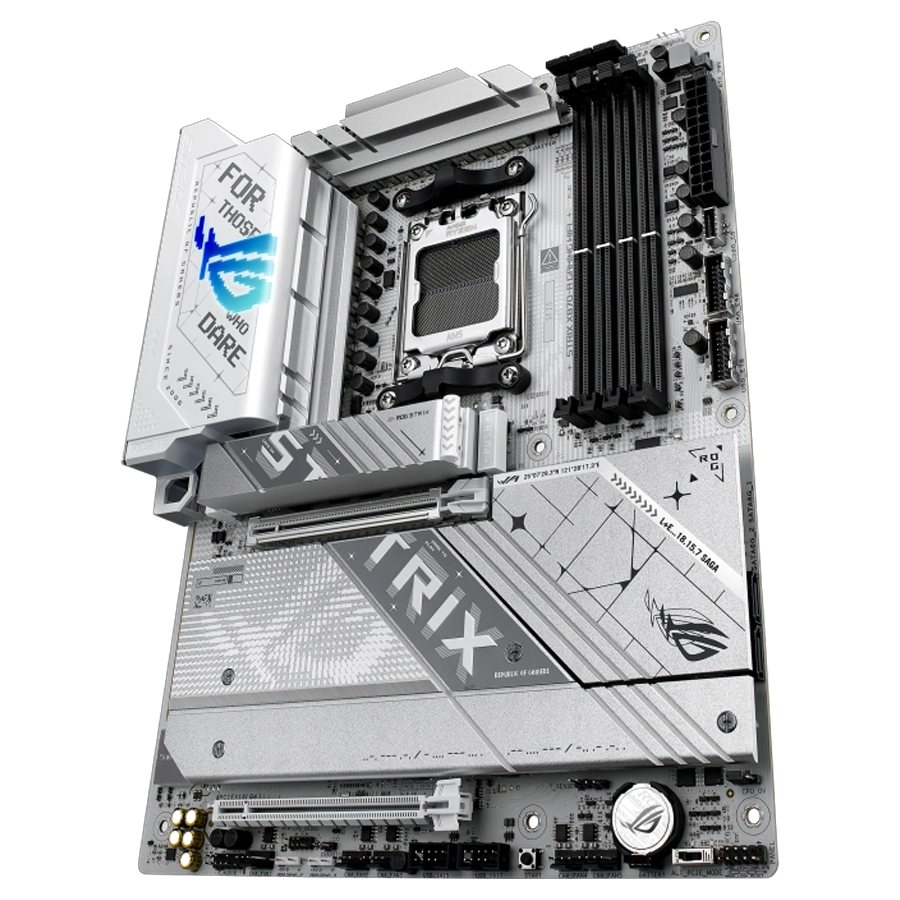

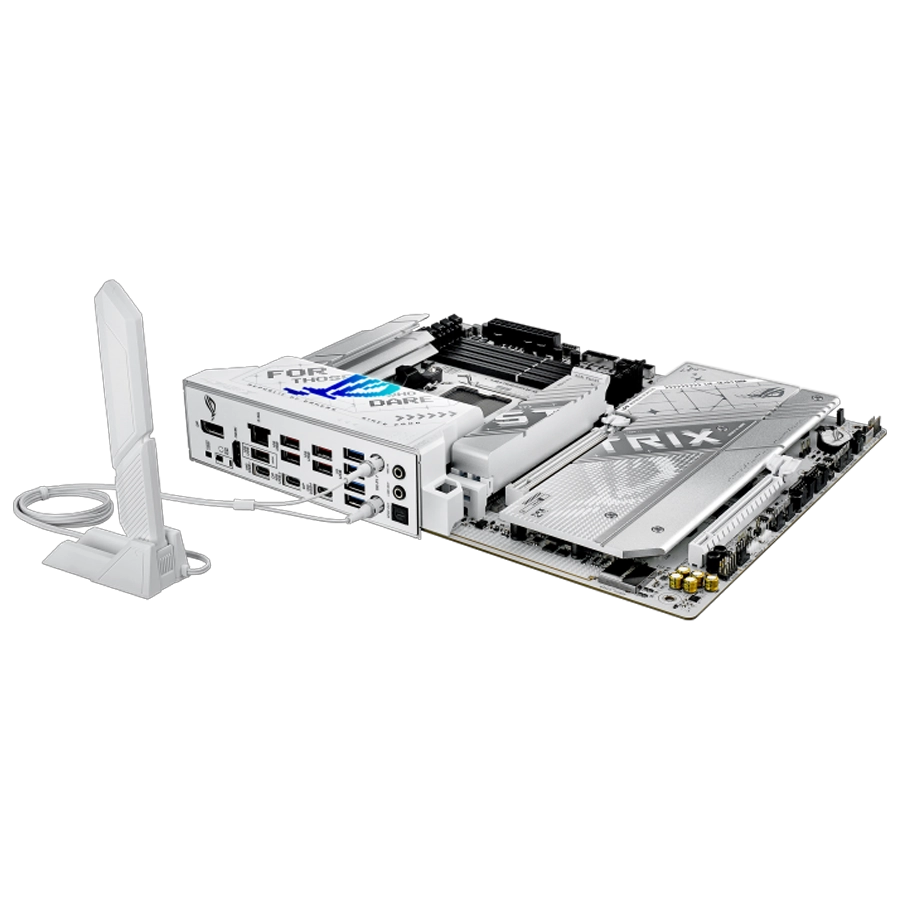

Motherboard ASUS ROG STRIX X870-A GAMING WIFI AMD AM5 ATX DDR5 PCIe 5.0 M.2 Gen5 LAN 2.5Gb WiFi 7

Eleva tu construcción con la ROG Strix X870-A Gaming WiFi. Con una elegante PCB blanca y compatibilidad con los procesadores AMD Ryzen™ Serie 9000, esta motherboard ofrece la potencia y la conectividad necesarias para las aplicaciones avanzadas de IA. Con soporte DDR5, capacidades PCIe 5.0 completas, puertos USB4® duales y WiFi 7, es la mezcla definitiva de estilo y rendimiento.

INNEGABLEMENTE ROG STRIX

La ROG Strix X870-A destaca por su llamativo PCB blanco, que ofrece una estética fresca y moderna que complementa a la perfección casi cualquier sistema. Los disipadores metálicos a juego realzan su aspecto limpio y nítido, mientras que la sutil iluminación RGB de la cubierta de E/S te permite mantener una apariencia elegante y discreta o mostrar un diseño audaz y luminoso.

SUPERA A LA COMPETENCIA

Las placas base ROG Strix incorporan la tecnología ASUS Aura, que permite un control total de la iluminación y una gran variedad de preajustes tanto para los LED RGB integrados en la placa como para accesorios de terceros. Los efectos se pueden sincronizar fácilmente entre tarjetas gráficas, monitores, teclados y ratones ROG compatibles para dar a tu configuración un aspecto unificado.

CONSTRUYE EL PC MÁS AVANZADO PARA JUGAR Y CREAR

Cuando sólo sirve lo más rápido, la motherboard Strix X870E/X870 cumple. Con USB 4.0 a bordo junto con sólidas capacidades de overclocking¹, que incluyen compatibilidad más rápida con memoria DDR5 de doble canal, tecnología AMD EXPO™ y compatibilidad con PCIe® 5.0 tanto para gráficos como para NVMe, podrás jugar a los juegos más exigentes y entregar tus mayores proyectos con el revolucionario rendimiento de una motherboard AMD serie X800 y los procesadores AMD Ryzen™ series 9000, 8000 y 7000.

CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD X870

Memoria

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 8000+MT/s(OC) with Ryzen™
• 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory*"
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Gráficos

• 1 x DisplayPort**
• 1 x HDMI™ port***
• 2 x USB4^® (40Gbps) ports support USB Type-C^® display outputs****
• * Please refer to AMD CPU specifications.
• ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.
• ****Supports max. 4K@60Hz as specified in DisplayPort 1.4a
• **** VGA resolution support depends on processors' or graphic cards' resolution.

Ranuras de expansión

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
• 1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
• AMD X870 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• ** Specifications vary by CPU types.

Almacenamiento

• Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
• AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)**
• AMD Ryzen™ 8000 Series Desktop Processors**
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
• M.2_2 slot (Key M), type 2280/22110 (Not supports)****
• AMD X870 Chipset
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
• M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• 2 x SATA 6Gb/s ports
• * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
• ** M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
• *** M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be disabled.
• **** M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors.

Ethernet

• 1 x Intel^® 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth^® v5.4***
• *Wi-Fi features may vary depending on the operating system
• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
• For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
• ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• *** The Bluetooth^® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 12 ports)
• 2 x USB4^® (40Gbps) ports(2 x USB Type-C^® with DP Alt mode)*
• 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C^® with up to 30W PD Fast-charge)**
• 4 x USB 5Gbps ports (4 x Type-A)
• Front USB (Total 9 ports)
• 1 x USB 20Gbps connector (supports USB Type-C^®)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• * USB Type-C^® power delivery output: max. 5V/3A
• ** USB Type-C^® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
• - Impedance sense for front and rear headphone outputs
• - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• - Supports up to 32-Bit/384 kHz playback on front panel"
• Audio Features
• - SupremeFX Shielding Technology
• - Savitech SV3H712 AMP
• - Rear optical S/PDIF out port
• - Premium audio capacitors
• - Audio cover
• * The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

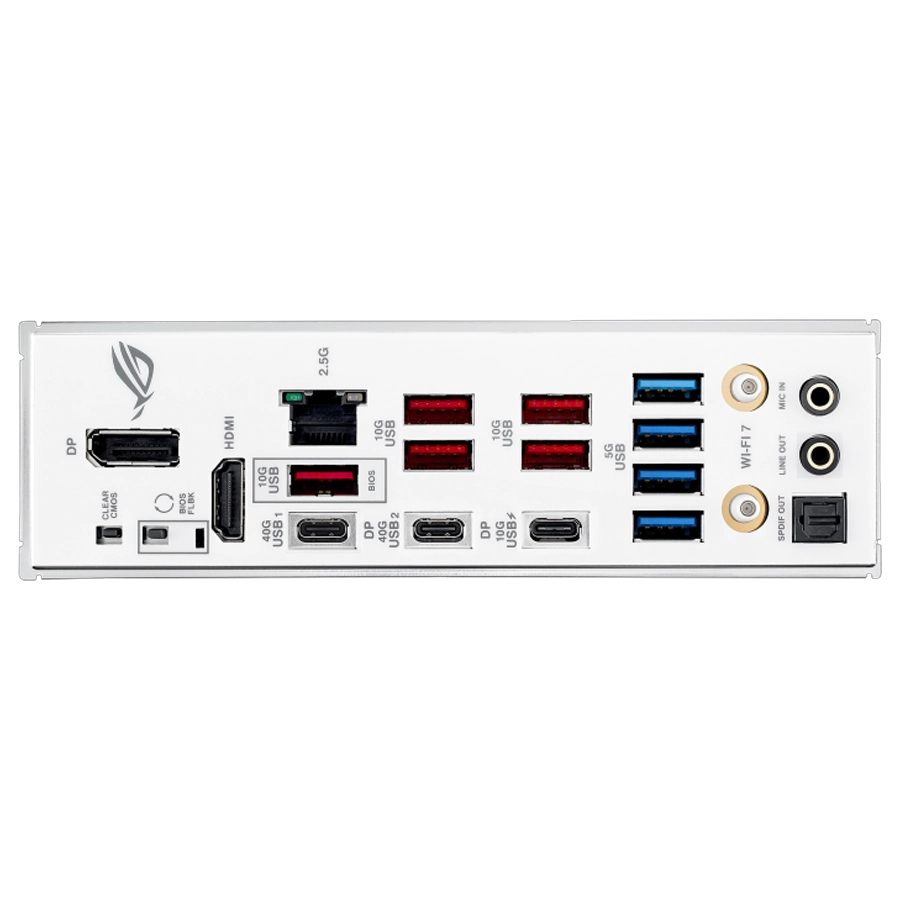

Puertos E/S del panel trasero

• 2 x USB4^® (40Gbps) ports (2 x USB Type-C^® with DP Alt mode)
• 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C^® with up to 30W PD Fast-charge)**
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel^® 2.5Gb Ethernet
• 2 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Conectores E/S internos

• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers
• Power Related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors
• Storage Related
• 4 x M.2 slots (Key M)
• 2 x SATA 6Gb/s ports
• USB
• 1 x USB 20Gbps connector (supports USB Type-C^®)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Alteration PCIe mode switch
• 1 x Chassis Intrusion header
• 1 x CPU Over voltage jumper
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x Start button
• 1 x 10-1 pin System Panel header
• 1 x Thermal Sensor header

Funciones especiales

• Extreme Engine Digi+
• - 5K Black metallic capacitors
• ASUS Q-Design
• - M.2 Q-Latch
• - M.2 Q-Release
• - M.2 Q-Slide
• - PCIe Slot Q-Release Slim (with PCIe SafeSlot)
• - Q-Antenna
• - Q-Dashboard
• - Q-DIMM
• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink backplate
• - M.2 heatsink
• ASUS EZ DIY
• - BIOS FlashBack™ button
• - BIOS FlashBack™ LED
• - Clear CMOS button
• - ProCool II
• - Pre-mounted I/O shield
• - SafeSlot
• - SafeDIMM
• Aura Sync
• - Addressable Gen 2 headers

Software

• ROG Exclusive Software
• - ROG CPU-Z
• - Dolby Atmos
• ASUS Exclusive Software
• Armoury Crate
• - AIDA64 Extreme (60 days free trial)
• - Aura Creator
• - Aura Sync
• - Fan Xpert 4 (with AI Cooling II)
• - GameFirst
• - HWiNFO
• - Power Saving
• ASUS Driver Hub
• ASUS GlideX
• USB Wattage Watcher
• TurboV Core
• Adobe Creative Cloud (Free Trial)
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• AI Overclocking Guide
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode
• - ASUS MyHotkey
• Dynamic OC Switcher
• FlexKey

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package
• 1 x M.2 Q-Slide package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 4 x M.2 rubber packages
• Documentation
• 1 x Quick start guide

Sistema operativo

• Windows 11

Factor de forma

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
