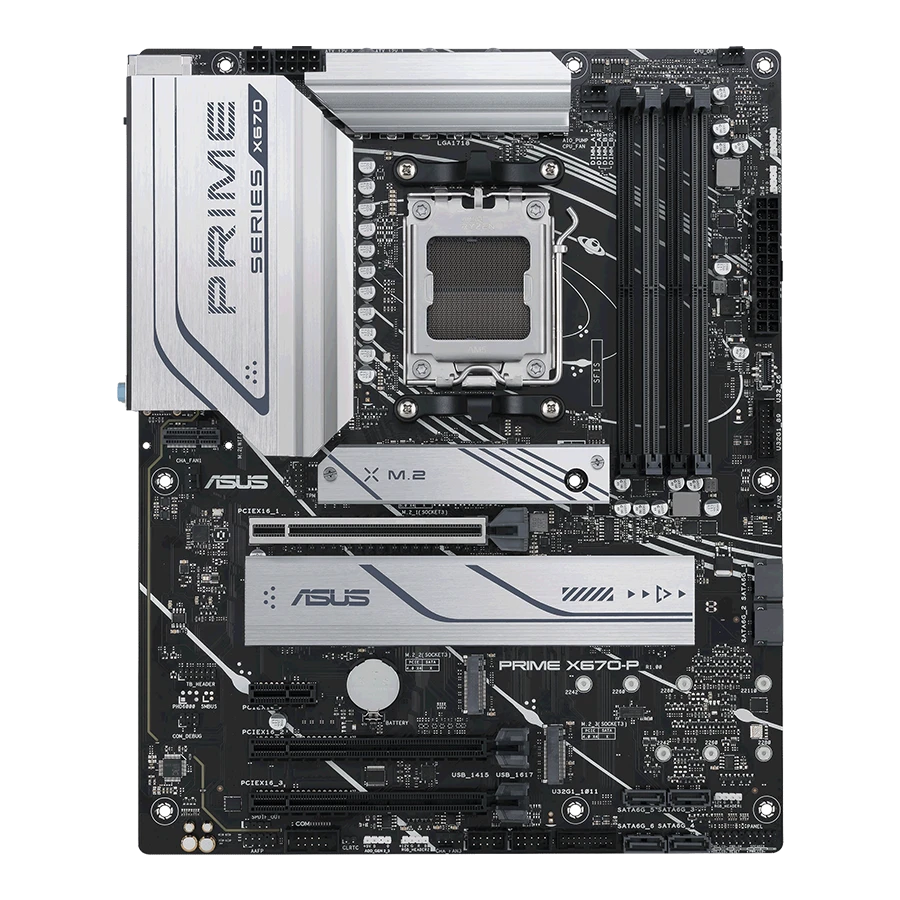

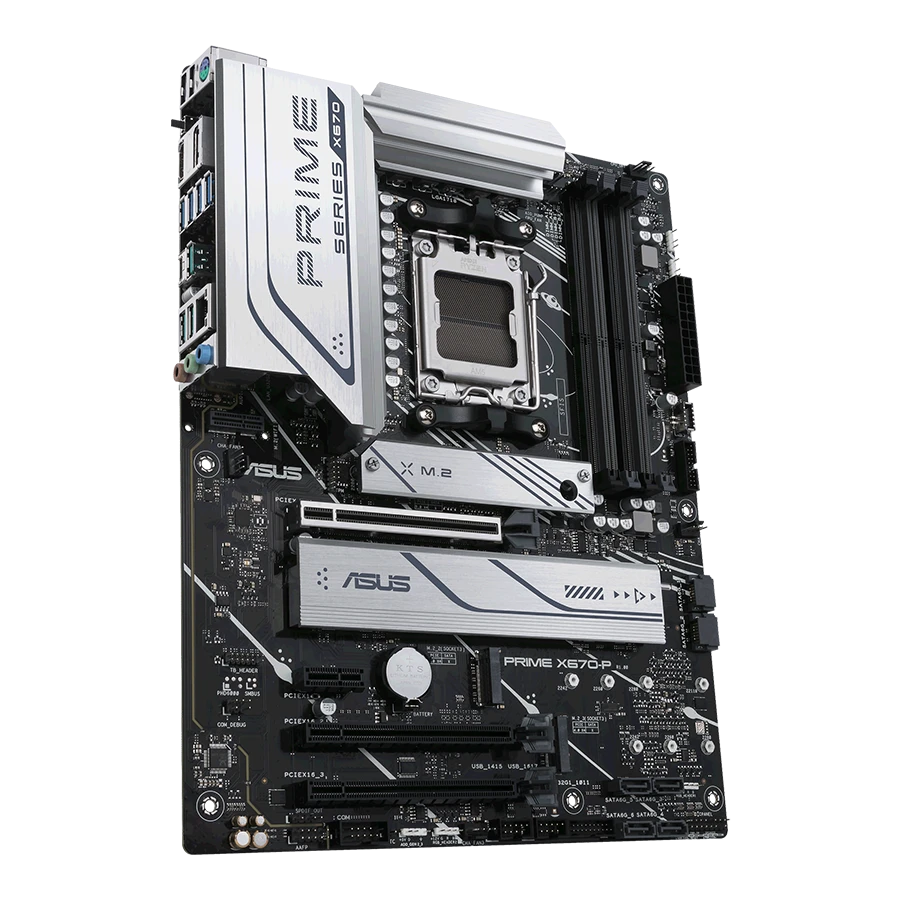

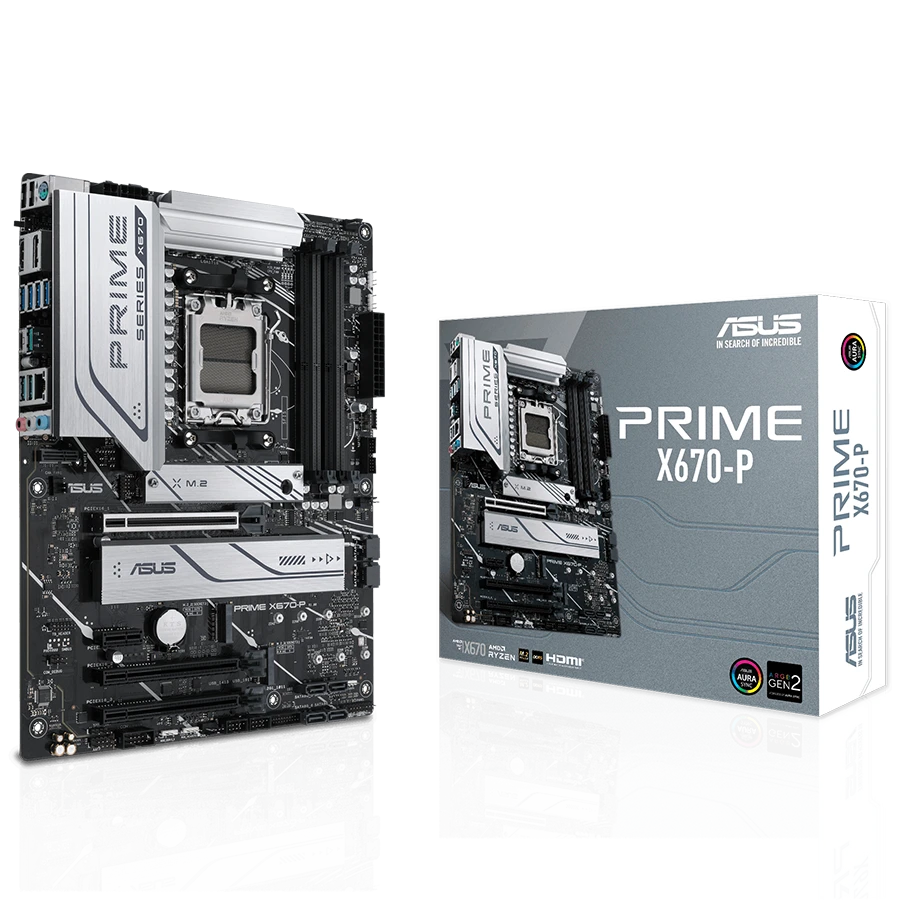

Motherboard ASUS PRIME X670-P ATX DDR5 PCIe 4.0 M.2 PCIe 5.0 AMD AM5

Motherboard AMD X670 (Ryzen AM5) ATX con soporte de almacenamiento PCIe 5.0, tres puertos M.2, 12(60A)+2(60A)+1, DDR5, HDMI®, DisplayPort, 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, USB 3.2 Gen 1 Type-C® frontal, BIOS FlashBack™, SATA 6 Gbps, USB4® e iluminación Aura Sync RGB

• Socket AMD AM5: Listo para procesadores de escritorio AMD Ryzen™.
• Solución de alimentación mejorada: 12(60A)+2(60A)+1 fases de poder, PCB de 6 capas, conectores ProCool, chokes de aleación y condensadores duraderos para un suministro de energía estable.
• Conectividad ultrarrápida: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, USB 3.2 Gen 1 Type-C® para panel frontal, compatibilidad con USB4®.
• ASUS OptiMem II: Enrutamiento cuidadoso de trazas y vías, además de optimizaciones de la capa base para preservar la integridad de la señal para mejorar el overclocking de la memoria.
• Enfriamiento integral: disipadores de calor VRM grandes, disipador de calor M.2, disipador de calor de chipset pasivo, puertos de ventilador híbrido y Fan Xpert 4 con AI Cooling II.
• Efecto Outshine RGB Aura: Diseño elegante de iluminación, puertos direccionables Gen 2 y compatibilidad con puertos Aura RGB.

CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

Chipset

• AMD X670 Chipset

Memoria

• 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• OptiMem II
• * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Gráficos

• 1 x DisplayPort**
• 1 x HDMI® port***
• * Graphics specifications may vary between CPU types.
• ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI® 2.1.

Ranuras de expansión

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x16 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
• AMD X670 Chipset
• 2 x PCIe 4.0 x16 slots (support x4 mode)
• 1 x PCIe 3.0 x1 slot***
• ** Specifications vary by CPU types.
• *** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.

Almacenamiento

• Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**
• AMD X670 Chipset
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 6 x SATA 6Gb/s ports***
• * AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
• ** Specifications vary by CPU types.
• *** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.

Ethernet

• 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

• V-M.2 slot only (Key E, PCIe)*
• * Wi-Fi module is sold separately.

USB

• Rear USB (Total 10 ports)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (3 x Type-A)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 9 ports)
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• * USB Type-C® power delivery output: max. 5V/3A

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Puertos de E/S del panel posterior

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (3 x Type-A)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x V-M.2 slot (Key E)
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button
• 1 x PS/2 Keyboard/Mouse combo port

Conectores de E/S internos

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 2 x Aura RGB headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1pin)
• 1 x 20-5 pin System Panel header
• 1 x Thunderbolt™ (USB4®) header

Características especiales

• ASUS 5X PROTECTION III
• - DIGI+ VRM (- Digital power design with DrMOS)
• - ESD Guards
• - LANGuard
• - Overvoltage Protection
• - Safeslot Core+
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - M.2 Q-Latch
• - Q-DIMM
• - Q-LED Core
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink
• - VRM heatsink design
• ASUS EZ DIY
• - BIOS FlashBack™ button
• - BIOS FlashBack™ LED
• - ProCool
• Aura Sync
• - Aura RGB headers
• - Addressable Gen 2 headers

Funciones de software

• ASUS Exclusive Software
• Armoury Crate
• - Aura Creator
• - Aura Sync
• - Fan Xpert 4 with AI Cooling II
• - Power Saving
• AI Suite 3
• - TurboV EVO
• - DIGI+ VRM
• - PC Cleaner
• ASUS CPU-Z
• Norton Anti-virus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O Shield
• 1 x Rubber Package for M.2
• 2 x Screw Packages for M.2 SSD
• Documentation
• 1 x User guide

Sistema operativo

• Windows® 11, Windows® 10 64-bit

Factor de forma

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
