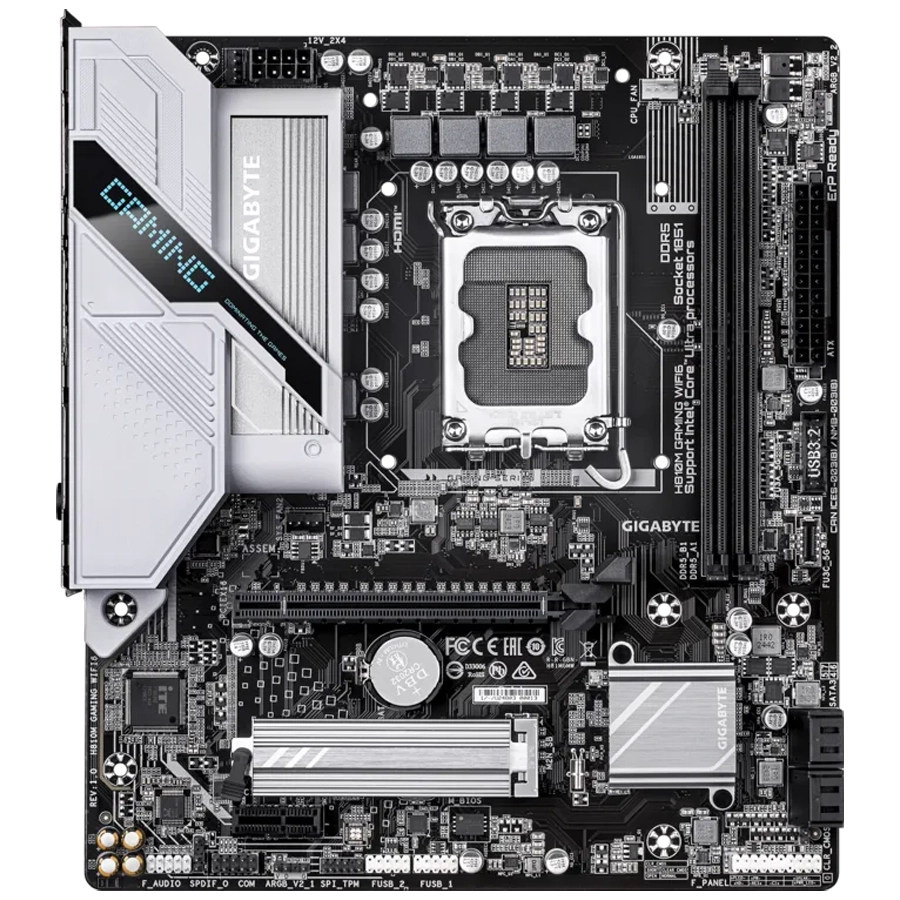

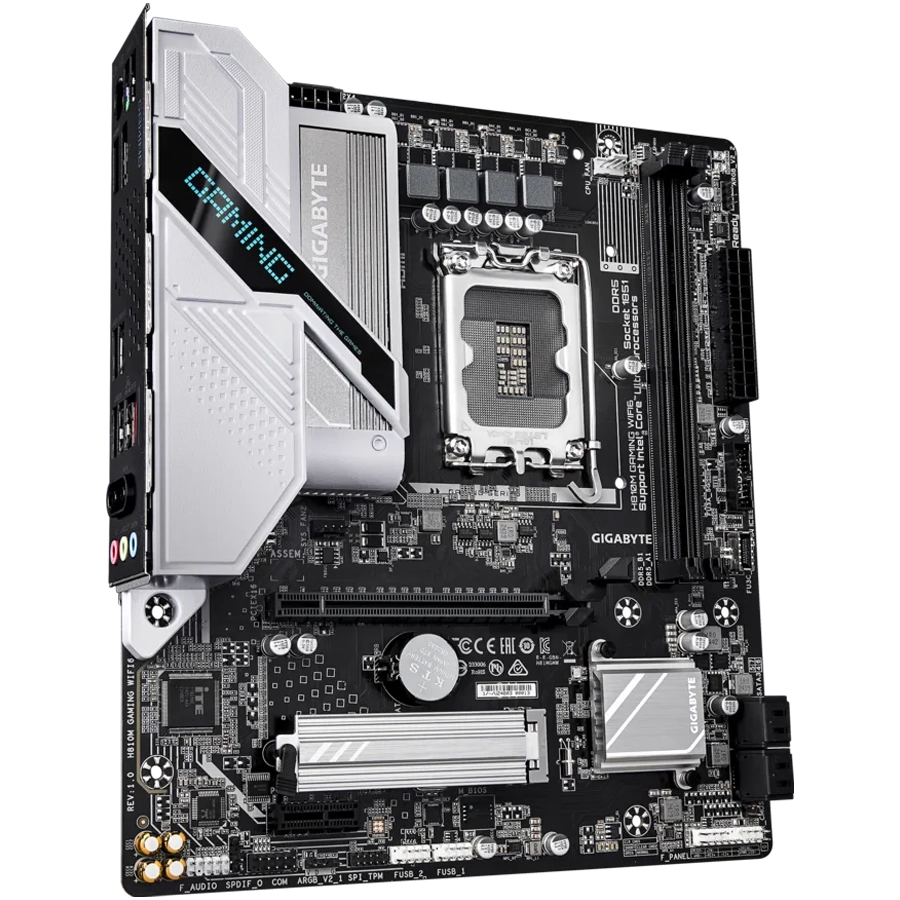

Motherboard GIGABYTE H810M GAMING WIFI6 Intel LGA1851 mATX DDR5 PCIe 4.0 M.2 Gen4 LAN 2.5GbE

Procesador

• LGA1851 socket: Support for Intel® Core™ Ultra Processors
• L3 cache varies with CPU

Chipset

• Intel® H810 Express Chipset

Memoria

• Support for DDR5 6400/5600 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Gráfica Integrada

• Integrated Graphics Processor-Intel® HD Graphics support:
• - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version and HDCP 2.3.
• - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz
• * Support for DisplayPort 2.1 version.
• (Graphics specifications may vary depending on CPU support.)

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• Support for S/PDIF Out

LAN

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Módulo de comunicaciones inalámbricas

• Realtek® Wi-Fi 6 RTL8851BE
• - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
• - BLUETOOTH 5.3
• - Support for 11ax 80MHz wireless standard
• (Actual data rate may vary depending on environment and equipment.)
• * Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.

Zócalos de Expansión

• CPU:
• - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
• * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
• Chipset:
• - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Interfaz de almacenamiento

• Chipset:
• - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
• - 4 x SATA 6Gb/s connectors

USB

• Chipset:
• - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
• - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
• - 5 x USB 2.0/1.1 ports on the back panel
• Chipset+2 USB 2.0 Hubs:
• - 4 x USB 2.0/1.1 ports available through the internal USB headers

Conectores Internos E/S

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 2 x addressable RGB Gen2 LED strip headers
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB Type-C® header, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

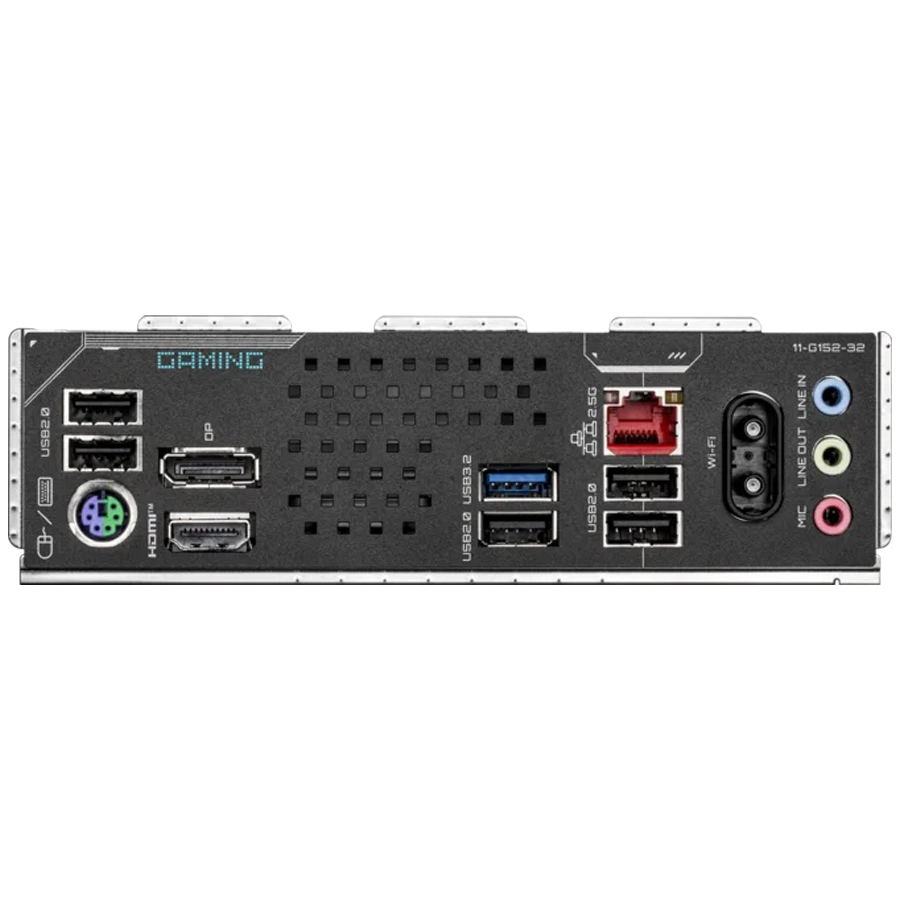

Panel E/S Trasero

• 1 x PS/2 keyboard/mouse port
• 1 x HDMI port (Note)
• 1 x DisplayPort (Note)
• 1 x USB 3.2 Gen 1 port
• 5 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks
• (Note) Actual support may vary by CPU.

Controlador E/S

• iTE® I/O Controller Chip

Monitorización Hardware

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• * Whether the fan speed control function is supported will depend on the fan you install.

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Otras Características

• Support for GIGABYTE Control Center (GCC)
• * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Smart Backup

Sistema Operativo

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit
• * The Intel® NPU driver and Intel® 800 Platform Performance Package Installer are only supported on Windows 11.

Formato

• Micro ATX Form Factor; 24.4cm x 21.5cm
