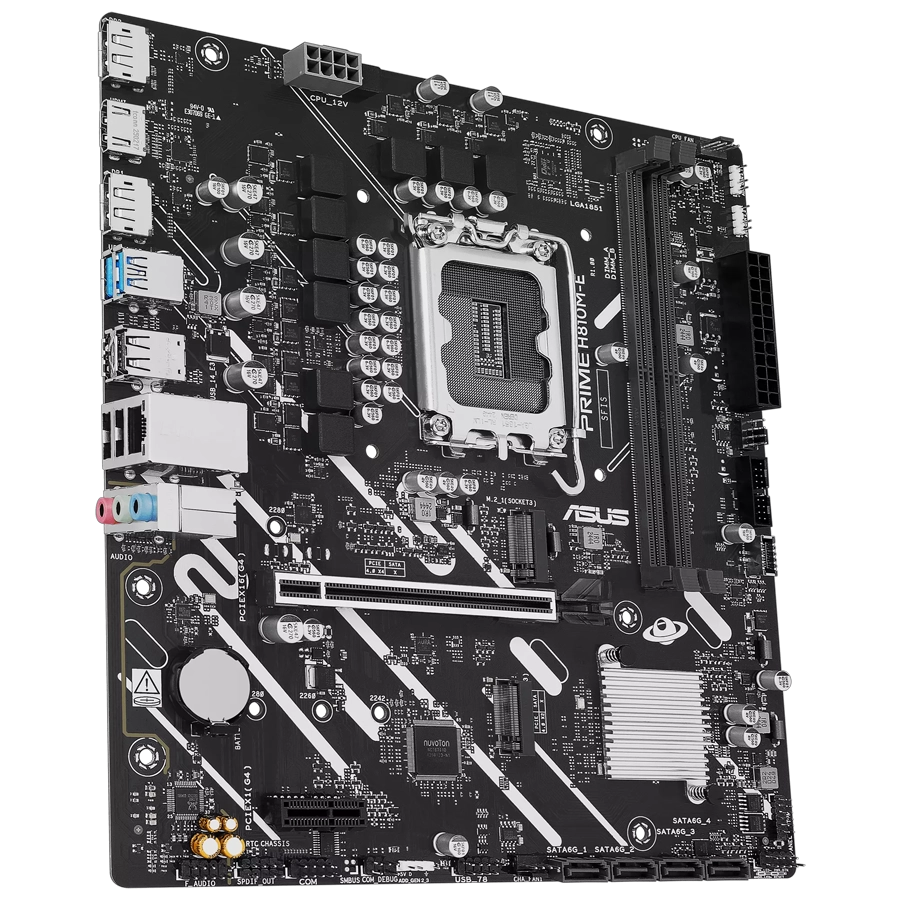

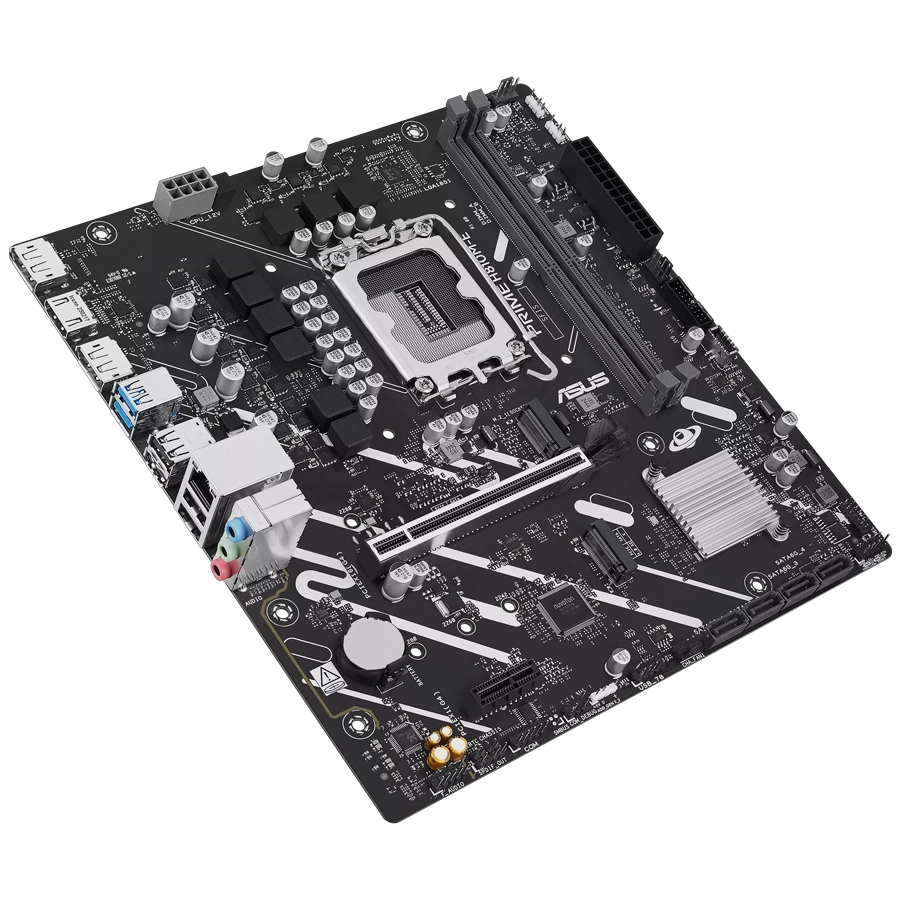

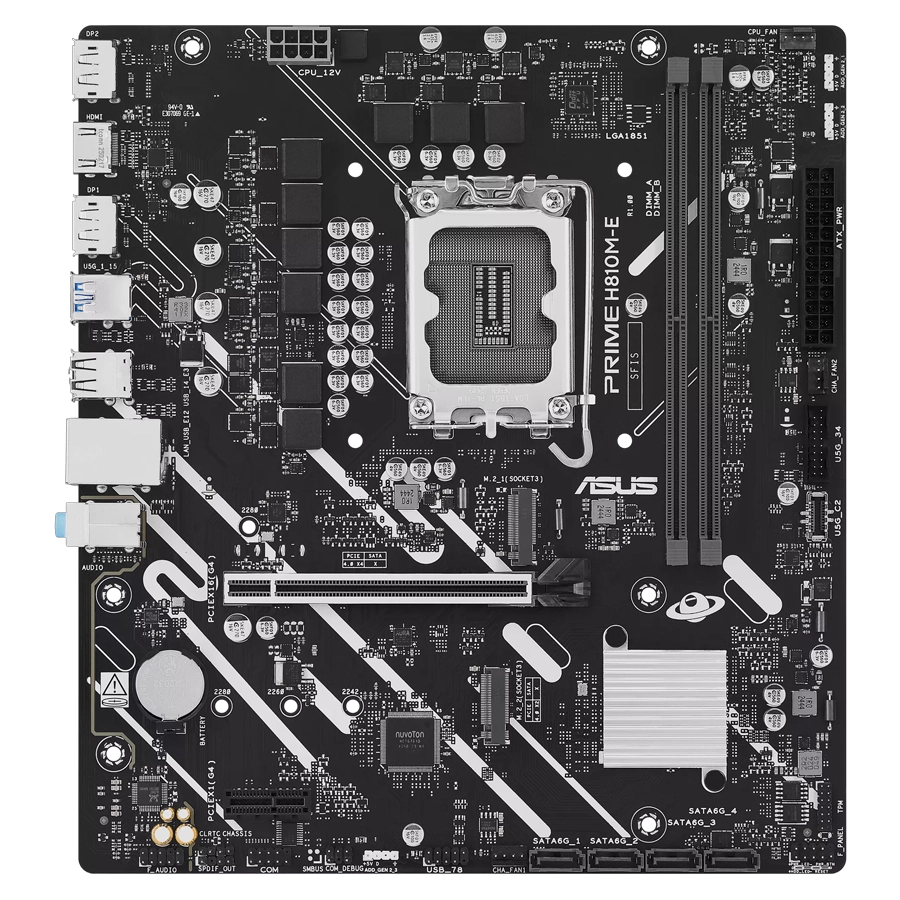

Motherboard ASUS PRIME H810M-E Intel LGA1851 mATX DDR5 PCIe 4.0 M.2 Gen4

Las tarjetas madre de la serie ASUS PRIME están diseñadas por expertos para liberar todo el potencial de los últimos procesadores Intel® Core™ Ultra (Serie 2). Con un diseño de energía robusto, soluciones de enfriamiento integrales y opciones de ajuste inteligente, la tarjeta madre PRIME H810M-E ofrece a los usuarios y constructores de PC DIY una gama de optimizaciones de rendimiento a través de funciones intuitivas de software y firmware. Está diseñada para estar lista para PC con IA avanzada, ofreciendo la potencia y la conectividad necesarias para aplicaciones de IA exigentes.

CPU

• Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® H810 Chipset

Memoria

• 2 x DIMM slots, max. 128GB, DDR5
• Supports up to
• 7200MT/s with Intel® Core™ Ultra 200S Plus Processors
• 6400MT/s with Intel® Core™ Ultra 200S Processors
• Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
• Dual channel memory architecture
• DIMM Fit
• Supports Intel® Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile II (AEMP II)
• ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Gráficos

• 2 x DisplayPort**
• 1 x HDMI™ port***
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.
• **** VGA resolution support depends on processors' or graphic cards' resolution.

Ranuras de expansión

• Intel® Core™ Ultra Processors (Series 2)
• 1 x PCIe 4.0 x16 slot
• Intel® H810 Chipset
• 1 x PCIe 4.0 x1 slot

Almacenamiento

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel® H810 Chipset
• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Realtek 1Gb Ethernet port
• ASUS LANGuard

USB

• Rear USB (Total 6 ports)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 5 ports)
• 1 x USB 5Gbps connector (supports USB Type-C®)*
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• * USB Type-C® power delivery output: max. 5V/3A
• ** USB_E1 port, USB_E2 port and USB_E3 port share the bandwidth.

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

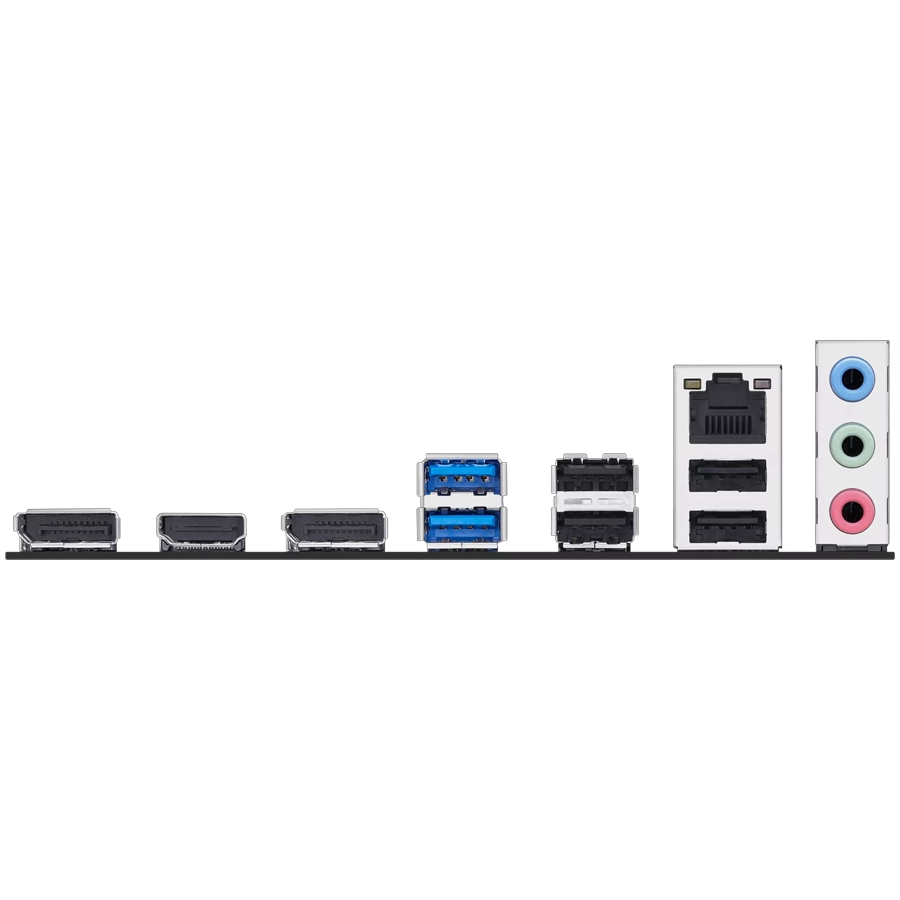

Puertos I/O del panel trasero

• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 2 x DisplayPort
• 1 x HDMI™ port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks

Conectores I/O internos

• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• Power Related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector
• Storage Related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 5Gbps connector (supports USB Type-C® )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable RGB Gen 2 headers
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin Front Panel System header

Special Features

• ASUS 5X PROTECTION III
• - DIGI+ VRM
• - LANGuard
• - Overvoltage protection
• - SafeSlot Core+
• - Stainless-steel back I/O
• ASUS Q-Design
• - Q-Dashboard
• - Q-LED Core
• - Q-Slot
• ASUS Thermal Solution
• - Aluminum heatsink design
• ASUS EZ DIY
• - Dual DIMM clips
• Aura Sync
• - Addressable RGB Gen 2 headers

Software

• ASUS Exclusive Software
• Armoury Crate
• - Aura Creator
• - Aura Sync
• - Fan Xpert 2+
• ASUS DriverHub
• - ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash
• - ASUS UEFI BIOS EZ Mode
• - ASUS MyHotkey
• DIMM FIT Pro

BIOS

• 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O shield
• 1 x M.2 anchor package
• Documentation
• 1 x Quick start guide

Sistema operativo

• Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Factor de forma

• micro-ATX Form Factor
• 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
