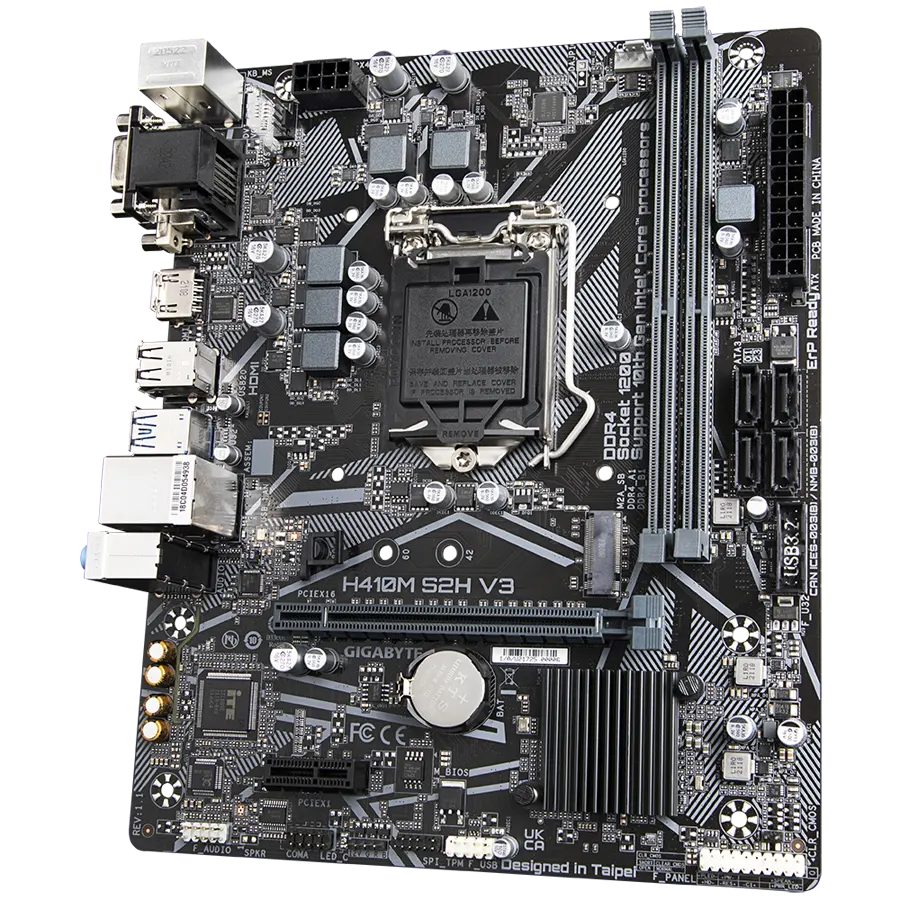

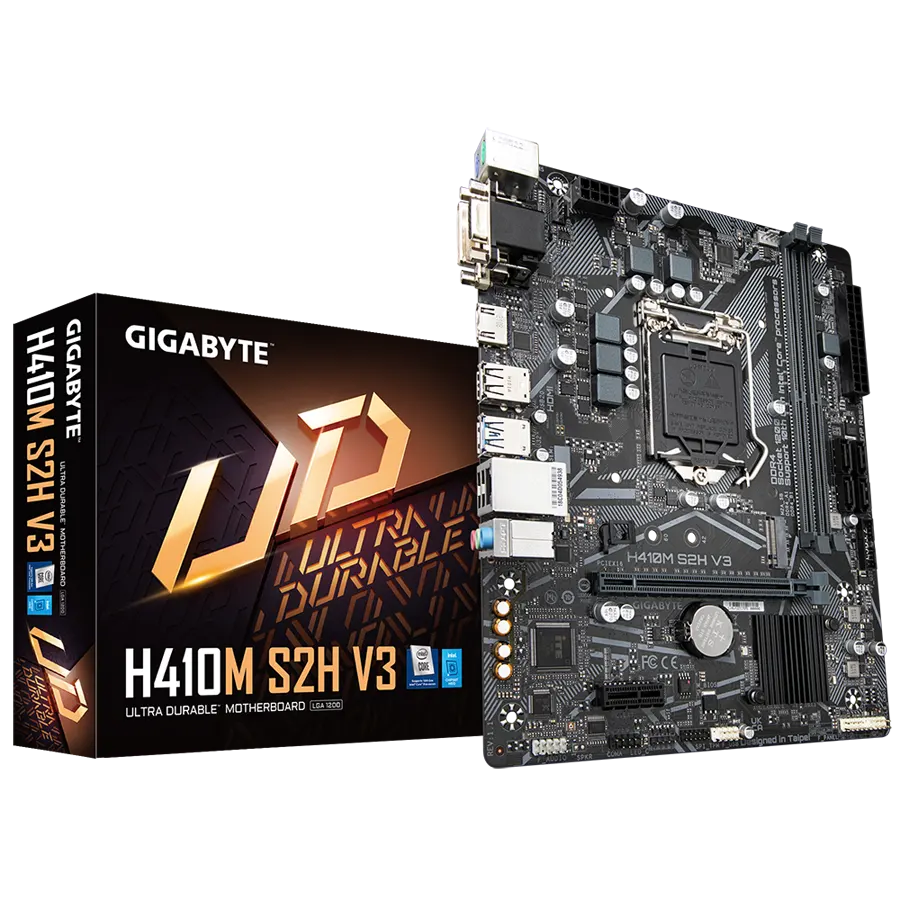

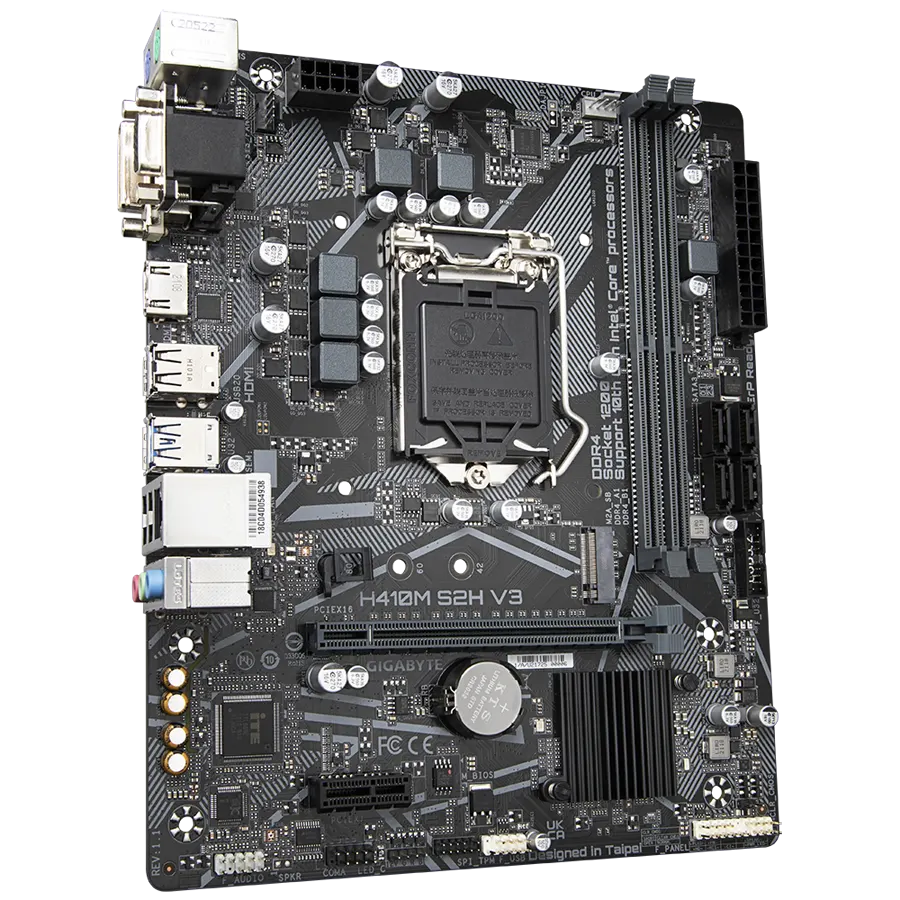

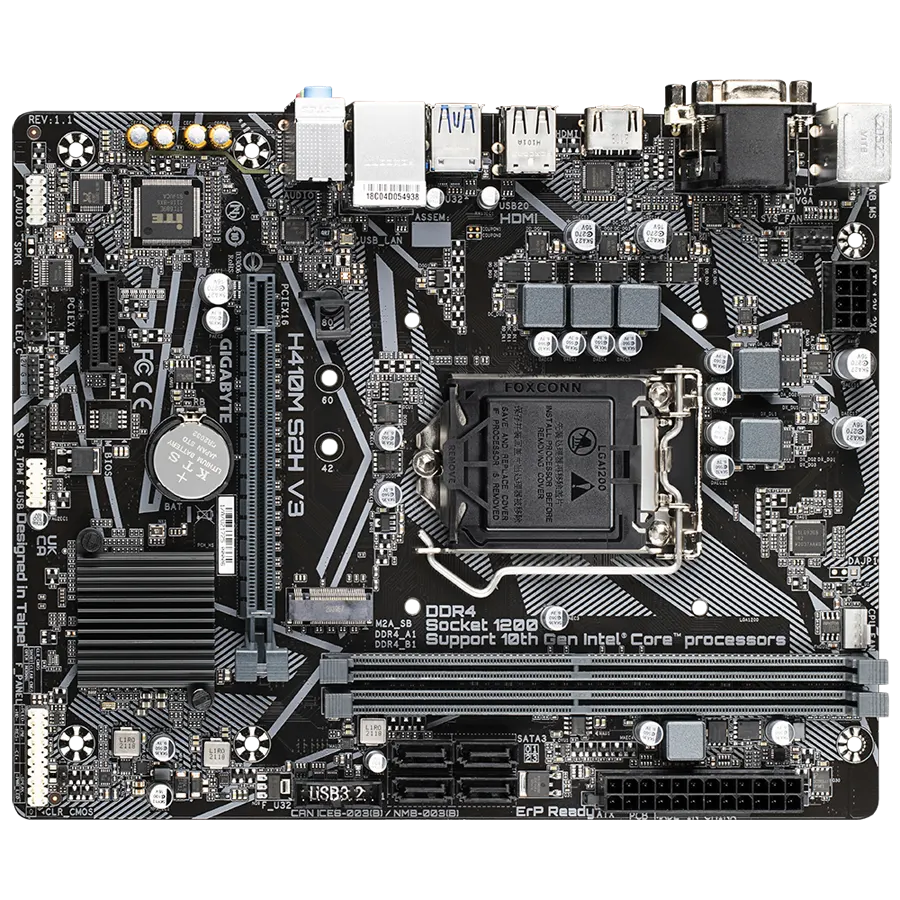

Motherboard GIGABYTE H410M S2H V3 (rev. 1.1) H510 mATX Intel 10ª LGA1200

NO compatible con procesadores de 11ª generación

Intel® Ultra Durable Motherboard with Intel® GbE LAN, PCIe Gen3 x4 M.2, HDMI / DVI-D/ D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 5

Procesador

• Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
• L3 cache varies with CPU

Chipset

• Intel® H510 Express Chipset

Memoria

• Intel® Core™ i9/i7 processors:
• Support for DDR4 2933 / 2666 / 2400 / 2133 MHz memory modules
• Intel® Core™ i5/i3/Pentium®/Celeron® processors:
• Support for DDR4 2666 / 2400 / 2133 MHz memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Gráficos Integrados

• Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
• * The DVI-D port does not support D-Sub connection by adapter.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
• * Support for HDMI 1.4 version and HDCP 2.3.
• Support for up to dual-display at the same time
• Maximum shared memory of 512 MB

Audio

• Realtek® audio codec
• High Definition Audio
• 2/4/5.1/7.1-channel

LAN

• Gigabit Ethernet Chip (1 Gbps/100 Mbps)

Puertos de Expansión

• 1 x PCI Express x16 slot, running at x16
• 2 x PCI Express x1 slot
• (The PCI Express slots conform to PCI Express 3.0 standard.)

Interfaz de Almacenamiento

• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors

USB

• Chipset:
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Conectores Internos de E/S

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 1 x system fan header
• 1 x RGB LED strip header
• 1 x front panel header
• 1 x front panel audio header
• 1 x speaker header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

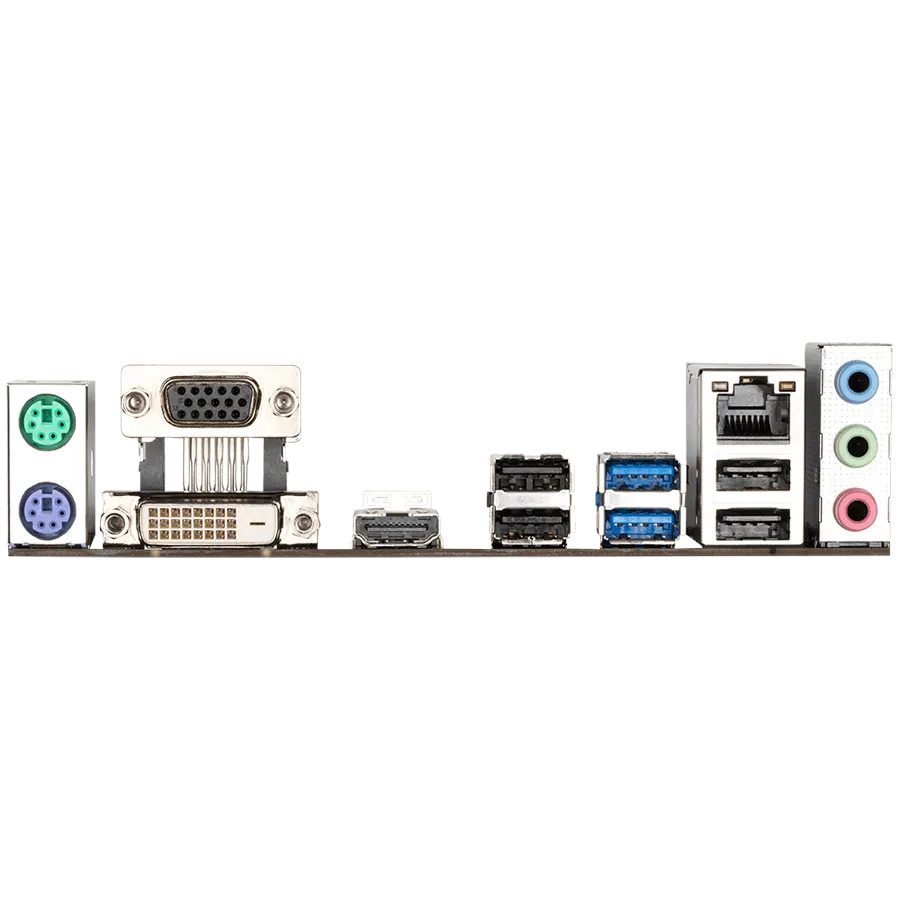

Conectores del Panel Trasero

• 1 x PS/2 keyboard port
• 1 x PS/2 mouse port
• 1 x D-Sub port
• 1 x DVI-D port
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

Controlador de E/S

• iTE® I/O Controller Chip

Monitorización H/W

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control

BIOS

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Características Únicas

• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• @BIOS
• Ambient LED
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• Smart Backup
• System Information Viewer
• Support for Q-Flash
• Support for Xpress Install

Software Incluido

• Norton® Internet Security (OEM version)

Sistema Operativo

• Support for Windows 10 64-bit

Diseño

• Micro ATX Form Factor; 22.6cm x 18.5cm
