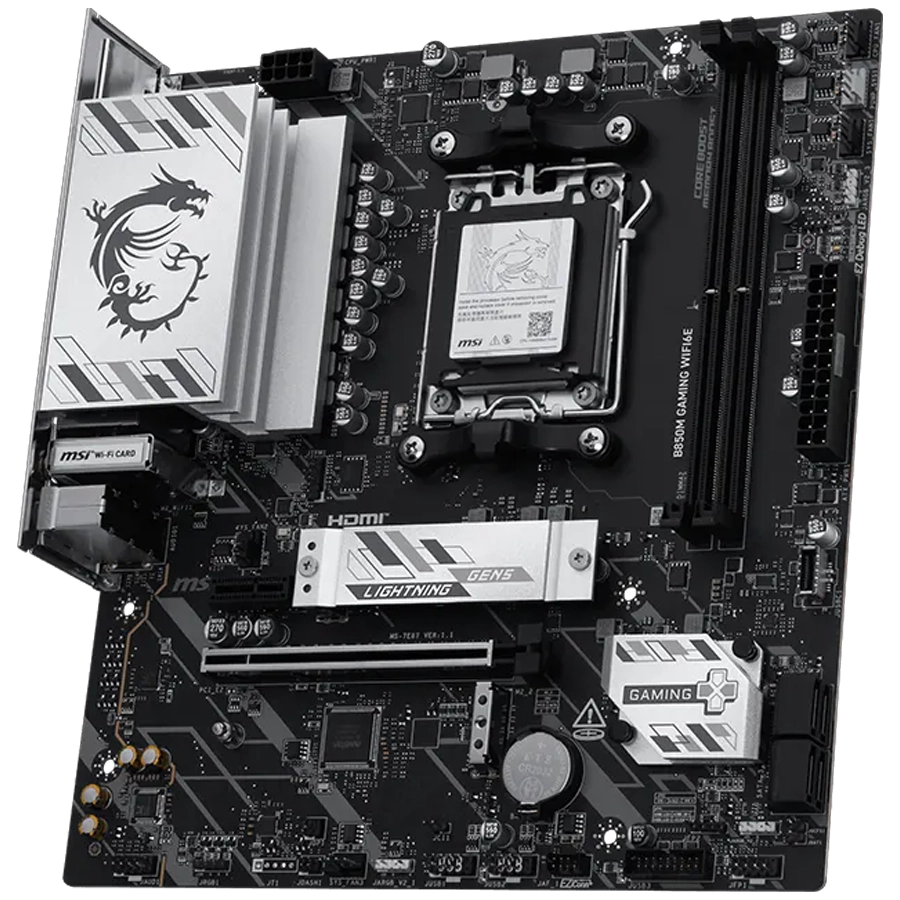

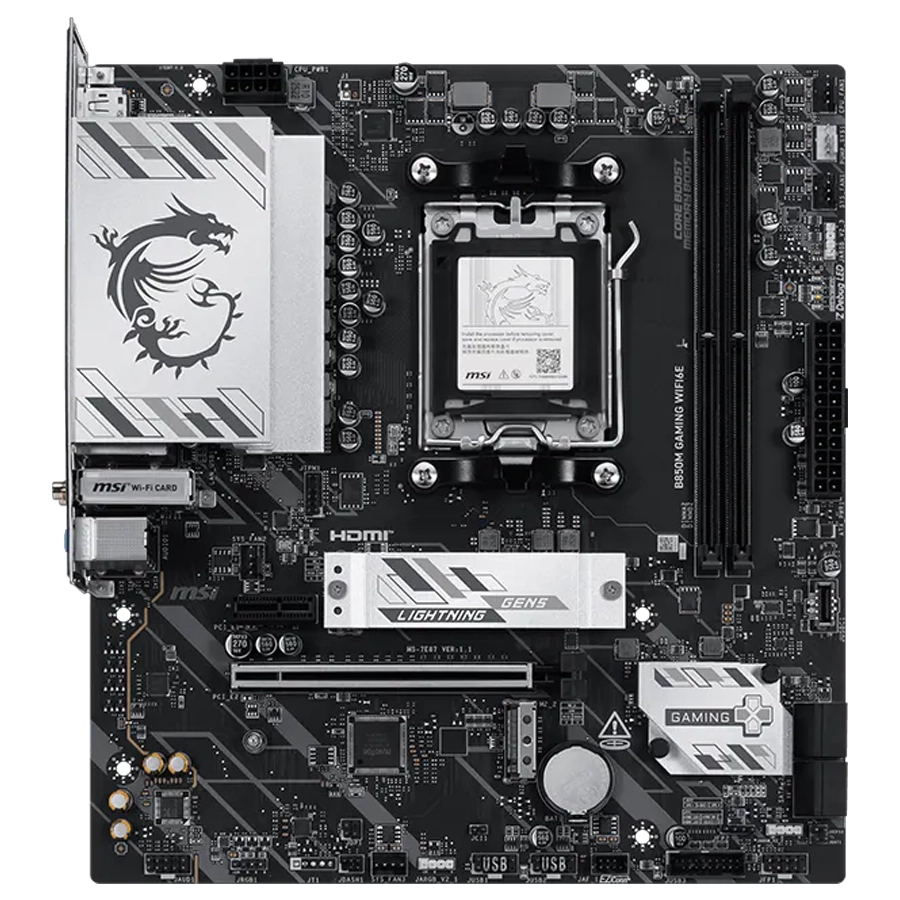

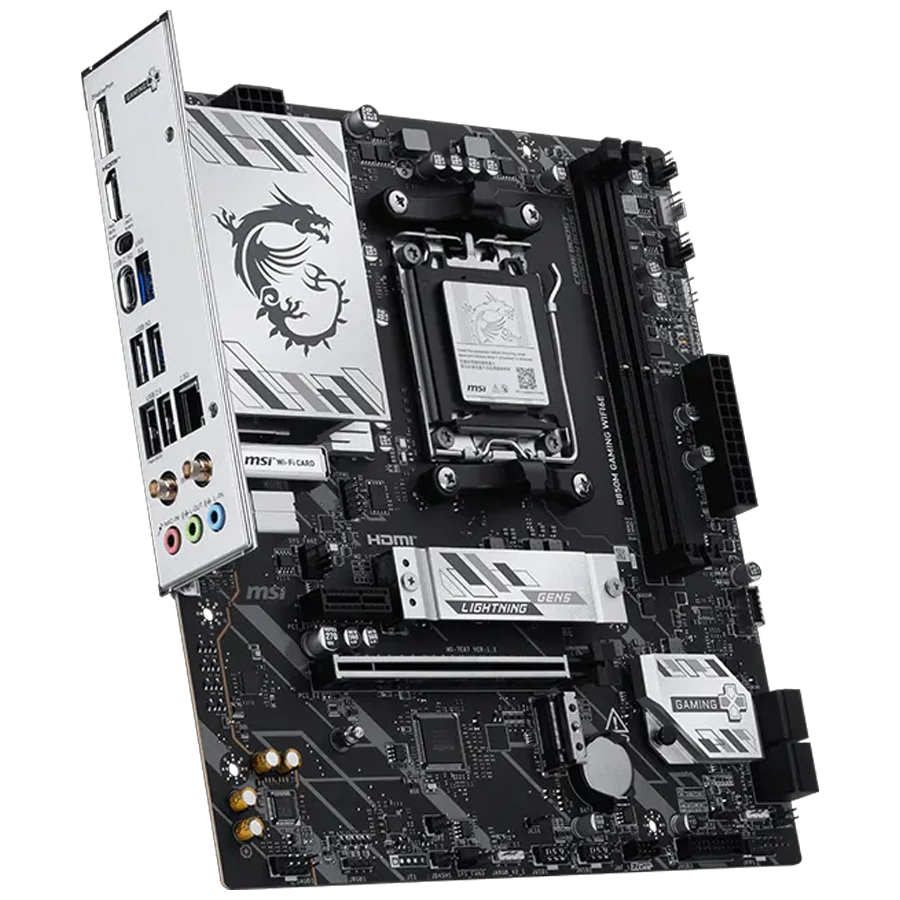

Motherboard MSI B850M GAMING WIFI6E AMD AM5 mATX DDR5 PCIe 4.0 M.2 Gen5 LAN 2.5G

La B850M GAMING WIFI6E está diseñada para ofrecer conectividad avanzada, herramientas versátiles y una solución Wi-Fi premium para gamers que buscan una experiencia completa. Con Wi-Fi 6E, LAN 2.5G, PCIe 4.0, solución M.2 Gen 5 y funciones exclusivas de Diseño Amigable, está lista para gaming ininterrumpido 24/7 y optimizada para procesadores AMD Ryzen™ Serie 9000.

• Compatible con procesadores de escritorio AMD Ryzen™ Serie 9000 / 8000 / 7000
• Soporta memoria DDR5, DDR5 de doble canal hasta 8200+ MT/s (OC)
• Ultra Performance: Sistema de energía P-PAK Directo 7+2+1, conectores de energía CPU de 8 pines, Core Boost, Memory Boost y PCB de 6 capas fabricado con cobre engrosado de 2oz y material de nivel servidor
• Frozr Guard: Extended Heatsink, pads térmicos MOSFET de 7W/mK, pads térmicos adicionales para chokes y M.2 Shield Frozr, diseñados para alto rendimiento y uso continuo
• Conectividad de alta velocidad: LAN 2.5G con solución Wi-Fi 6E, ofreciendo redes seguras, estables y de alta velocidad para uso profesional y multimedia
• Experiencia de juego ultrarrápida: ranura PCIe 4.0, Lightning Gen 5 x4 M.2 y USB Tipo-C frontal
• Diseño Amigable: EZ Conn Design, EZ M.2 Clip II y EZ Antenna
• Audio Boost: sonido de calidad de estudio para una experiencia de juego totalmente inmersiva

Chipset

• AMD B850

CPU

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Socket AM5

Memoria

• 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
• Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
• Ryzen™ 9000 Series Processors max. overclocking frequency:
• • 1DPC 1R Max speed up to 8200+ MT/s
• • 1DPC 2R Max speed up to 8000+ MT/s
• Supports AMD POR Speed and JEDEC Speed
• Supports Memory Overclocking and AMD EXPOTM
• Supports Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM, Clock Driver bypass mode only*
• * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

Gráficos

• 1x HDMI™
• Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
• 1x DisplayPort
• Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Ranuras de expansión

• 1x PCI-E x16 slot (Qty)
• 1x PCI-E x1 slot (Qty)
• PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E1 slot
• • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Audio

• Realtek® ALC897
• 7.1-Channel High Definition Audio

Almacenamiento

• 2x M.2 (Qty)
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
• M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
• 4x SATA 6G (Qty)
• M2_1 slot
• • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
• M2_2 slot
• • Supports up to PCIe 4.0 x4
• • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
• *Please refer to the manual for M.2 SSD heatsink restrictions.

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

• 2x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 3x USB 5Gbps Type A (Rear)
• 1x USB 5Gbps Type C (Rear)
• 2x USB 5Gbps Type A (Front)
• 1x USB 10Gbps Type C (Front)

LAN

• Realtek® 8125D 2.5G LAN

Conectores de E/S internos

• 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x PUMP_SYS Fan
• 3x System Fan
• 1x ARGB+FAN Header (JAF_1)
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Tuning Controller connector(JDASH)
• 3x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports

LAN inalámbrica & Bluetooth

• Wi-Fi 6E Solution
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3, FIPS, FISMA
• * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
• ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Funciones LED

• 4x EZ Debug LED
• 1x EZ Memory Detection LED

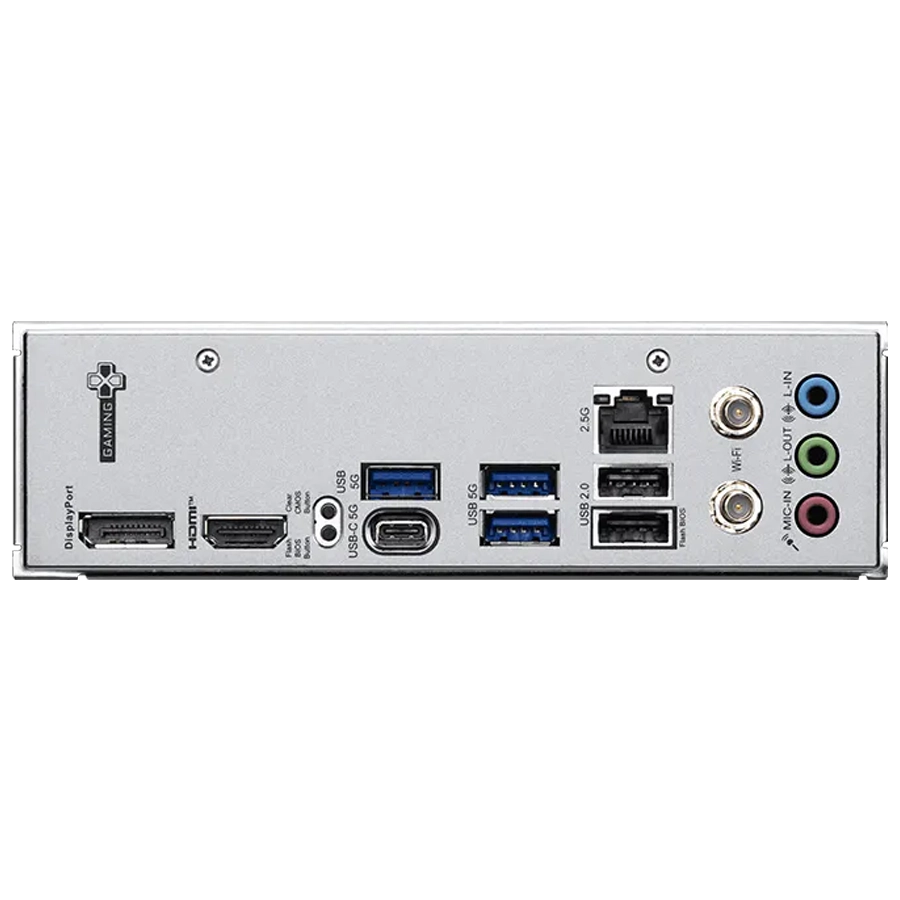

Puertos de panel trasero

• 1x Clear CMOS Button
• 3x USB 5Gbps (Type-A)
• 1x 2.5G LAN
• 2x Wi-Fi / Bluetooth
• 3x HD Audio Connectors
• 1x DisplayPort 1.4
• 1x HDMI™
• 1x Flash BIOS Button
• 1x USB 5Gbps (Type-C)
• 2x USB 2.0

Sistema operativo

• Support for Windows® 11 64-bit

Contenido de la caja

• Cable Sticker
• Quick Installation Guide
• European Union Regulatory Notice
• 1 to 2 EZ Conn-Cable (V1)
• SATA Cable
• EZ Wi-Fi Antenna
• EZ M.2 Clip II Remover

Factor de forma

• mATX
• 226mmx243.84mm
