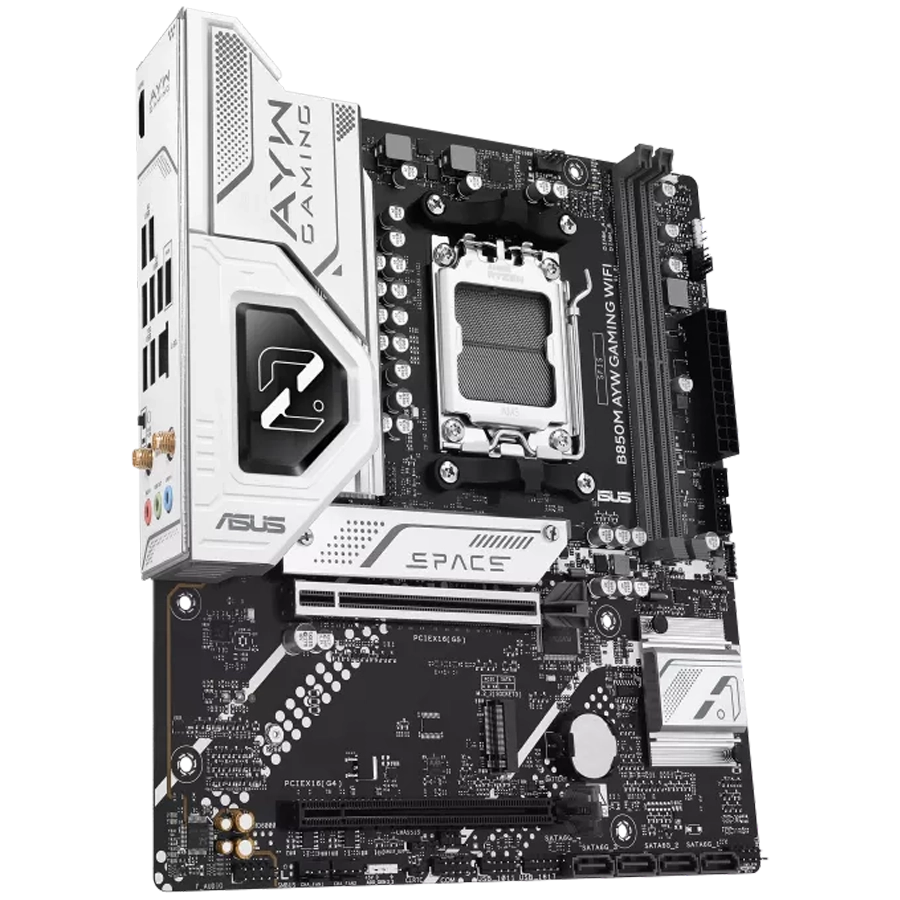

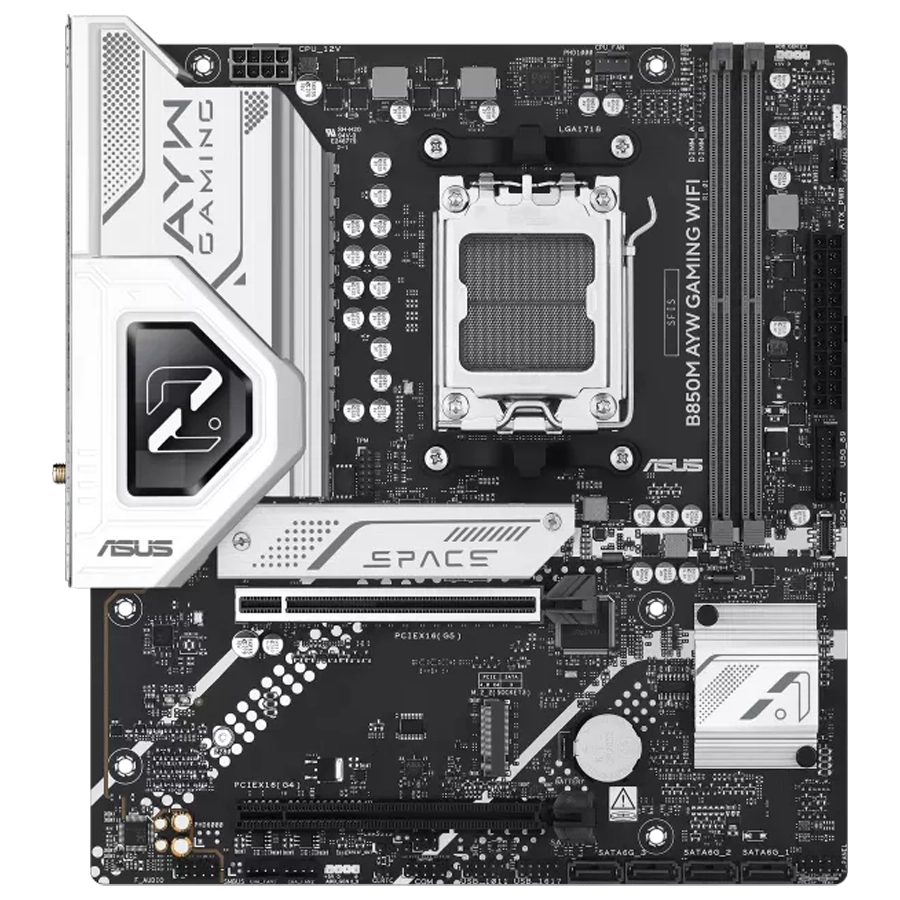

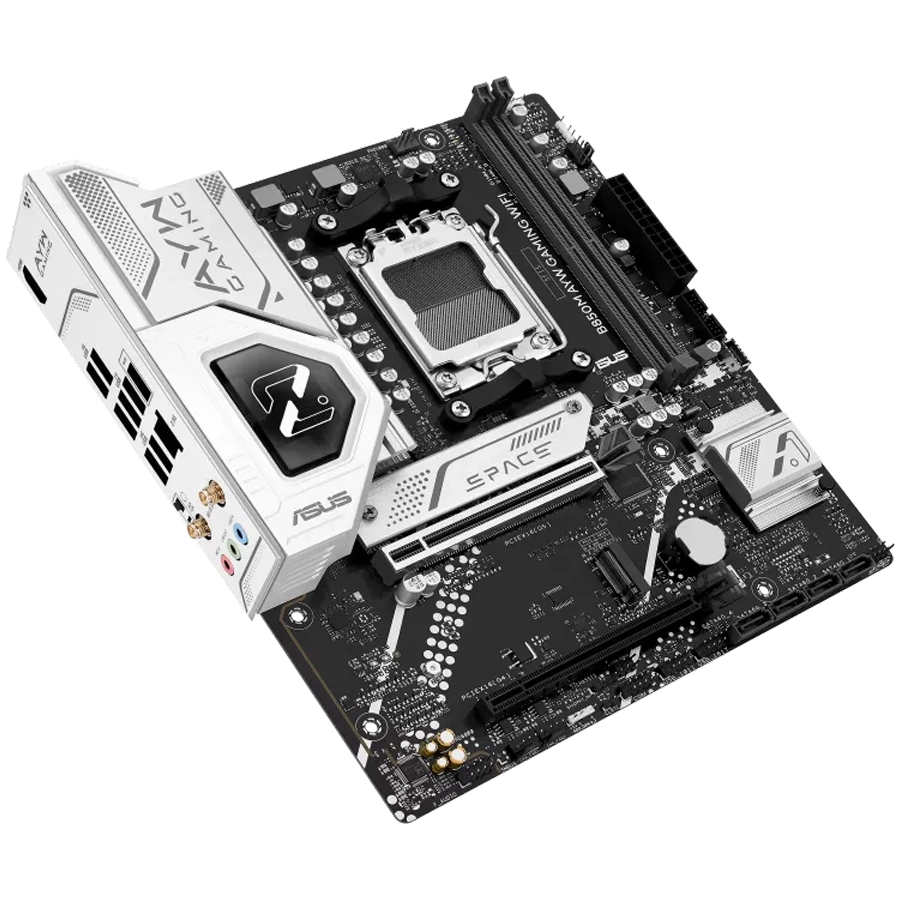

Motherboard ASUS B850M AYW GAMING WIFI AMD AM5 mATX DDR5 PCIe 5.0 M.2 Gen5 WiFi6 LAN 2.5Gb

CPU

• AMD Socket AM5 for AMD Ryzen^™ 9000 & 8000 & 7000 Series Desktop Processors*
• Supports up to AMD 170W CPU

Chipset

• AMD B850 Chipset

Memoria

• 2 x DIMM slots, max. 128GB, DDR5 Supports up to
• 8200+MT/s(OC) with Ryzen^™ 9000 Series Processors,
• 9600+MT/s(OC) with Ryzen^™ 8000 Series Processors,
• 8000+MT/s(OC) with Ryzen^™ 7000 Series Processors,
• ECC and Non-ECC Un-buffered DIMM*
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO^™)
• ASUS Enhanced Memory Profile (AEMP)
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Gráficos

• 1 x HDMI™ port**
• * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• ** Supports 4K@60Hz as specified in HDMI 2.1.

Ranuras de expansión

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
• 1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
• AMD B850 Chipset
• 1 x PCIe 4.0 x16 slot (support x4 mode)
• ** Specifications vary by CPU types.

Almacenamiento

• Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen^™ 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• AMD Ryzen^™ 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
• AMD B850 Chipset
• 4 x SATA 6Gb/s ports
• * Specifications vary by CPU types.
• AMD RAIDXpert2 Technology
• Ryzen^™ 9000 Series Processors: RAID 0/1/5/10
• Ryzen^™ 8000 Series Processors: RAID 0/1
• Ryzen^™ 7000 Series Processors: RAID 0/1/10

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6
• 1x1 Wi-Fi 6 (802.11ax)
• Supports 2.4/5GHz frequency band
• Bluetooth^® v5.3*
• * The Bluetooth^® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 8 ports)
• 2 x USB 10Gbps ports (2 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 5Gbps connector (supports USB Type-C^®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• * USB Type-C^® power delivery output: max. 5V/3A

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

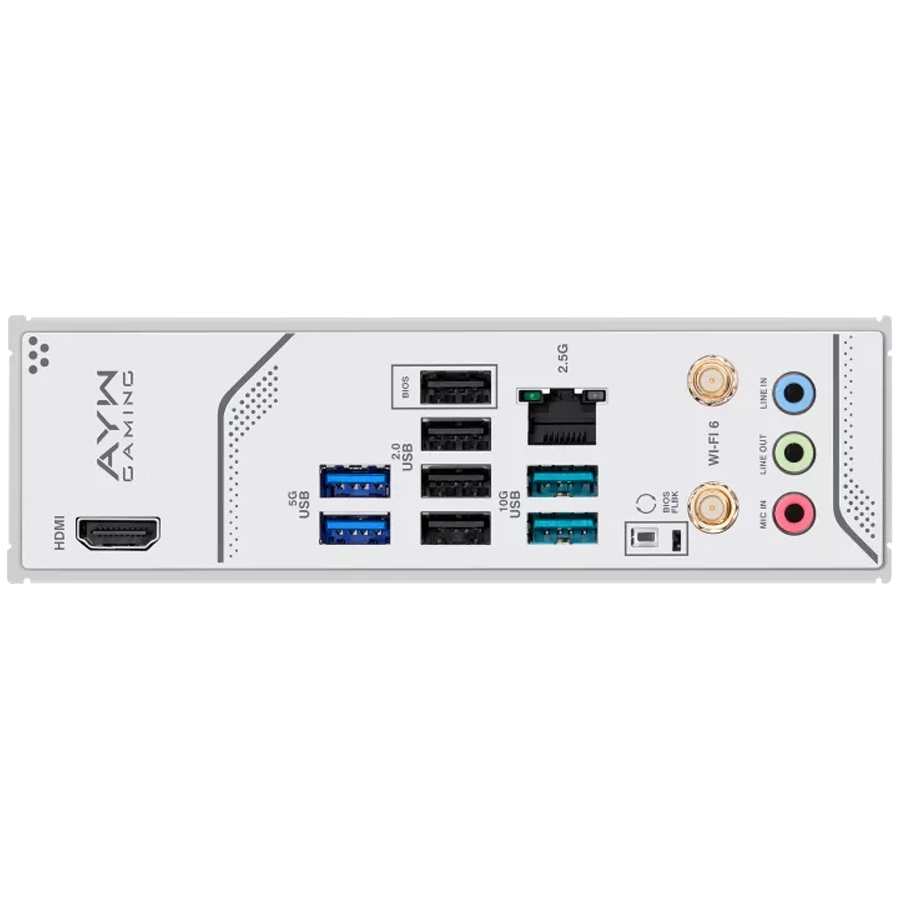

Puertos E/S traseros

• 2 x USB 10Gbps ports (2 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x HDMI^™ port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack^™ button

Conectores E/S internos

• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 3 x 4-pin Chassis Fan headers
• Power Related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector
• Storage Related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 5Gbps connector (supports USB Type-C^® )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable RGB Gen 2 headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin System Panel header

Características únicas

• ASUS 5X PROTECTION III
• - DIGI+ VRM
• - LANGuard
• - Overvoltage protection
• - SafeSlot
• - Stainless-steel back I/O
• ASUS Q-Design
• - M.2 Q-Latch
• - Q-Dashboard
• - Q-DIMM
• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink
• - VRM heatsink design
• ASUS EZ DIY
• - Pre-mounted I/O shield
• - BIOS FlashBack^™ button
• - BIOS FlashBack^™ LED
• - SafeSlot
• Aura Sync
• - Addressable RGB Gen 2 headers

Software

• ASUS Exclusive Software
• Armoury Crate
• - Aura Creator
• - Aura Sync
• - Fan Xpert 2+
• ASUS AI Advisor
• ASUS DriverHub
• TurboV Core
• ASUS GlideX
• ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode
• - ASUS MyHotkey

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

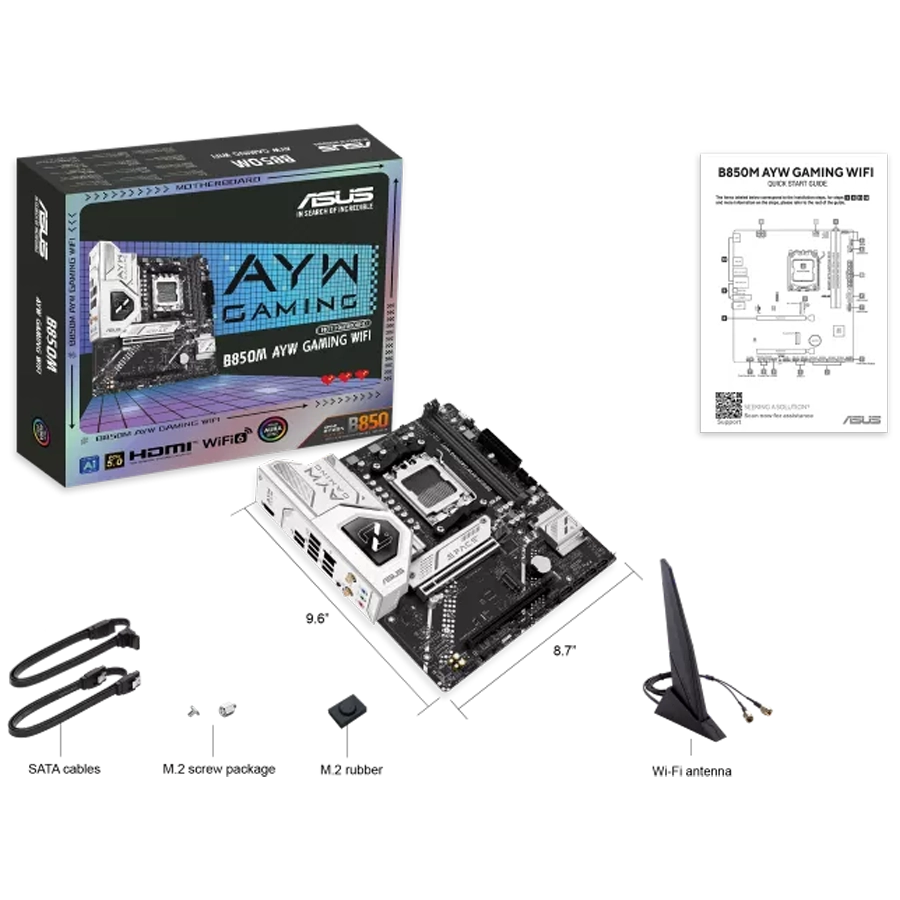

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous

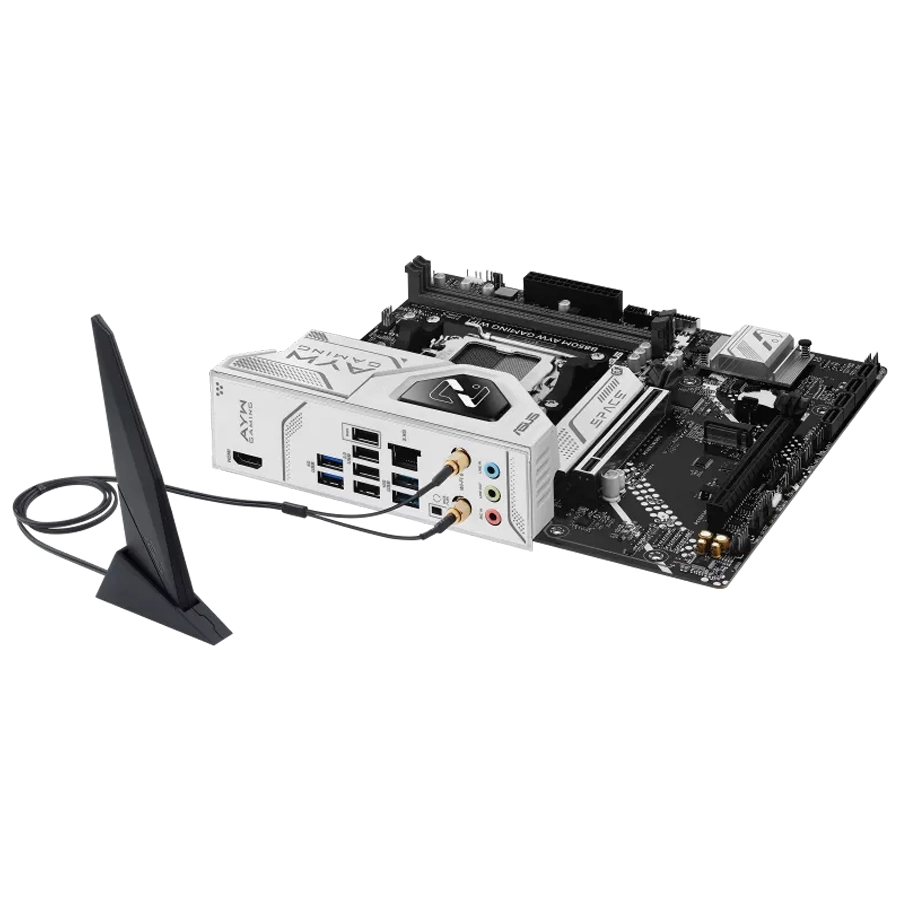

• 1 x ASUS Wi-Fi moving antenna
• 1 x M.2 rubber package
• 1 x Screw package for M.2 SSD
• Documentation
• 1 x Quick start guide

Sistema operativo

• Windows^® 11, Windows^® 10 64-bit

Factor de forma

• micro-ATX Form Factor
• 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
