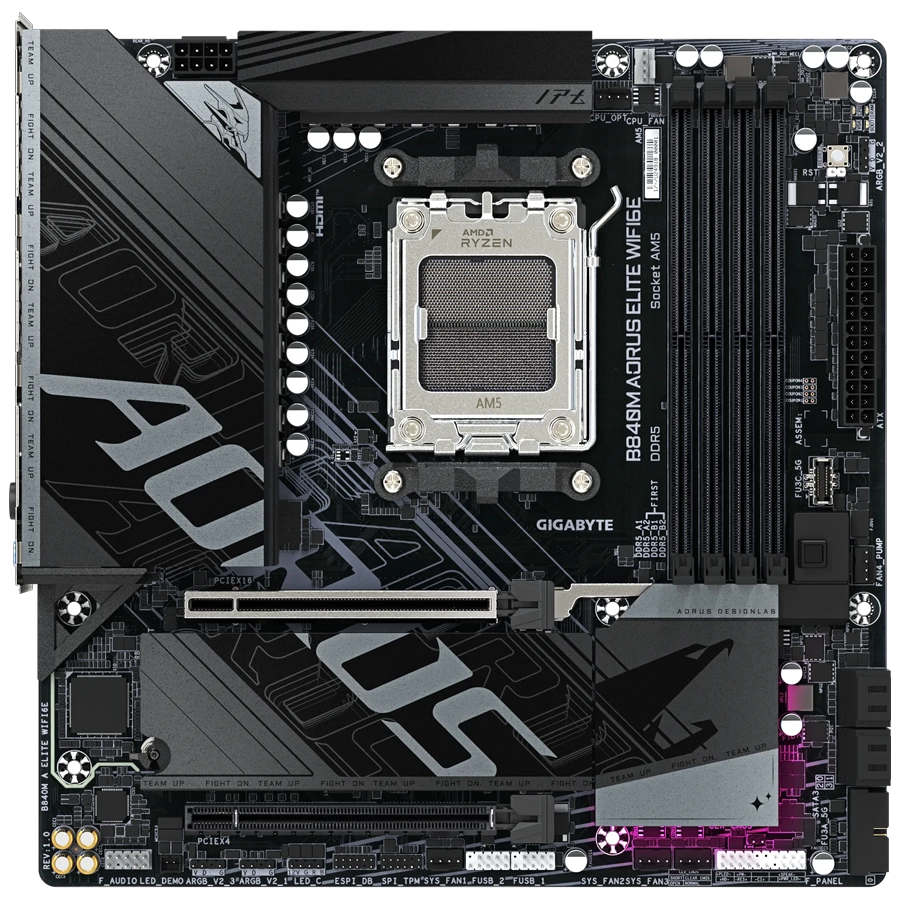

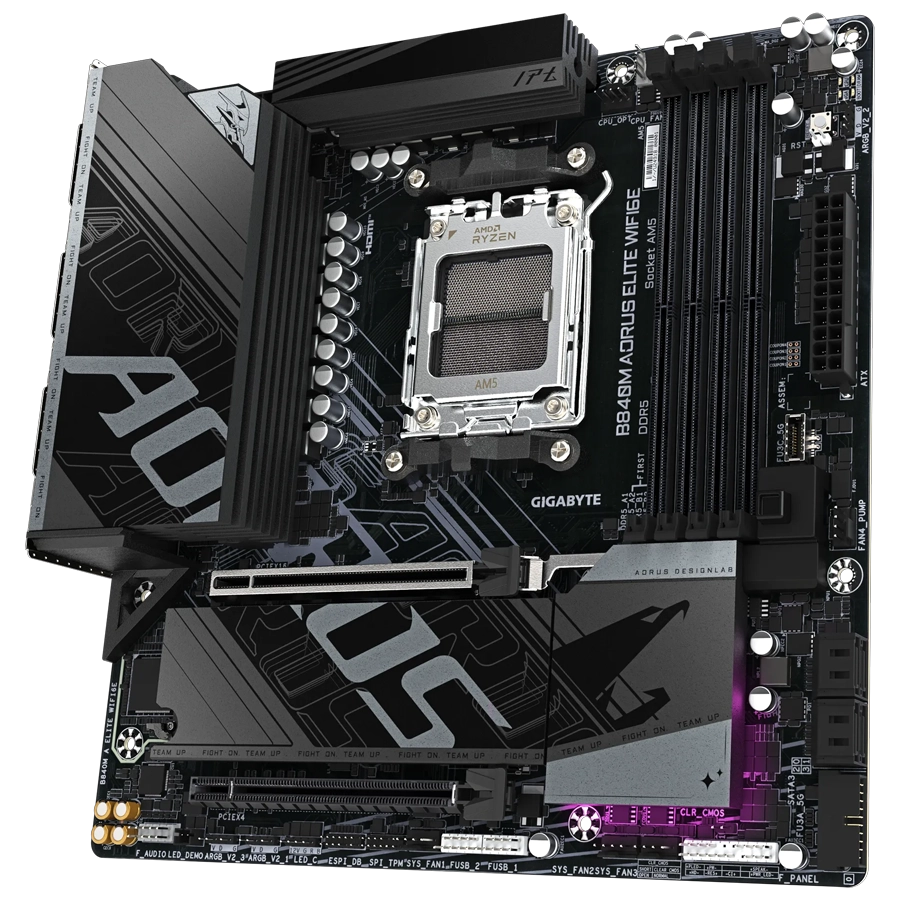

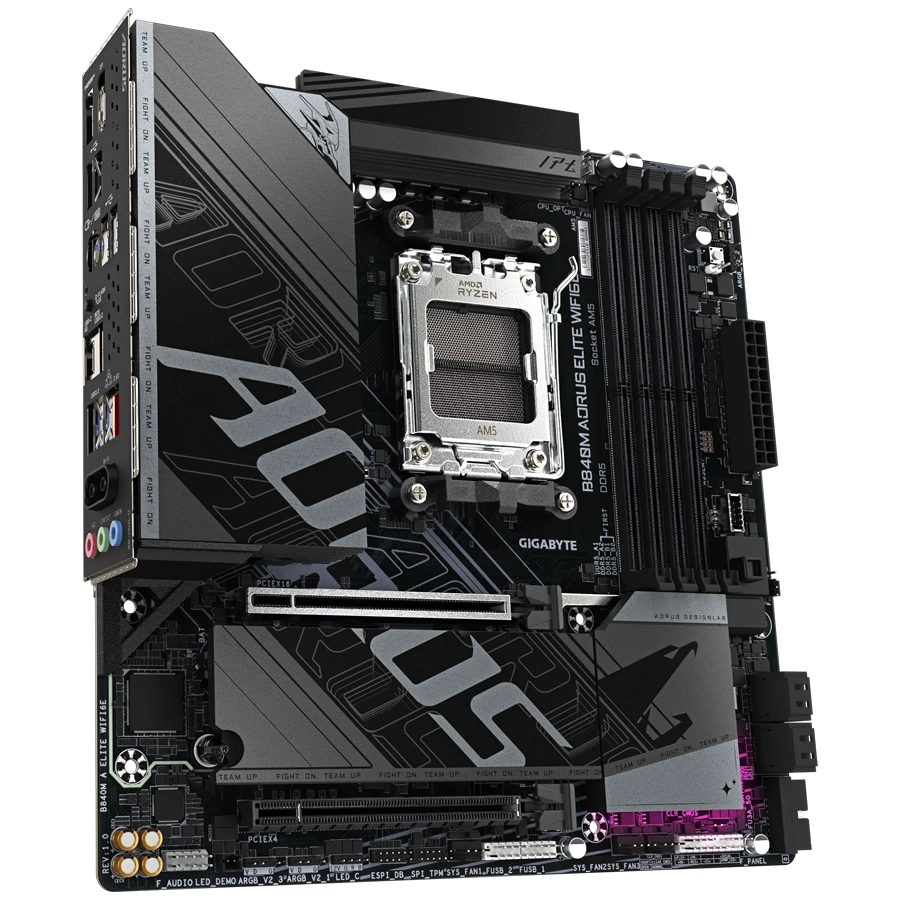

Motherboard GIGABYTE B840M AORUS ELITE WIFI6E AMD AM5 mATX DDR5 PCIe 4.0 M.2 Gen4 2.5GbE

Procesador

• AMD Socket AM5, support for:
• AMD Ryzen™ 9000 Series Processors/
• AMD Ryzen™ 8000 Series Processors/
• AMD Ryzen™ 7000 Series Processors

Chipset

• AMD B840

Memoria

• Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Gráficos Integrados

• Integrated Graphics Processor with AMD Radeon™ Graphics support:
• - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
• * Support for DisplayPort 1.4 version and HDR.
• - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
• ** Support for native HDMI 2.1 TMDS compatible ports.

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

LAN

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Módulo Inalámbrico

• Realtek® Wi-Fi 6E RTL8852CE
• - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• - BLUETOOTH 5.3
• - Support for 11ax 160MHz wireless standard

Puertos de Expansión

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
•  AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
•  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
•  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
• * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• Chipset:
• - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Interfaz de Almacenamiento

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
•  AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
•  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
•  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
• 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
•  AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
•  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
•  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• CPU:
• - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
• - 2 x USB 3.2 Gen 1 ports on the back panel
• CPU+USB 2.0 Hub:
• - 4 x USB 2.0/1.1 ports on the back panel
• Chipset:
• - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
• - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• - 2 x USB 3.2 Gen 1 ports available through the internal USB header
• - 4 x USB 2.0/1.1 ports available through the internal USB headers

Conectores Internos de E/S

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

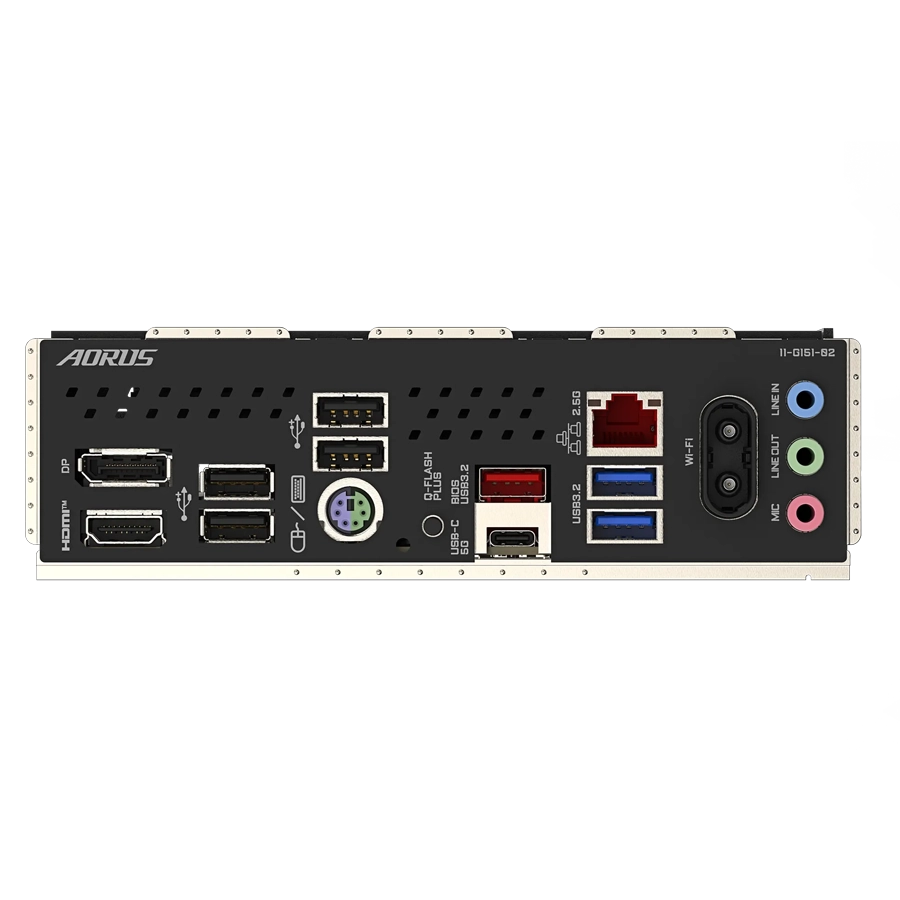

Conectores del Panel Trasero

• 1 x DisplayPort*
• 1 x HDMI port*
• 1 x PS/2 keyboard/mouse port
• 1 x Q-Flash Plus button
• 4 x USB 2.0/1.1 ports
• 2 x USB 3.2 Gen 1 ports
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 1 x USB Type-C® port, with USB 3.2 Gen 1 support
• 1 x RJ-45 port

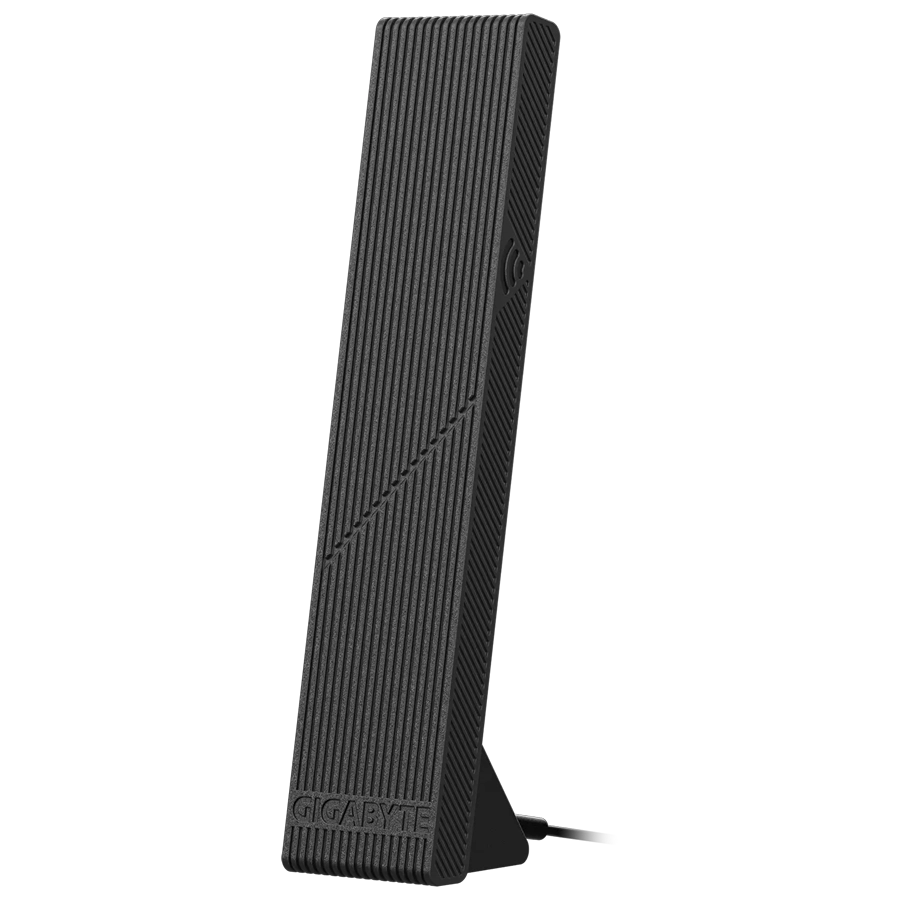

• 2 x antenna connectors (2T2R)
• 3 x audio jacks
• * Actual support may vary by CPU.

Controlador de E/S

• iTE® I/O Controller Chip

Monitorización H/W

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Características Únicas

• Support for GIGABYTE Control Center (GCC)
• * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

Software Incluido

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

Sistema Operativo

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Diseño

• Micro ATX Form Factor; 24.4cm x 24.4cm
