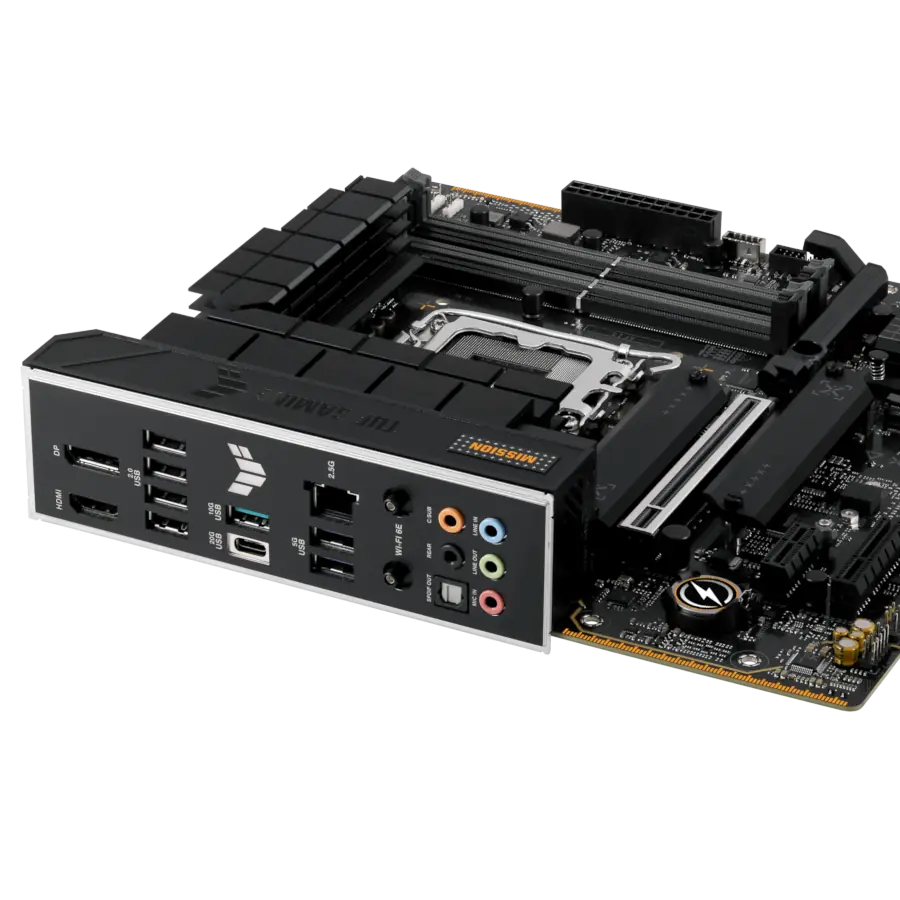

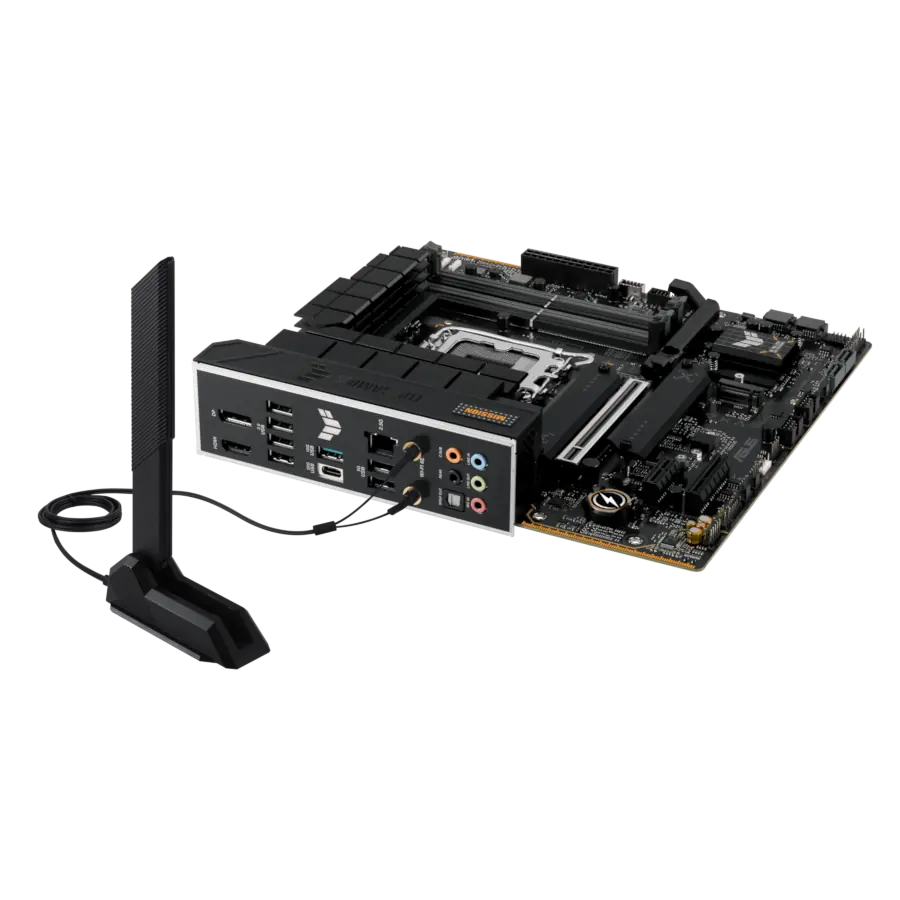

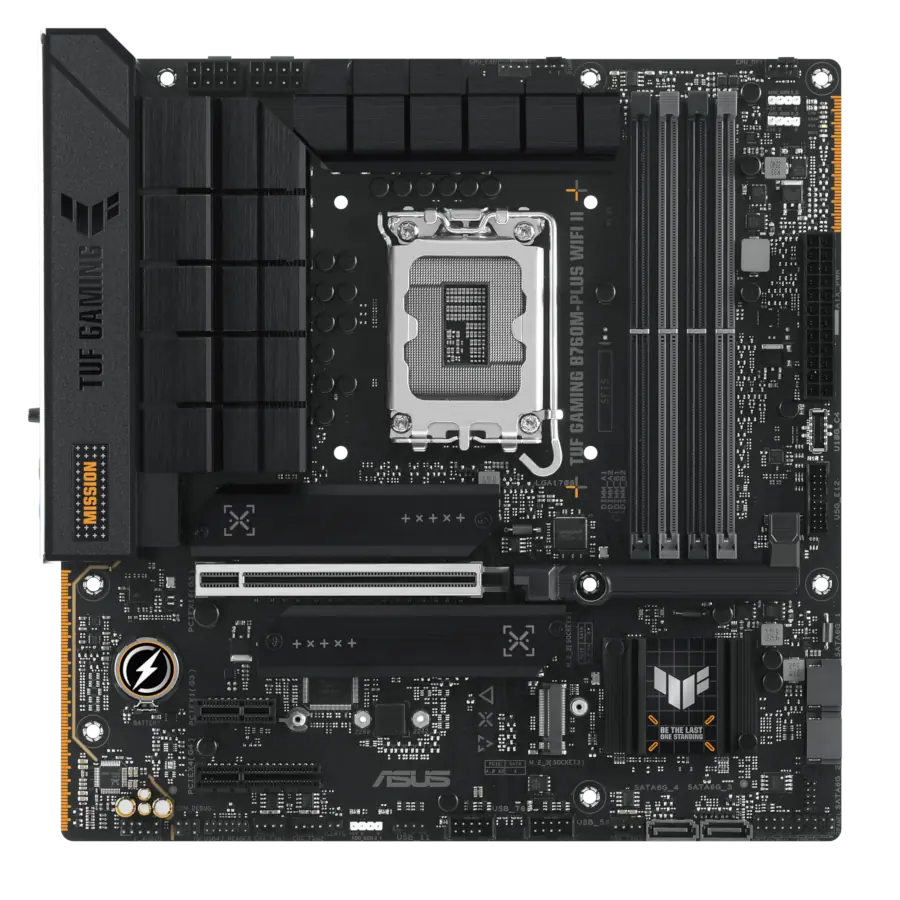

Motherboard ASUS TUF GAMING B760M-PLUS WIFI II mATX DDR5 PCIe 5.0 Wi-Fi 6E LAN 2.5Gb Intel LGA1700

TUF GAMING B760M-PLUS WIFI II toma todos los elementos esenciales de los últimos procesadores Intel® y los combina con funciones listas para jugar y una durabilidad probada. Diseñada con componentes de calidad militar, una solución de alimentación mejorada y un completo sistema de refrigeración, esta motherboard supera las expectativas con un rendimiento sólido como una roca para los juegos maratonianos. Las motherboards TUF GAMING también se someten a rigurosas pruebas de resistencia para garantizar que pueden soportar condiciones en las que otras podrían fallar. Estéticamente, este modelo incorpora una placa con el nombre en relieve y elementos de diseño geométrico para reflejar la fiabilidad y estabilidad que definen a la serie TUF GAMING.

• 12(50A)+1(60A)+1 fases de poder con disipadores VRM ampliados
• PCIe® 5.0 para tarjetas gráficas
• Compatible con módulos de memoria DDR5
• USB 20Gbps Tipo-C® y un puerto frontal USB 10Gbps Tipo-C®
• Ethernet de 2.5 Gb
• PCIe Q-Release
• WiFi 6E con Q-Antenna
• CANCELACIÓN DE RUIDO AI BIDIRECCIONAL

CPU

• Intel^® Socket LGA1700 for Intel^® Core™ 14th & 13th Gen Processors, Intel^® Core™ 12th Gen, Pentium^® Gold and Celeron^® Processors
• Supports Intel^® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• ** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel^® B760 Chipset

Memoria

• 4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel^® Extreme Memory Profile (XMP)
• OptiMem II
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Gráficos

• 1 x DisplayPort**
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• 1 x HDMI™port***
• ***Supports 4K@60Hz as specified in HDMI 2.1.

Ranuras de expansión

• Intel^® Core^TM Processors (14^th & 13^th & 12^th Gen)
• 1 x PCIe 5.0 x16 slot
• Intel^® B760 Chipset
• 1 x PCIe 4.0 x4 slot
• 1 x PCIe 3.0 x1 slot

Almacenamiento

• Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel^® Core^TM Processors (14^th & 13^th & 12^th Gen)
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel^® B760 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
• 4 x SATA 6Gb/s ports
• * Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth

• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth^® v5.3**
• * Wi-Fi 6GHz frequency band regulatory may vary between countries.
• ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 8 ports)
• 1 x USB 20Gbps port (1 x USB Type-C^®)
• 1 x USB 10Gbps port (1 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 8 ports)
• 1 x USB 10Gbps connector (supports USB Type-C^®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 3 x USB 2.0 headers support 5 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Rear optical S/PDIF out port
• - Premium audio capacitors
• - Dedicated audio PCB layers

Puertos de E/S del panel posterior

• 1 x USB 20Gbps port (1 x USB Type-C^®)
• 1 x USB 10Gbps port (1 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port

Conectores de E/S internos

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connectors
• Storage related
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 10Gbps connector (supports USB Type-C^® )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 3 x USB 2.0 headers support 5 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thunderbolt™ (USB4^®) header

Características especiales

• ASUS TUF PROTECTION
• - DIGI+ VRM (- Digital power design with DrMOS)
• - ESD Guards
• - TUF LANGuard
• - Overvoltage Protection
• - SafeSlot Core+
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - M.2 Q-Latch
• - PCIe Slot Q-Release
• - Q-Antenna
• - Q-DIMM
• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot   Device [yellow green])
• ASUS Thermal Solution
• - M.2 heatsinks
• - VRM heatsink design
• ASUS EZ DIY
• - CPU Socket lever protector
• - ProCool
• - Pre-mounted I/O shield
• - SafeDIMM
• AURA Sync
• - Addressable Gen 2 headers

Funciones de software

• ASUS Exclusive Software
• Armoury Crate
• - AURA Creator
• - AURA Sync
• - Fan Xpert 2+
• - Power Saving
• - Two-Way AI Noise Cancelation
• AI Suite 3
• - DIGI+ VRM
• - PC Cleaner
• TUF GAMING CPU-Z
• DTS Audio Processing
• MyASUS
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS Q-Antenna
• 1 x M.2 Rubber Package
• 1 x TUF Gaming sticker
• 2 x Screw packages for M.2 SSD
• Documentation
• 1 x TUF Certification card
• 1 x User guide

Sistema operativo

• Windows^® 11, Windows^® 10 64-bit

Factor de forma

• mATX Form Factor
• 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
