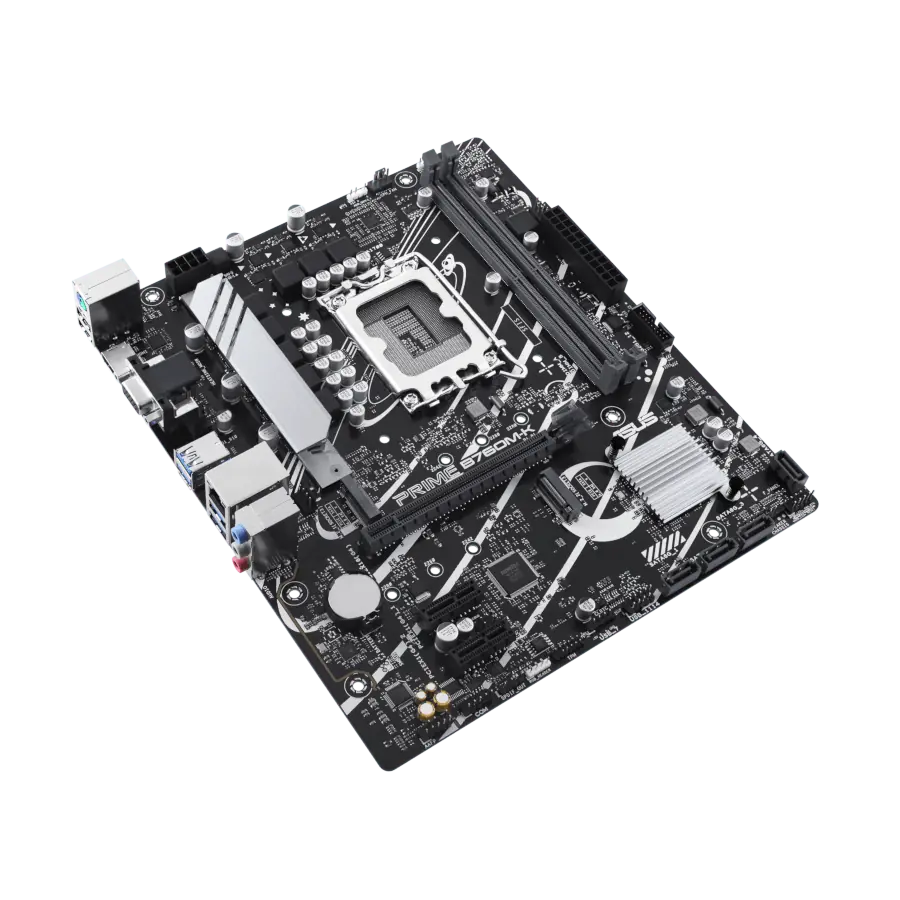

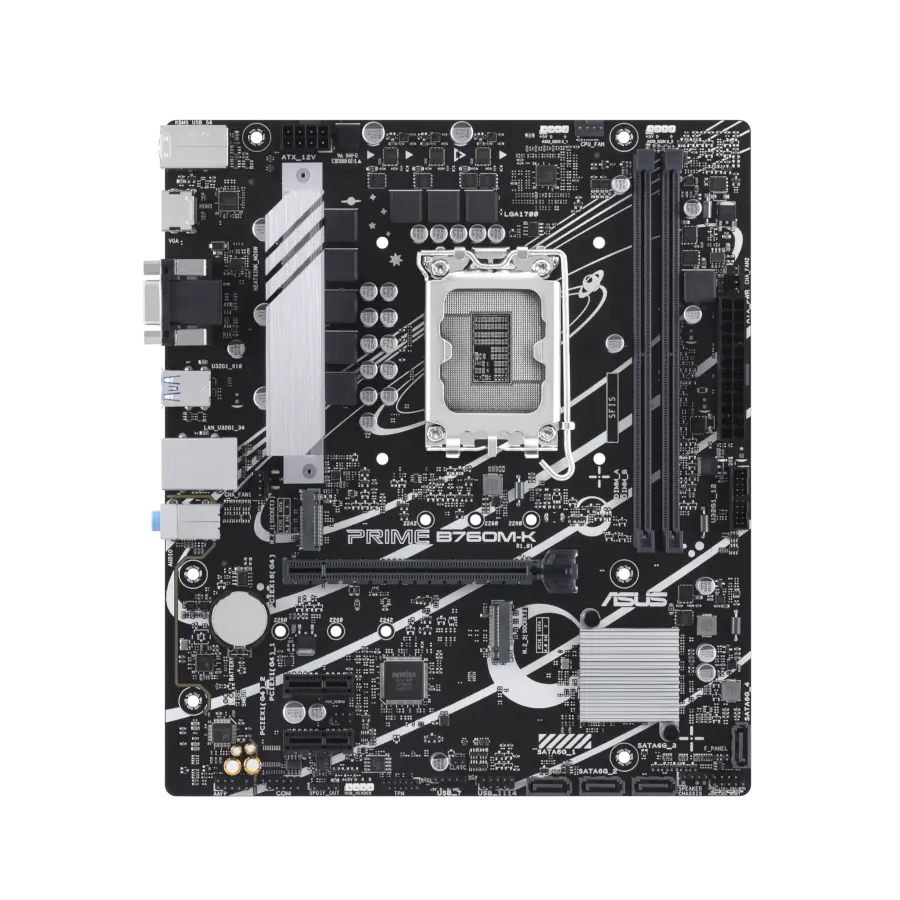

Motherboard ASUS PRIME B760M-K Intel LGA1700 mATX DDR5 PCIe 4.0 M.2 Gen4 2.5Gb

Las placas base ASUS de la serie Prime están diseñadas por expertos para liberar todo el potencial de los procesadores 13th Gen Intel® Core™. Con un diseño de potencia robusto, soluciones de refrigeración completas y opciones de ajuste inteligente, el PRIME B760M-K proporciona a los usuarios y a los constructores de PC DIY una serie de optimizaciones de rendimiento mediante funciones intuitivas de software y firmware.

• Socket Intel LGA 1700: Listo para procesadores Intel de 14a, 13a y 12a generación ®
• Conectividad ultrarrápida: PCIe 4.0, dos ranuras PCIe 4.0 M.2, Realtek Ethernet de 2,5 Gb y compatibilidad con USB 3.2 Gen 1 frontal
• Enfriamiento integral: disipador VRM, disipador PCH, cabezales de ventilador híbridos y Fan Xpert 2+
• Iluminación RGB Aura Sync: Encabezados direccionables Gen 2 integrados y encabezado Aura RGB para tiras LED RGB, fácilmente sincronizables con hardware compatible con Aura Sync

CPU

• Intel® Socket LGA1700 for Intel® CoreTM 14th & 13th Gen Processors, Intel® CoreTM 12th Gen, Pentium® Gold and Celeron® Processors*
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset

• Intel® B760 Chipset

Memoria

• 2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Gráficos

• 1 x VGA port
• 1 x HDMITM port**
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Supports 4K@60Hz as specified in HDMITM 2.1.

Ranuras de expansión

• Intel® CoreTM Processors (14th & 13th & 12th Gen)
• 1 x PCIe 4.0 x16 slot
• Intel® B760 Chipset
• 2 x PCIe 4.0 x1 slots

Almacenamiento

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel® CoreTM Processors (14th & 13th & 12th Gen)
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel® B760 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

• 1 x Realtek 2.5Gb Ethernet

USB

• Rear USB (Total 6 ports)
• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A）
• Front USB (Total 5 ports)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

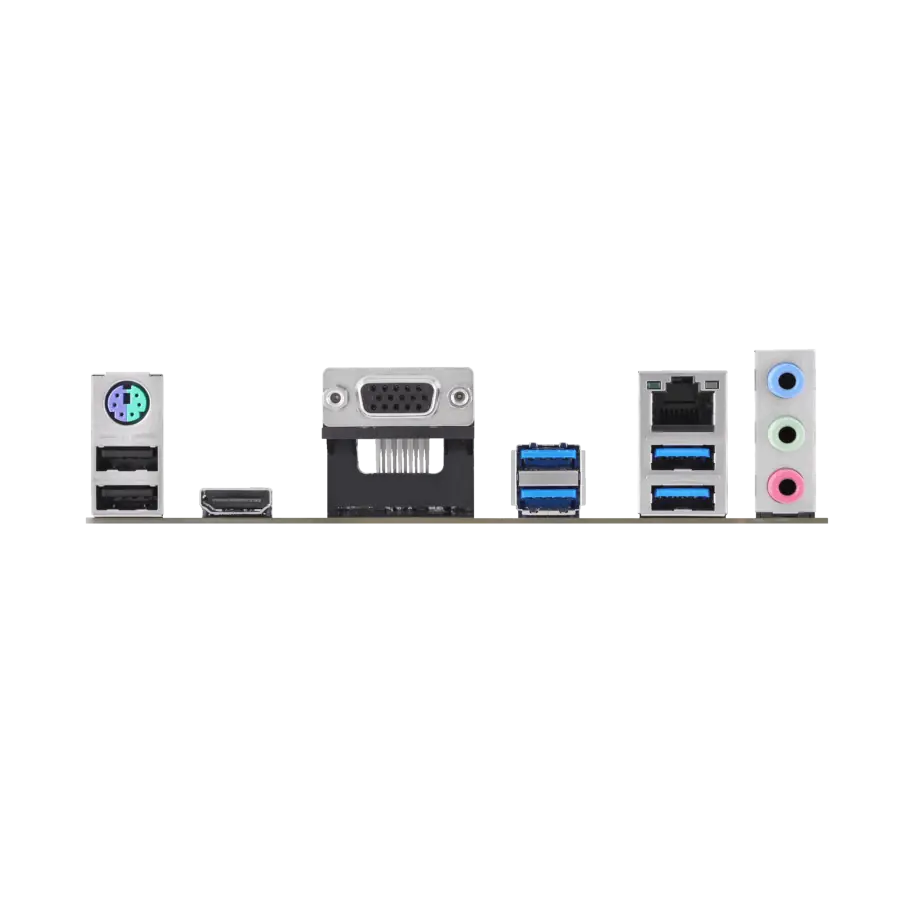

Puertos de E/S del panel posterior

• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x VGA port
• 1 x HDMITM port
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Conectores de E/S internos

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports
• Miscellaneous
• 2 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

Características especiales

• ASUS 5X PROTECTION III
• - DIGI+ VRM
• - LANGuard
• - Overvoltage Protection
• - SafeSlot Core
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - Q-DIMM
• - Q-LED Core
• - Q-Slot
• ASUS EZ DIY
• - ProCool
• ASUS Thermal Solution
• - VRM heatsink design
• Aura Sync
• - Aura RGB header
• - Addressable Gen 2 headers

Funciones de software

• ASUS Exclusive Software
• Armoury Crate
• - Aura Sync
• - Fan Xpert 2+
• - Power Saving
• - Two-Way AI Noise Cancellation
• AI Suite 3
• - DIGI+ VRM
• - PC Cleaner
• ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

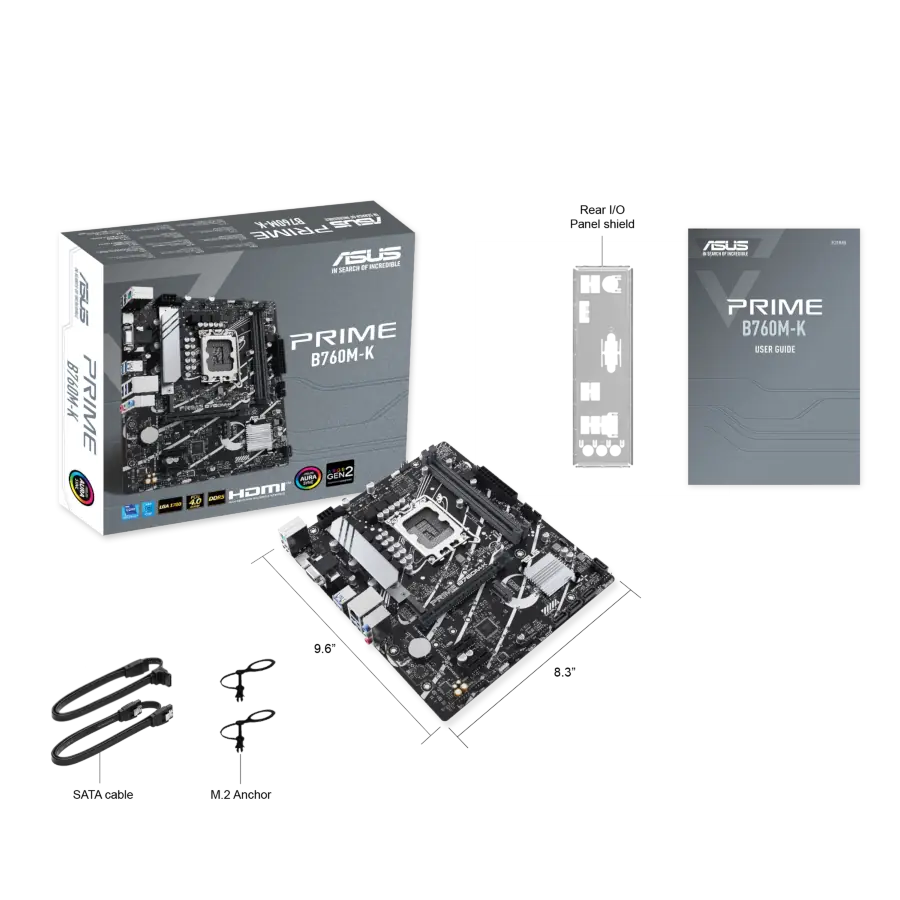

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous

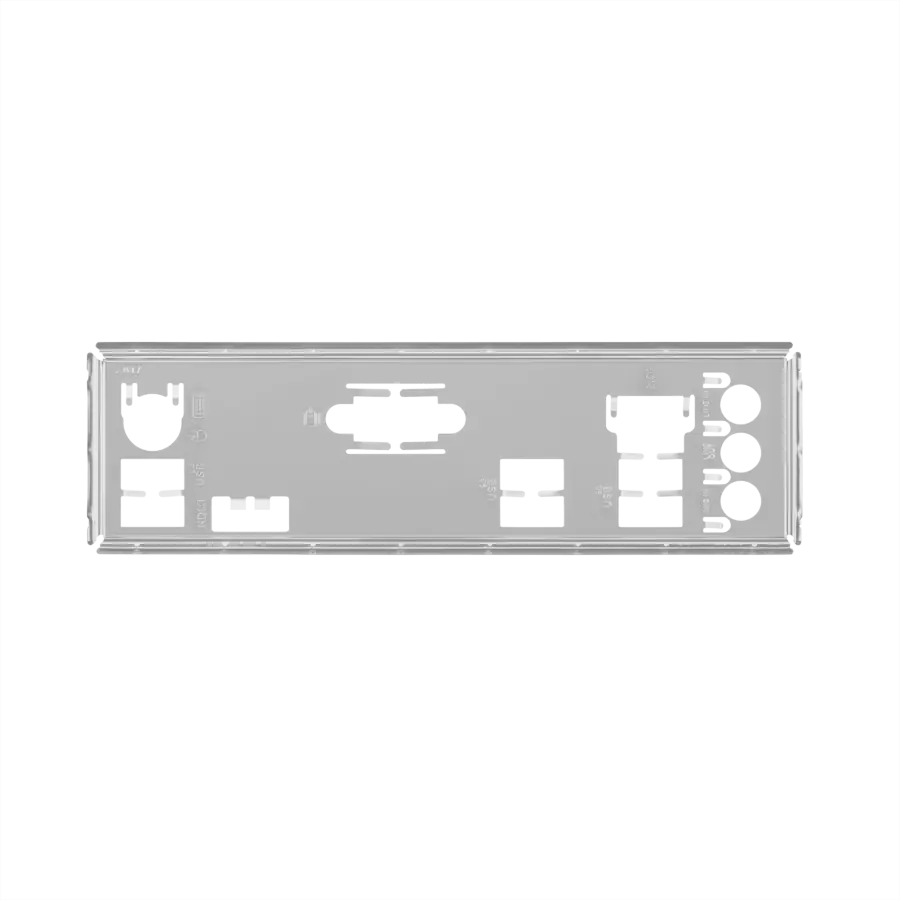

• 1 x I/O Shield
• 2 x M.2 anchors
• Documentation
• 1 x User guide

Sistema operativo

• Windows® 11, Windows® 10 64-bit

Factor de forma

• mATX Form Factor
• 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
