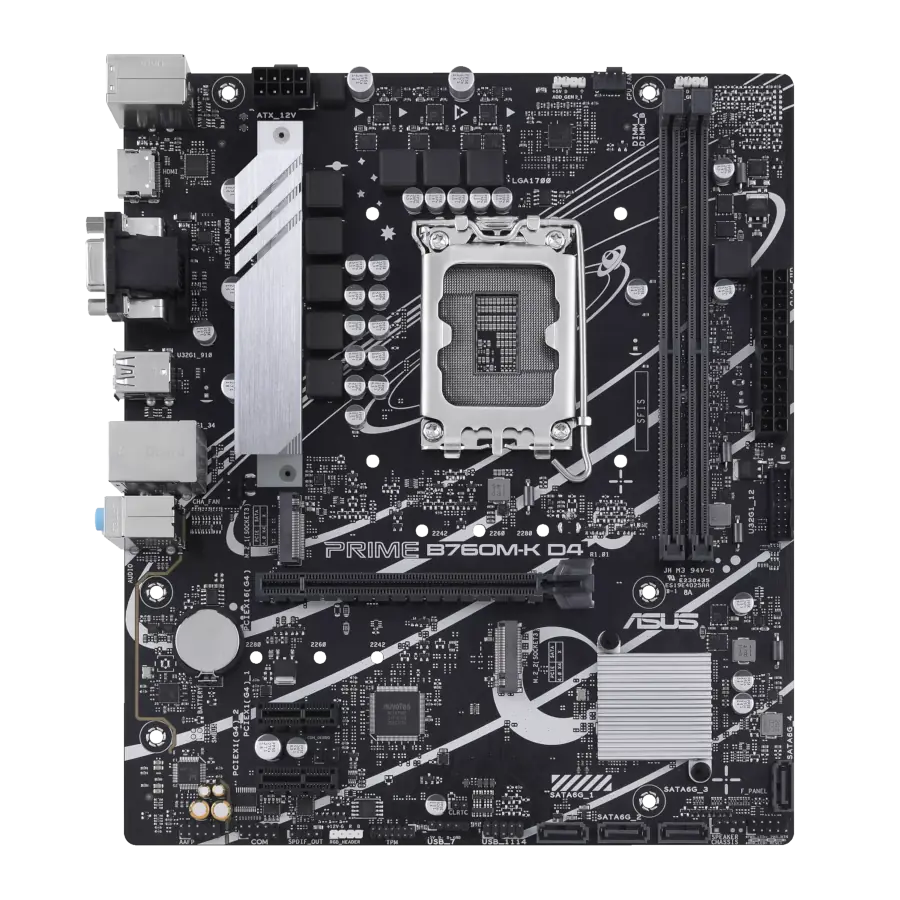

Motherboard ASUS PRIME B760M-K D4 Intel LGA1700 mATX DDR4 PCIe 4.0 M.2 Gen4 LAN 2.5Gb

Requiere actualización de BIOS para su uso con procesadores Intel de 14ª Generación

Para solicitar actualización de BIOS, ponete en contacto luego de realizar tu compra

Las motherboards de la serie Prime de ASUS están diseñadas por expertos para liberar todo el potencial de los procesadores Intel® Core™ de 13.ª generación. La PRIME B760M-K D4 cuenta con un diseño de alimentación sólido, soluciones de refrigeración completas y opciones de ajuste inteligente. Esta motherboard ofrece a los usuarios y amantes de los ordenadores a medida una amplia gama de optimizaciones de rendimiento a través de funciones de firmware y software intuitivo.

CPU

• Intel^® Socket LGA1700 for Intel^® Core™ 14^th & 13^th Gen Processors, Intel^® Core™ 12^th Gen, Pentium^® Gold and Celeron^® Processors
• Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**
• ** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel^® B760 Chipset

Memoria

• 2 x DIMM, Max. 64GB, DDR4
• 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel^® Extreme Memory Profile (XMP)

Gráficos

• 1 x VGA port
• 1 x HDMI^® port**
• ** Supports 4K@60Hz as specified in HDMI^® 2.1.

Ranuras de expansión

• Intel^® Core™ Processors (14^th &13^th & 12^th Gen)
• 1 x PCIe 4.0 x16 slot
• Intel^® B760 Chipset
• 2 x PCIe 4.0 x1 slots

Almacenamiento

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel^® Core™ Processors (14^th &13^th & 12^th Gen)
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel® B760 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• * Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

• 1 x Realtek 2.5Gb Ethernet

USB

• Rear USB (Total 6 ports)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A）
• Front USB (Total 5 ports)
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

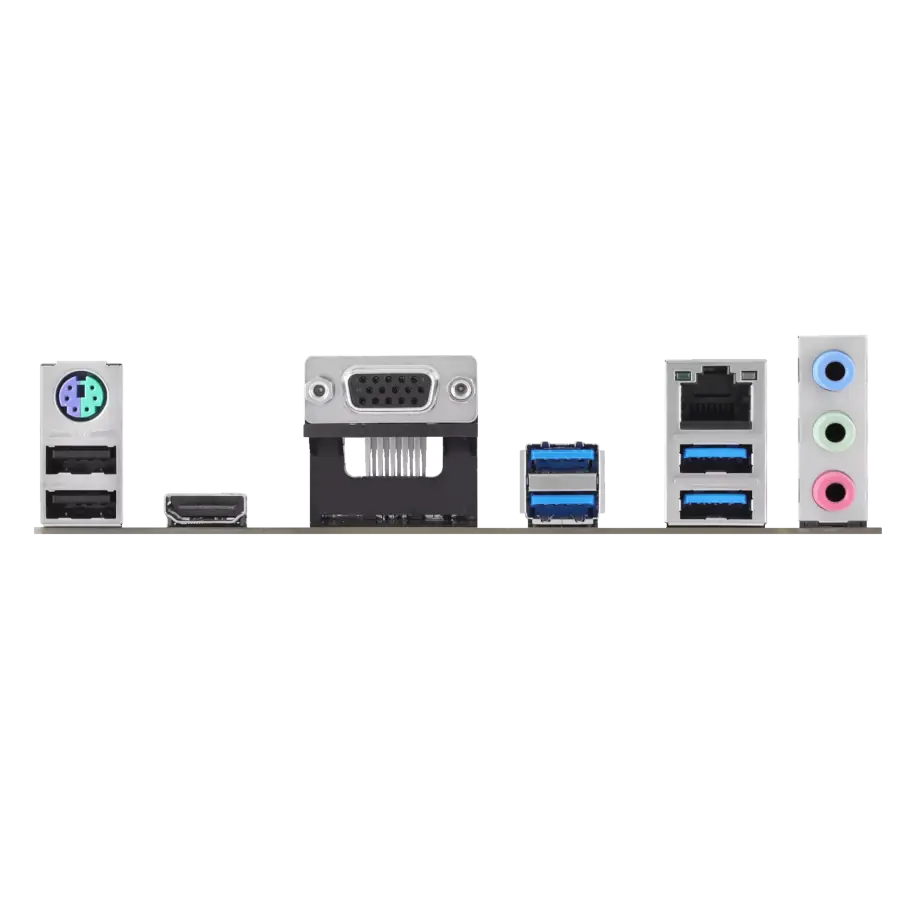

Puertos de E/S del panel trasero

• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x VGA port
• 1 x HDMI^® port
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Conectores de E/S internos

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports
• Miscellaneous
• 2 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

Funciones especiales

• ASUS 5X PROTECTION III
• - DIGI+ VRM
• - LANGuard
• - Overvoltage Protection
• - SafeSlot Core
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - Q-DIMM
• - Q-LED Core
• - Q-Slot
• ASUS EZ DIY
• - ProCool
• ASUS Thermal Solution
• - VRM heatsink design
• Aura Sync
• - Aura RGB header
• - Addressable Gen 2 headers

Software

• ASUS Exclusive Software
• Armoury Crate
• - Aura Sync
• - Fan Xpert
• - Power Saving
• AI Suite 3
• - DIGI+ VRM
• - PC Cleaner
• ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O Shield
• 2 x M.2 anchors
• Documentation
• 1 x User guide

Sistema operativo

• Windows^® 11, Windows^® 10 64-bit

Factor de forma

• mATX Form Factor
• 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
