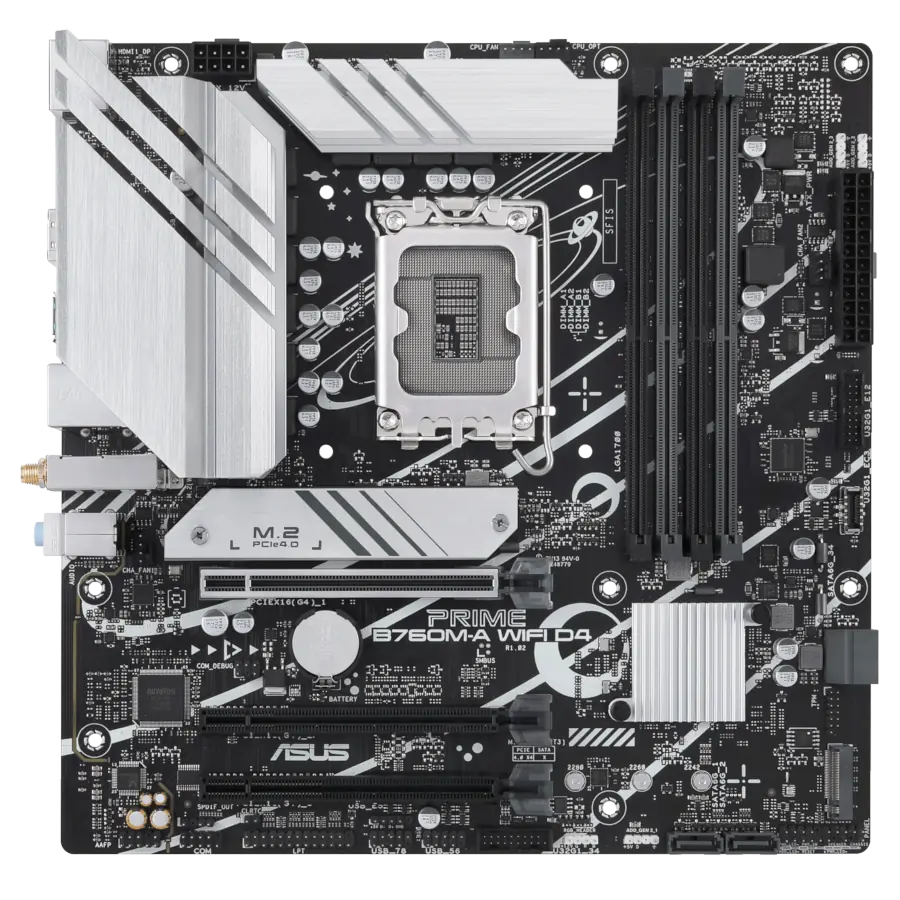

Motherboard ASUS PRIME B760M-A WIFI D4 mATX DDR4 PCIe 4.0 Wi-Fi 6 LAN 2.5Gb Intel LGA1700

Requiere actualización de BIOS para su uso con procesadores Intel de 14ª Generación

Para solicitar actualización de BIOS, ponete en contacto luego de realizar tu compra

Motherboard Intel® B760 (LGA 1700) mATX, PCIe 4.0, dos puertos M.2, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI® , SATA 6 Gbps, USB 3.2 Gen 2 posterior, USB 3.2 Gen 1 Type-C® frontal y Aura Sync

• Socket Intel® LGA 1700:Listo para procesadores Intel® de 13a y 12a generación.
• Conectividad ultrarrápida: PCIe 4.0, dos puertos M.2, Realtek 2.5Gb Ethernet, Wi-Fi 6, USB 3.2 Gen 2 posterior, USB 3.2 Gen 1 Type-C® frontal.
• Enfriamiento completo: Disipadores de calor VRM, disipador de calor M.2, disipador de calor PCH, puertos de ventilador híbrido y Fan Xpert 2+.
• ASUS OptiMem II: Enrutamiento cuidadoso de trazas y vías, además de optimizaciones de la capa base para preservar la integridad de la señal para mejorar el overclocking de la memoria.
• Iluminación Aura Sync RGB: Puertos Gen 2 direccionables integrados y puerto Aura RGB para tiras de LED RGB, sincronizados fácilmente con hardware compatible con Aura Sync.

CPU

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® B760 Chipset

Memoria

• 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II
• * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Gráficos

• 1 x DisplayPort**
• 2 x HDMI® ports***
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI® 2.1.

Ranuras de Expansión

• Intel® CoreTM Processors (14th & 13th & 12th Gen)
• 1 x PCIe 4.0 x16 slot
• Intel® B760 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 1 x PCIe 4.0 x16 slot (supports x1 mode)

Almacenamiento

• Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
• Intel® CoreTM Processors (14th & 13th & 12th Gen)
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel® B760 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

• 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

• Wi-Fi 6
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.2
• * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 6 ports)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A )
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 10 ports)
• 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 1 x USB 2.0 header supports 1 additional USB 2.0 port

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

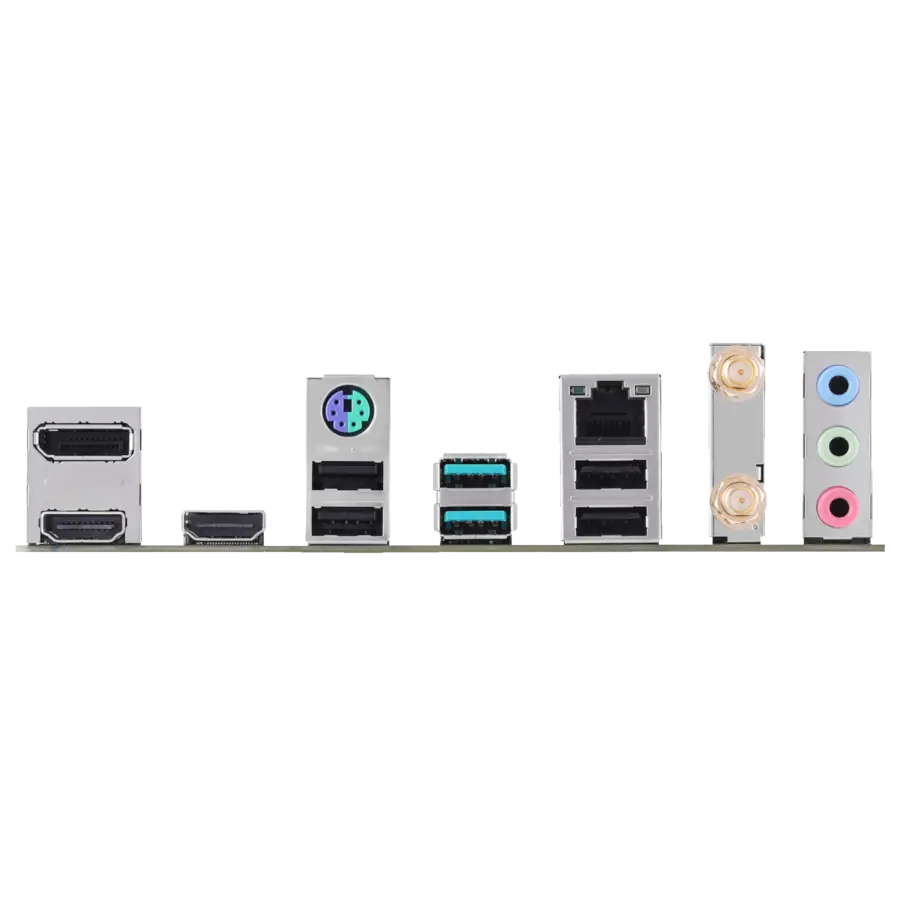

Puertos I/O Traseros

• 2 x USB 3.2 Gen 2 ports (2 x Type-A )
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 2 x HDMI® ports
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Conectores I/O Internos

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 2 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 1 x USB 2.0 header supports 1 additional USB 2.0 port
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x LPT header
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header with Chassis intrude function

Funciones Especiales

• ASUS 5X PROTECTION III
• - DIGI+ VRM
• - LANGuard
• - Overvoltage Protection
• - SafeSlot Core+
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - Q-DIMM
• - Q-LED Core
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink
• - VRM heatsink design
• ASUS EZ DIY
• - ProCool
• Aura Sync
• - Aura RGB header
• - Addressable Gen 2 headers

Funciones de Software

• ASUS Exclusive Software
• Armoury Crate
• - Aura Creator
• - Aura Sync
• - Fan Xpert 2+
• - Power Saving
• AI Suite 3
• - Digi+ VRM
• - PC Cleaner
• ASUS CPU-Z
• MyAsus
• Norton Deluxe (60 Days Free Trial)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

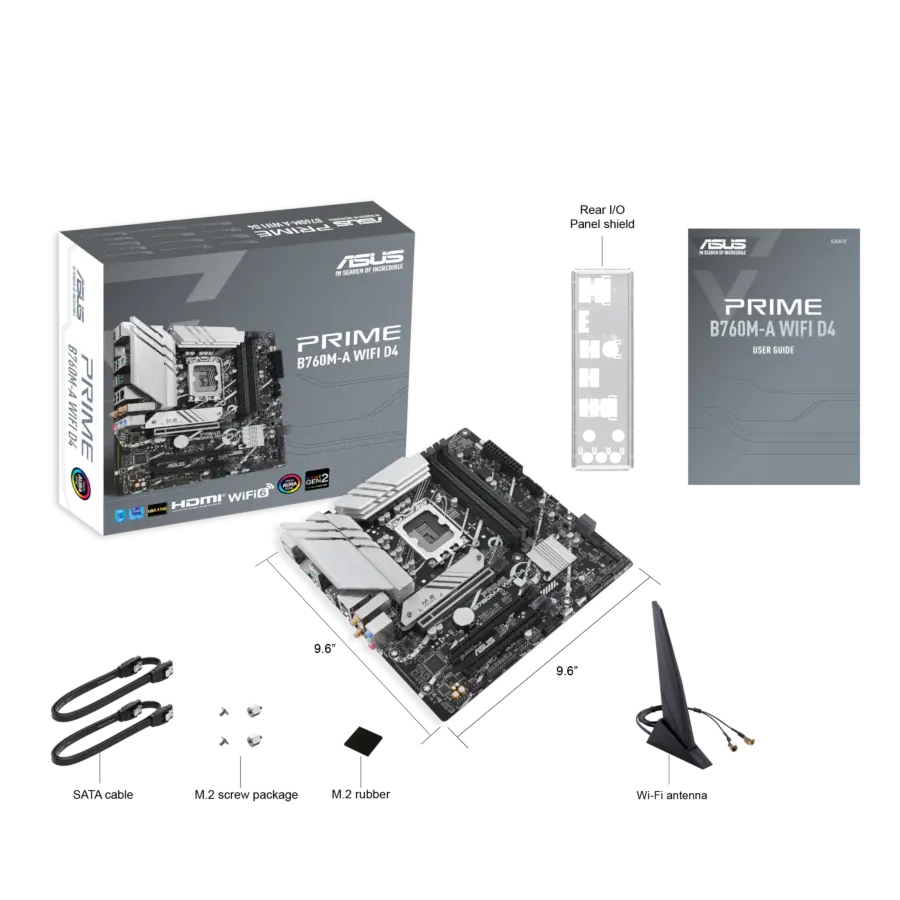

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS Wi-Fi moving antennas
• 1 x I/O Shield
• 1 x M.2 Rubber Package
• 1 x Screw package for M.2 SSD
• Documentation
• 1 x User guide

Sistema Operativo

• Windows® 11, Windows® 10 64-bit

Factor de Forma

• mATX Form Factor
• 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
