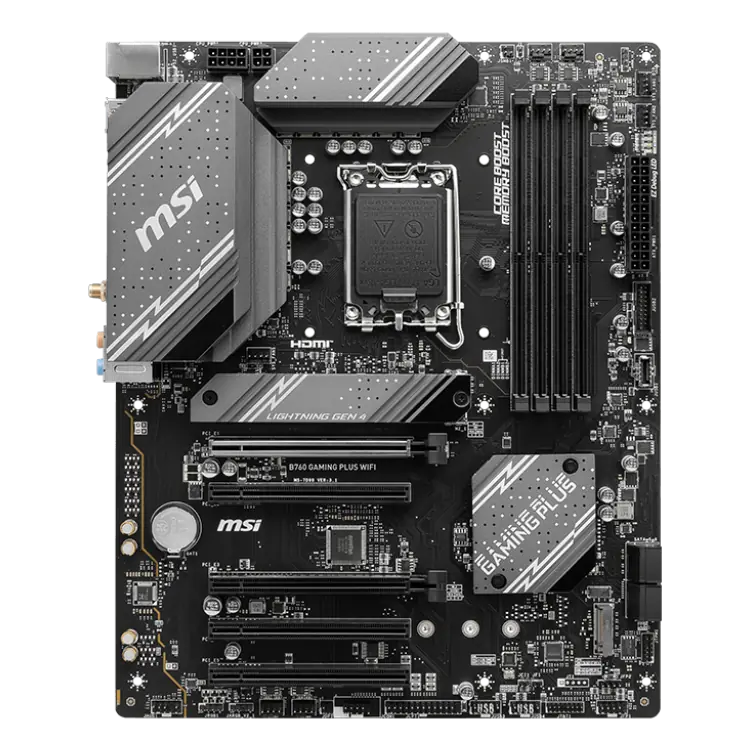

Motherboard MSI B760 GAMING PLUS WIFI DDR5 ATX Wi-Fi 6E BT 5.3 LAN 2.5G Intel LGA1700

B760 GAMING PLUS WIFI está diseñado con toneladas de conectividad, herramientas flexibles y una cómoda solución Wi-Fi con versión de memoria DDR5 para los gamers que lo quieren todo.

Chipset

• INTEL B760

CPU

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• LGA 1700

Memoria

• 4x DDR5, Maximum Memory Capacity 256GB
• Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Max. overclocking frequency:
• • 1DPC 1R Max speed up to 6800+ MHz
• • 1DPC 2R Max speed up to 6400+ MHz
• • 2DPC 1R Max speed up to 6000+ MHz
• • 2DPC 2R Max speed up to 5600+ MHz
• Supports Intel® XMP 3.0 OC
• Supports Dual-Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory

Gráficos integrados

• 1x HDMI™
• Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
• 1x DisplayPort
• Support DP 1.4, maximum resolution of 4K 60Hz*
• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Ranuras de expansión

• 5x PCI-E x16 slot (Qty)
• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

Almacenamiento

• 2x M.2 (Qty)
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 4x SATA 6G (Qty)
• * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 5Gbps Type A (Front)
• 1x USB 5Gbps Type C (Front)
• 2x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Rear)

LAN

• Realtek® RTL8125BG 2.5G LAN

LAN Inalámbrica y Bluetooth

• Intel® Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3, FIPS, FISMA
• * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
• ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Audio

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio
• Supports S/PDIF output

E/S Interna

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 5x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Printer Port (JLPT)
• 1x Com Port (JCOM)
• 1x TBT connector (JTBT, supports RTD3)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 5Gbps Type C ports

LED

• 4x EZ Debug LED

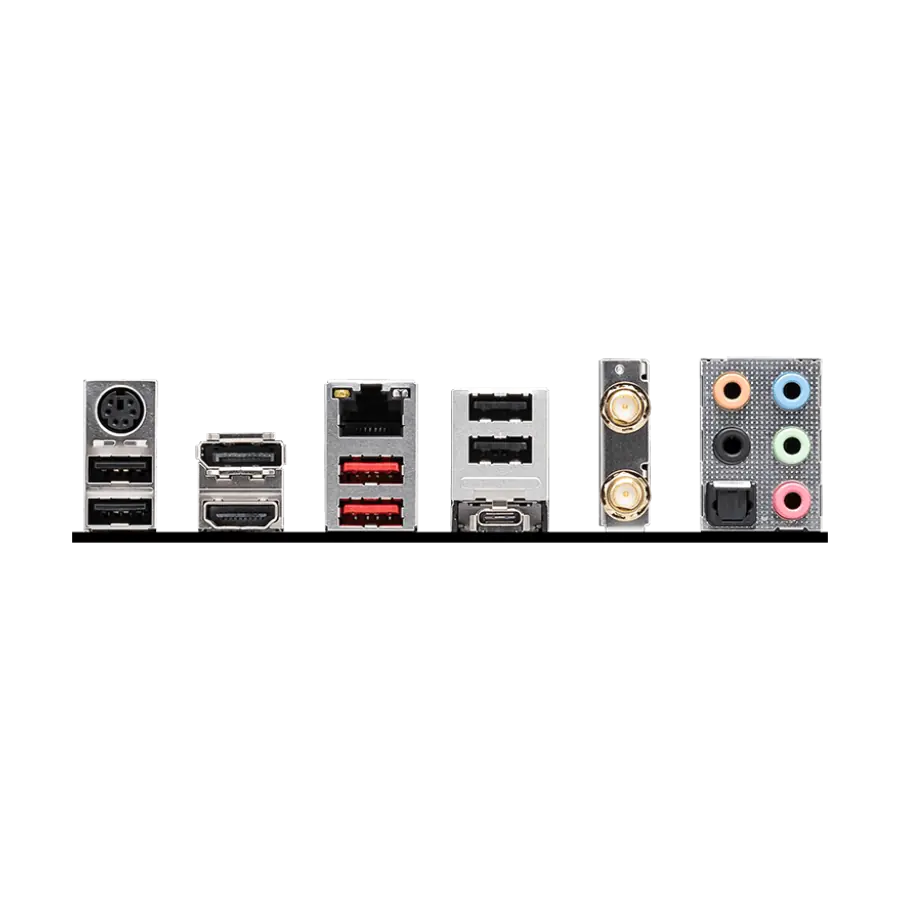

Puertos de panel trasero

• Keyboard / Mouse
• DisplayPort
• 2.5G LAN
• USB 2.0
• Wi-Fi / Bluetooth
• Audio Connectors
• USB 2.0
• HDMI™
• USB 3.2 Gen 2 10Gbps (Type-A)
• USB 3.2 Gen 2 10Gbps (Type-C)
• S/PDIF-OUT

Sistemas operativos

• Support for Windows® 11 64-bit, Windows® 10 64-bit

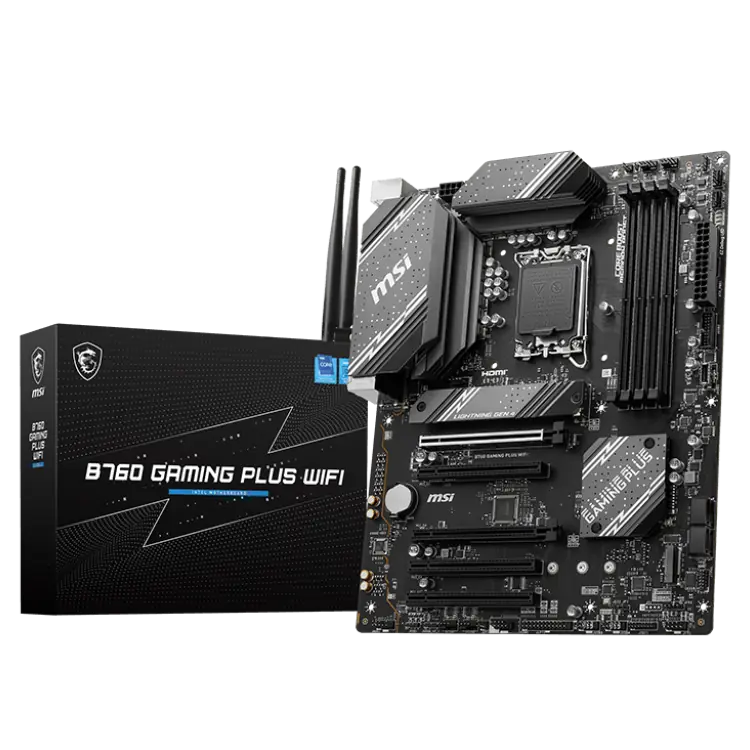

Contenido de la caja

• B760 GAMING PLUS WIFI
• Wi-Fi Antenna
• SATA Cables
• M.2 Screw / Standoff Set
• I/O Shield
• Quick Installation Guide
• European Union Regulatory Notice

Info PCB

• ATX
• 243.84mmx304.8mm
