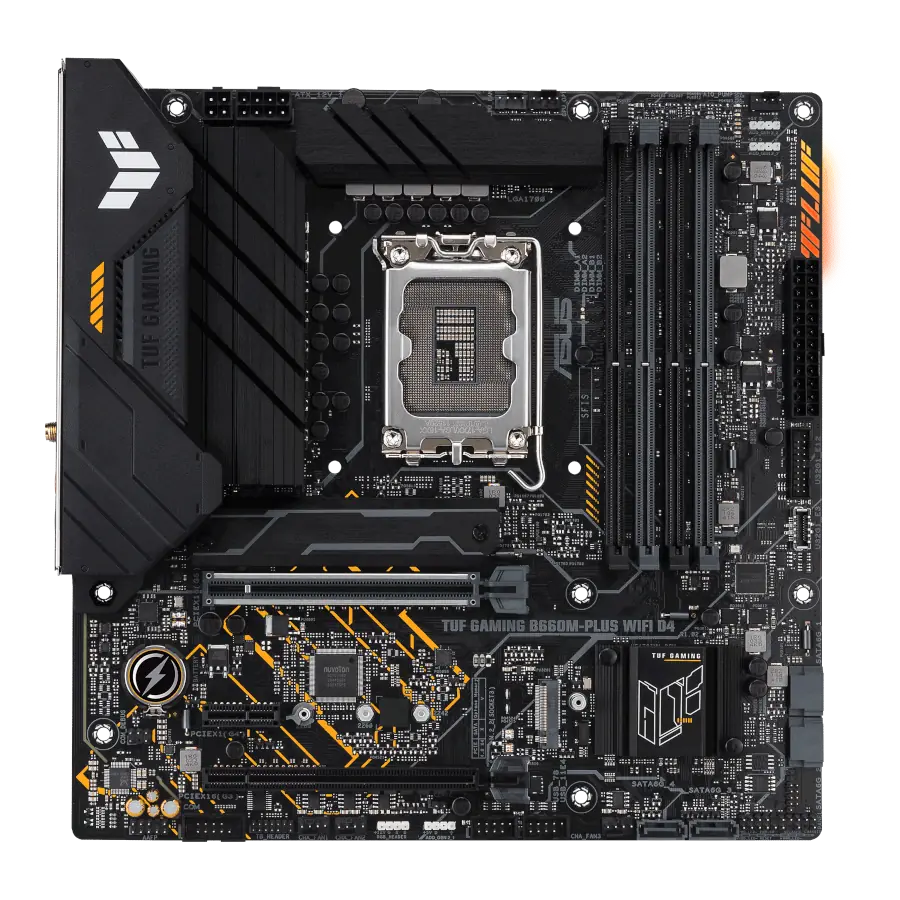

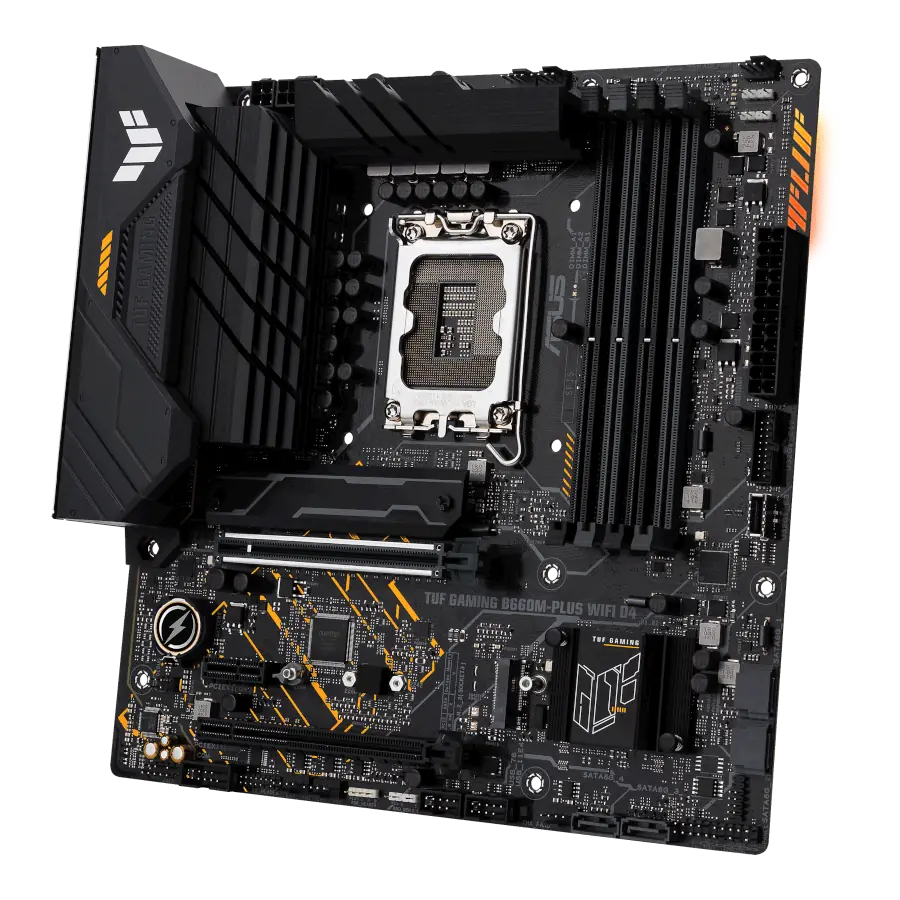

Motherboard ASUS TUF GAMING B660M-PLUS WIFI D4 mATX PCIe 5.0 Intel LGA1700 12va 13ra

Tarjeta madre Intel® B660 (LGA 1700) mATX, 10 + 1 fases de poder DrMOS, compatibilidad con PCIe 5.0, DDR4 5333 (OC), dos puertos M.2 PCIe 4.0 con disipador de calor flexible, Intel® Wi-Fi 6, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C® posterior, USB 3.2 Gen 1 Type-C® frontal, Aura Sync, Two-way AI Noise Cancelation

• Socket Intel® LGA 1700: Listo para procesadores Intel® de 13 a & 12a Gen.
• Solución de potencia mejorada: 10 + 1 fases de poder DrMOS, PCB de seis capas, sockets 8 + 4 ProCool, componentes TUF de grado militar y Digi + VRM para una máxima durabilidad.
• Refrigeración completa: Disipador de calor VRM ampliado, Stack Cool 3+, disipadores de calor M.2, disipador de calor PCH, puertos de ventilador híbridos y utilidad Fan Xpert 4.
• Última conectividad: Puerto PCIe 5.0, puertos M.2 PCIe 4.0, USB 3.2 Gen 2x2 Type-C® trasero, USB 3.2 Gen 2 Type-C®para panel frontal y Thunderbolt 4™.
• Diseñado para juegos en línea: Intel® WiFi 6, Realtek Ethernet de 2.5 Gb y TUF LANGuard.
• Two-way AI Noise-Cancelation: Reduce el ruido de fondo del micrófono y la salida de audio para una comunicación nítida en juegos o videoconferencias.

CPU

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® B660 Chipset

Memoria

• Memory Channels: 4DDR4 (Dual channel)
• Max Memory Size: 128GB
• 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II

Gráficos

• 1 x DisplayPort 1.4
• Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• 1 x HDMI™port
• Supports 4K@60Hz as specified in HDMI 2.1.

Ranuras de expansión

• Intel® 12th Gen Processors
• 1 x PCIe 5.0 x16 slot
• Intel® B660 Chipset
• 1 x PCIe 3.0 x16 slot (supports x4 mode)
• 1 x PCIe 4.0 x1 slot
• Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.

Almacenamiento

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel® 12th Gen Processors
• M.2_1 slot (Key M), type 2242/2260/2280
• - Intel® 12th Gen processors support PCIe 4.0 x4 mode.
• Intel® B660 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
• Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

• 1 x Realtek RTL8125B 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth

• Wi-Fi 6
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth® v5.2
• Bluetooth v5.2 function will be ready in Windows 11 or later.

USB

• Rear USB (Total 8 ports)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 4 x USB 3.2 Gen 2 ports (4 x Type-A)
• 1 x USB 3.2 Gen 1 port (1 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)*
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback "
• Audio Features
• - Audio Shielding
• - Rear optical S/PDIF out port
• - Premium audio capacitors
• - Dedicated audio PCB layers

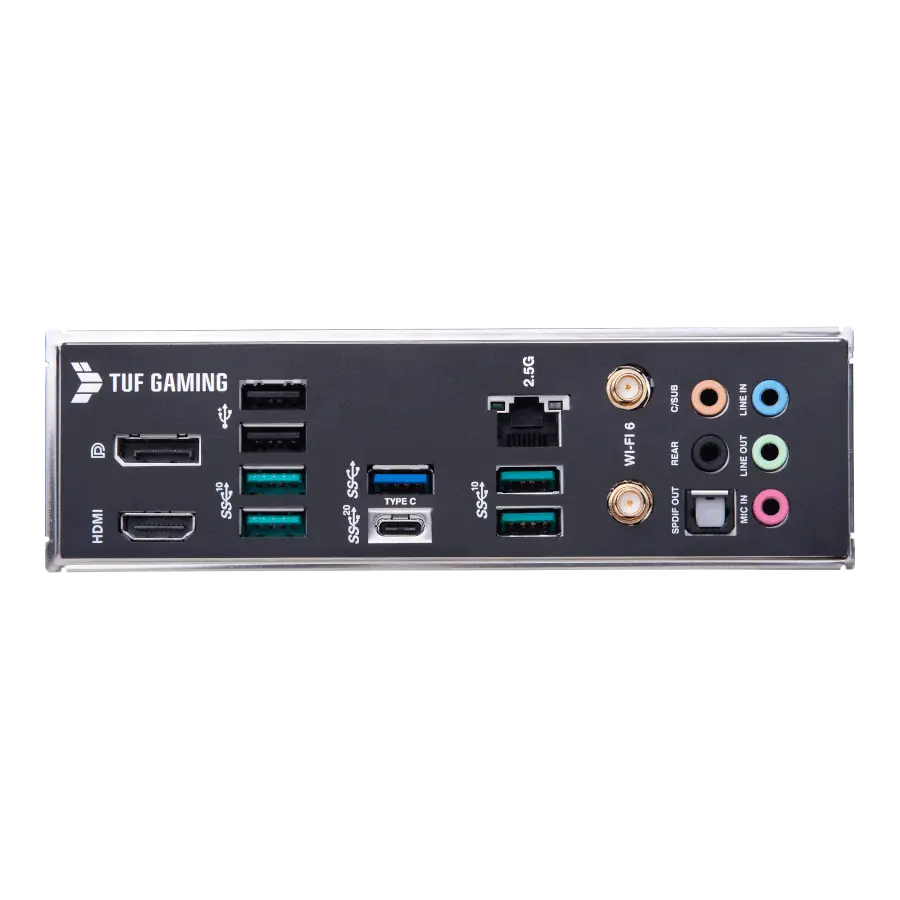

Puertos traseros de E/S

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 4 x USB 3.2 Gen 2 ports (4 x Type-A)
• 1 x USB 3.2 Gen 1 port (1 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port

Conectores internos de E/S

• I/O Connectors Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thunderbolt™ header

Funciones especiales

• ASUS TUF PROTECTION
• - DIGI+ VRM (- Digital power design with DrMOS)
• - ESD Guards
• - TUF LANGuard
• - Overvoltage Protection
• - SafeSlot
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - M.2 Q-Latch
• - Q-DIMM
• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• - Q-Slot
• ASUS Thermal Solution
• - Flexible M.2 heatsink
• - VRM heatsink design
• ASUS EZ DIY
• - CPU Socket lever protector
• - ProCool
• - Pre-mounted I/O shield
• - SafeDIMM
• AURA Sync
• - AURA RGB header
• - Addressable Gen 2 headers

Funciones de software

• ASUS Exclusive Software
• Armoury Crate
• - AURA Creator
• - AURA Sync
• - Fan Xpert 2+
• - Two-Way AI Noise Cancelation
• AI Suite 3
• - Performance And Power Saving Utility
• TurboV EVO
• EPU
• DIGI+ VRM
• TUF GAMING CPU-Z
• DTS Audio Processing
• MyASUS
• Norton Anti-virus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous

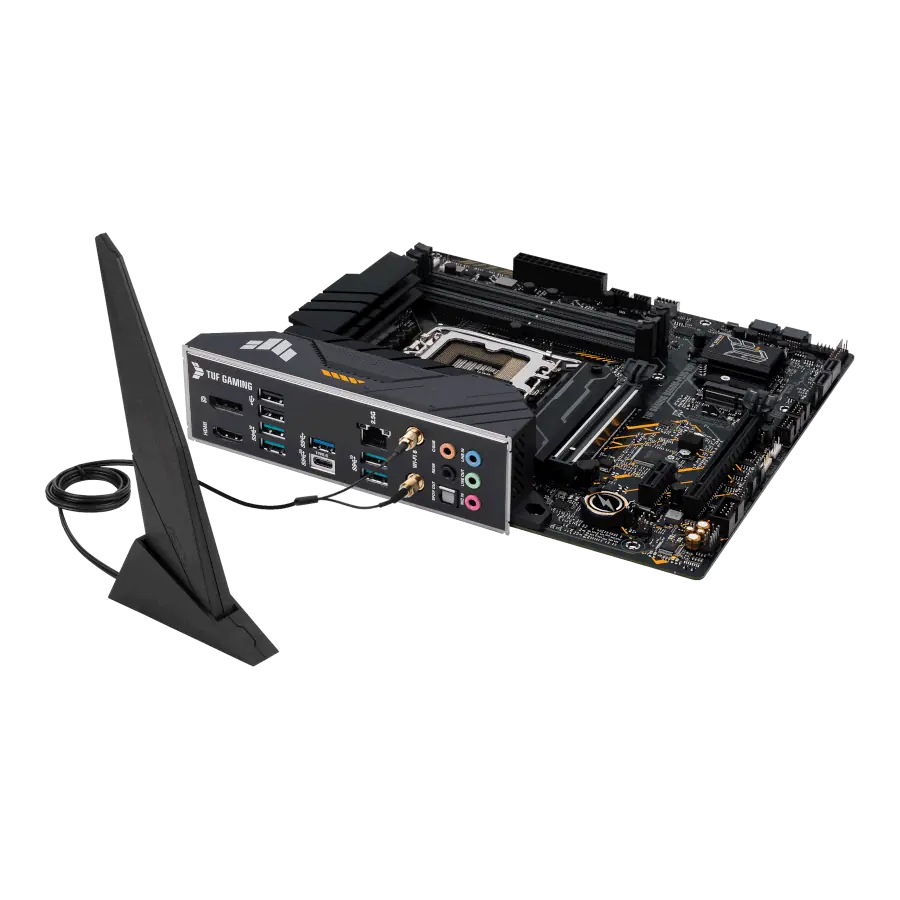

• 1 x ASUS Wi-Fi moving antennas
• 1 x M.2 Rubber Package
• 1 x M.2 SSD screw package
• 1 x TUF Gaming sticker
• Installation Media
• 1 x Support DVD
• Documentation
• 1 x TUF Certification card
• 1 x User guide

Sistemas operativos

• Windows® 11 64-bit
• Windows® 10 64-bit

Factor de forma

• microATX
• 24.4cm x 24.4cm
