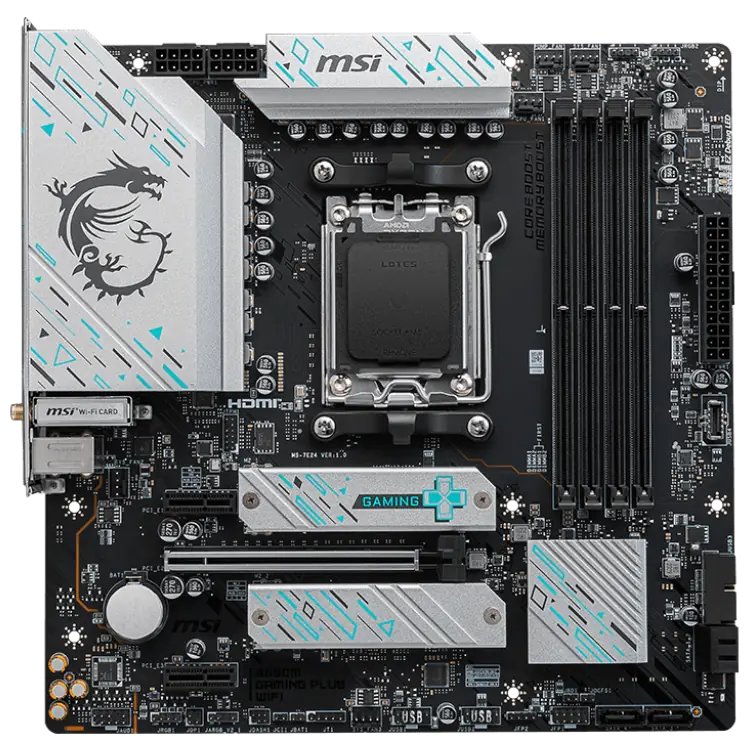

Motherboard MSI B650M GAMING PLUS WIFI DDR5 LAN 2.5G Wi-Fi 6E BT 5.3 AMD AM5

Chipset

• AMD B650

CPU

• Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors

Memoria

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports AMD EXPO™
• Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Gráficos integrados

• 1x HDMI™
• Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
• 1x DisplayPort
• Support DP 1.4, maximum resolution of 4K 60Hz*
• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Ranuras de expansión

• 1x PCI-E x16 slot (Qty)
• Supports x16 (For Ryzen™ 7000 Series processors)
• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4 (For Ryzen™ 5 8500G processor)
• 2x PCI-E x1 slot (Qty)
• PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

Almacenamiento

• 2x M.2 (Qty)
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
• 4x SATA 6G (Qty)

RAID

• Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 for M.2 NVMe storage devices

USB

• 4x USB 2.0 (Front)
• 4x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 3x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Rear)
• 1x USB 10Gbps Type C (Front)

LAN

• Realtek® RTL8125BG 2.5Gbps LAN

LAN Inalámbrica y Bluetooth

• AMD Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX
• Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3**
• * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
• ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Audio

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

E/S Interna

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 3x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Tuning Controller connector(JDASH)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 2x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports

LED

• 4x EZ Debug LED

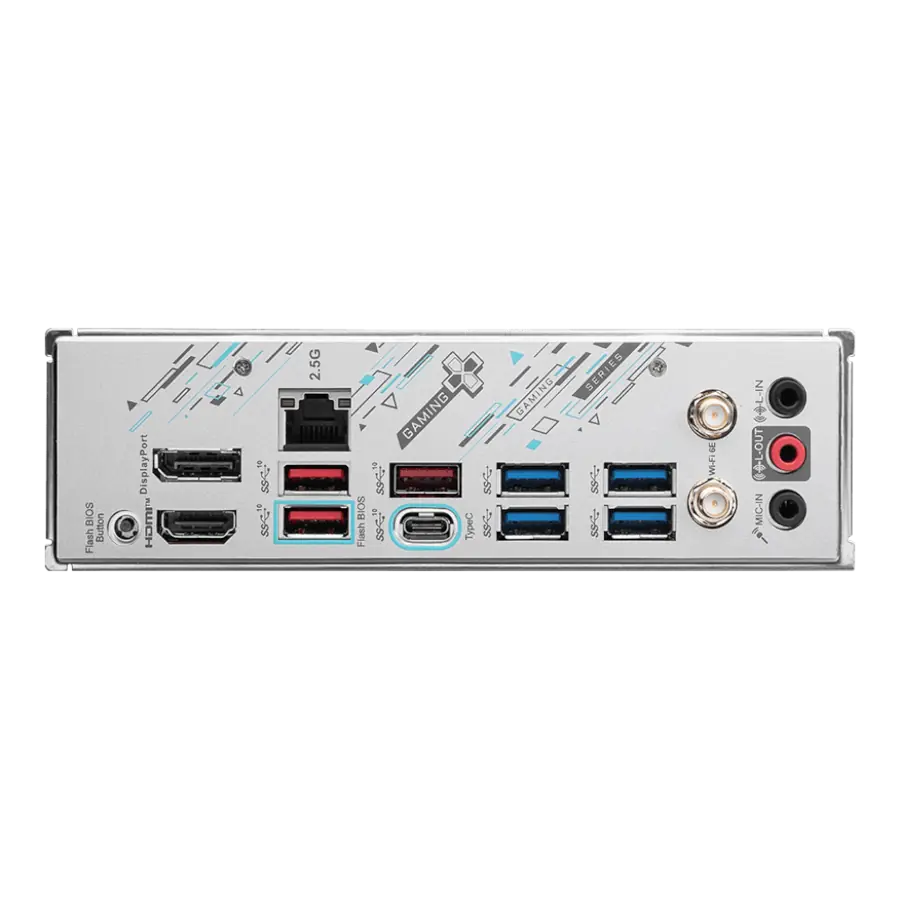

Puertos de panel trasero

• 1x DisplayPort
• 1x HDMI™
• 1x 2.5G LAN
• 3x USB 3.2 Gen 2 10Gbps (Type-A)
• 4x USB 3.2 Gen 1 5Gbps (Type-A)
• 1x USB 3.2 Gen 2 10Gbps (Type-C)
• 2x Wi-Fi / Bluetooth
• 1x Flash BIOS Button
• 3x Audio connectors

Sistemas operativos

• Support for Windows® 11 64-bit, Windows® 10 64-bit

Contenido de la caja

• B650M GAMING PLUS WIFI
• 1x SATA Cable
• 2x M.2 Clip
• Wi-Fi Antenna
• Quick Installation Guide
• European Union Regulatory Notice

Info PCB

• mATX
• 243.84mmx243.84mm
