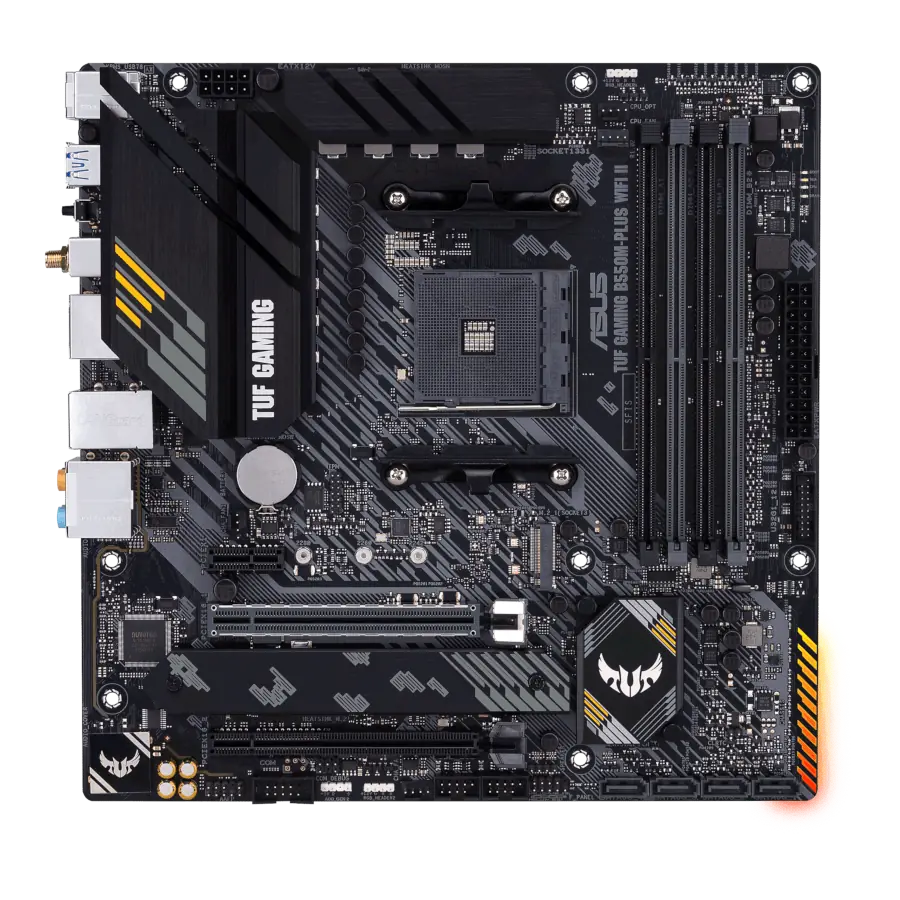

Motherboard ASUS TUF GAMING B550M-PLUS WIFI II mATX Wi-Fi 6 BT 5.2 RGB AMD AM4

Placa base de gaming micro-ATX AMD B550 (Ryzen AM4) con PCIe 4.0, Dos M.2, 10 etapas de alimentación DrMOS, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen. 2 de tipo A y tipo C e iluminación Aura Sync RGB

• Zócalo AMD AM4: Compatible con los procesadores AMD Ryzen™ de las series 5000, 5000 G, 4000 G y 3000.
• Alimentación mejorada: 8+2 etapas de potencia, toma ProCool, componentes TUF y Digi+ VRM para una vida útil más larga.
• Refrigeración completa: Disipadores VRM, PCH y M.2, conectores de ventilación híbrida y Fan Xpert 2+.
• Conectividad de próxima generación: M.2 PCIe 4.0, USB 3.2 Gen. 2 de tipo A tipo C.
• Diseñada para gaming online: Wi-Fi 6, Realtek 2.5 Gb Ethernet y TUF LANGuard.
• Cancelación de ruido bidireccional con IA: Reduce el ruido de fondo del micrófono y la salida de audio para que te comuniques con claridad mientras juegas y participas en videoconferencias.

CPU

• AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Chipset

• AMD B550

Memoria

• Canales de memoria:4DDR4 (doble canal)
• Tamaño de memoria máximo:128GB
• 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory*
• Dual Channel Memory Architecture
• * ECC Memory (ECC mode) support varies by CPU.

Gráficos

• 1 x DisplayPort**
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.2.
• 1 x HDMI®port***
• *** Supports 4K@60Hz as specified in HDMI 2.1.

Ranuras de expansión

• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x16 mode)*
• AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
• 1 x PCIe 3.0 x16 slot (supports x16 mode)*
• AMD B550 Chipset
• 1 x PCIe 3.0 x16 slot (supports x4 mode)**
• 1 x PCIe 3.0 x1 slot**
• * Support PCIe bifurcation for RAID on CPU function.
• ** PCIEX16_2 will run x2 mode when PCIEX1 slot is used.

Almacenamiento

• Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
• AMD B550 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports
• Support RAID 0, 1, 10

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth

• Wi-Fi 6
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.2

USB

• USB trasero:8 puertos en total
• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• USB frontal:Total 6 ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Rear optical S/PDIF out port
• - Premium audio capacitors
• - Dedicated audio PCB layers
• - Audio cover

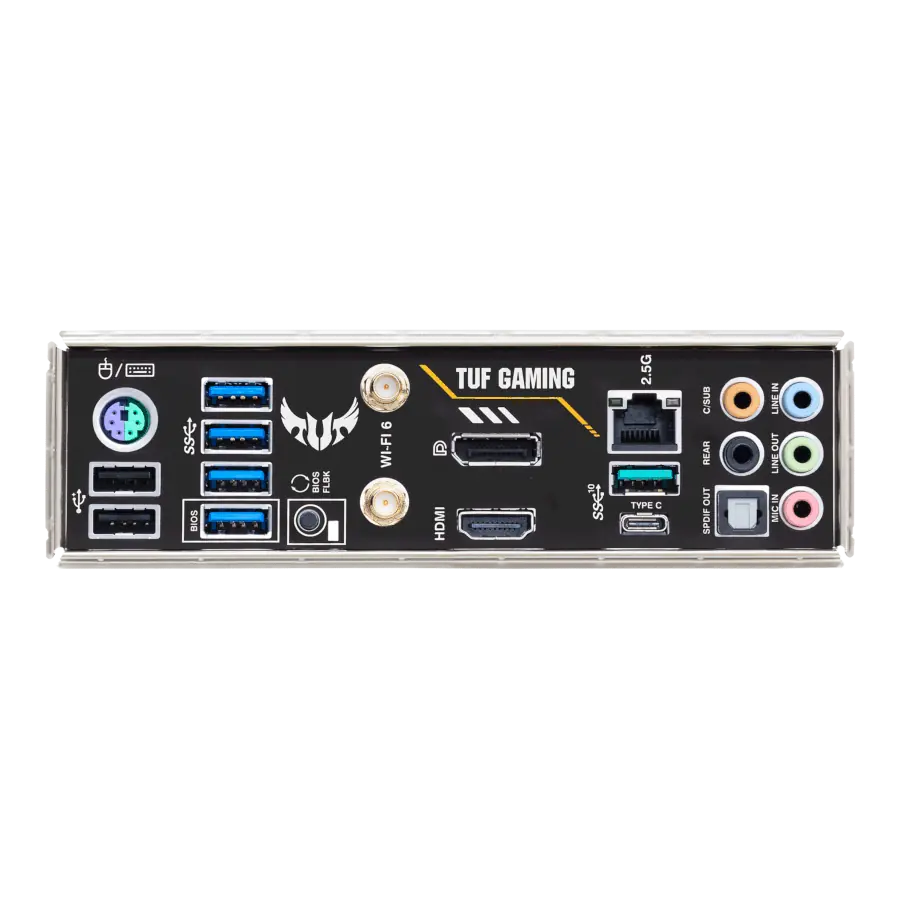

Puertos de E / S del panel posterior

• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack™)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x PS/2 Keyboard/Mouse combo port

Conectores de E / S internos

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 2 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 1 x Addressable Gen 2 header
• 2 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

Características especiales

• ASUS TUF PROTECTION
• - DIGI+ VRM (Digital power design with DrMOS)
• - Enhanced DRAM Overcurrent Protection
• - ESD Guards
• - TUF LANGuard
• - Overvoltage Protection
• - SafeSlot
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - Q-DIMM
• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink
• - VRM heatsink design
• ASUS EZ DIY
• - BIOS FlashBack™ button
• - BIOS FlashBack™ LED
• - ProCool
• AURA Sync
• - AURA RGB headers
• - Addressable Gen 2 header

Funciones de software

• ASUS Exclusive Software
• Armoury Crate
• - Aura Creator
• - Aura Sync
• - Two-Way AI Noise Cancelation
• AI Suite 3
• - Performance And Power Saving Utility
•   TurboV EVO
•   EPU
•   DIGI+ VRM
•   Fan Xpert 2+
• - EZ update
• TUF GAMING CPU-Z
• AI Charger
• DAEMON Tools
• DTS Custom for GAMING Headsets
• Norton Anti-virus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS Wi-Fi moving antennas
• 1 x I/O Shield
• 1 x M.2 Rubber package
• 1 x M.2 SSD screw package
• 1 x TUF Gaming sticker
• Installation Media
• 1 x Support DVD
• Documentation
• 1 x TUF Certification card
• 1 x User guide

Sistema operativo

• Windows® 11 ready
• Windows® 10 64-bit

Factor de forma

• microATX
• 24.4cm x 24.4cm
