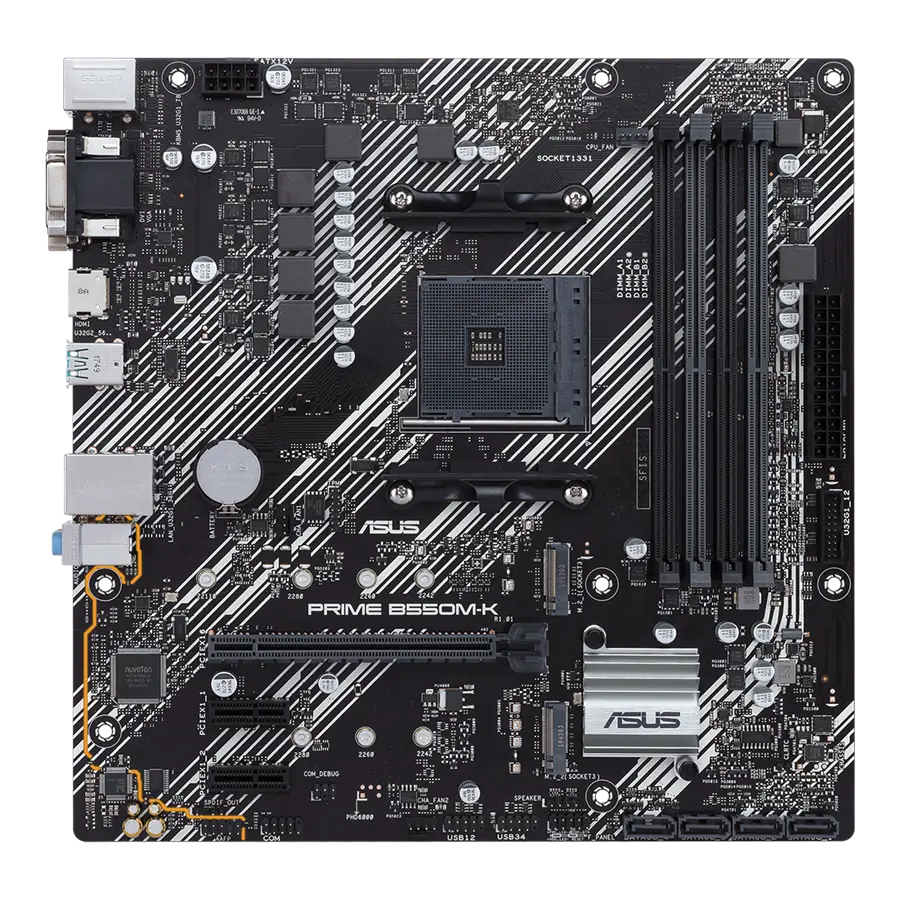

Motherboard ASUS PRIME B550M-K AMD AM4 DDR4 PCIe 4.0 M.2 Gen4

La serie ASUS Prime está diseñada para aprovechar todo el rendimiento potencial de los procesadores AMD Ryzen de 3.ª Gen. Equipadas con un potente diseño de alimentación, soluciones de refrigeración completas y opciones de ajuste inteligentes, las tarjetas madre de la serie Prime B550 incluyen ajustes de rendimiento muy intuitivos vía software y firmware.

CPU

• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors.

Chipset

• AMD B550

Memoria

• 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
• Dual Channel Memory Architecture

Gráficos

• 1 x HDMI 2.1(4K@60HZ)

Slots de Expansión

• AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
• AMD B550 Chipset
• 2 x PCIe 3.0 x1
• 1 x PCIe 4.0 x16 (x16 mode)
• 1 x PCIe 3.0 x16 (x16 mode)

Almacenamiento

• AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors:
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors:
• Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
• 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
• AMD B550 Chipset:
• 4 x SATA 6Gb/s port(s)
• Support Raid 0, 1, 10
• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

LAN

• Realtek RTL8111H 1Gb Ethernet,ASUS LANGuard

Audio

• Realtek ALC887/897
• 7.1 Surround Sound High Definition Audio CODEC
• - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
• - LED-illuminated design
• - Audio Shielding
• - Dedicated audio PCB layers
• - Premium Japanese audio capacitors
• Audio Feature:
• Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Puertos USB

• 4 x USB 2.0 port(s)(4 x Type-A),Front USB Port ( Total 6 ),Rear USB Port ( Total 6 ),2 x USB 3.2 Gen 2 port(s)(2 x Type-A),2 x USB 3.2 Gen 1 port(s)(2 x Type-A),4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

Funciones de software

• ASUS Exclusive Software
• Armoury Crate
• AI Suite 3
• - Performance And Power Saving Utility
• TurboV EVO
• EPU
• Digi+ VRM
• Fan Xpert 2+
• - EZ update
• ASUS CPU-Z
• AI Charger
• DAEMON Tools
• Norton Anti-virus software (Free Trial for 60 days)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

Características especiales de ASUS

• ASUS 5X PROTECTION III
• - ASUS DIGI+ VRM
• - ASUS LANGuard
• - ASUS Overvoltage Protection
• - ASUS SafeSlot Core
• - ASUS Stainless-Steel Back I/O
• ASUS Q-Design
• - ASUS Q-DIMM
• - ASUS Q-Slot
• ASUS Thermal Solution
• - Aluminum heatsink design
• ASUS Lighting Control

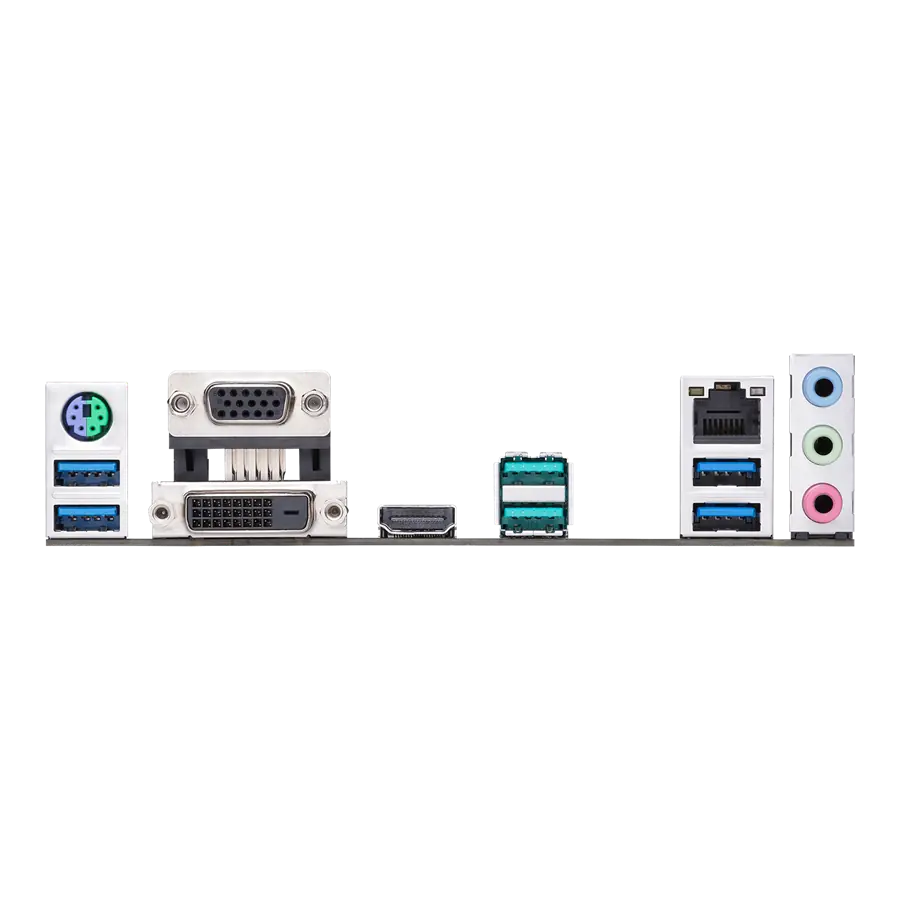

Puertos I/O Traseros

• 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
• 4 x USB 3.2 Gen 1 (blue) Type-A
• 1 x DVI-D
• 1 x D-Sub
• 3 x Audio jack(s)
• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x HDMI
• 1 x LAN (RJ45) port(s)

I/O Interno

• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
• 2 x Chassis Fan connector(s)
• 1 x System panel connector
• 1 x Speaker connector
• 1 x CPU Fan connector(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x SPI TPM header
• 4 x SATA 6Gb/s connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Clear CMOS jumper(s)
• 1 x COM port header
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)

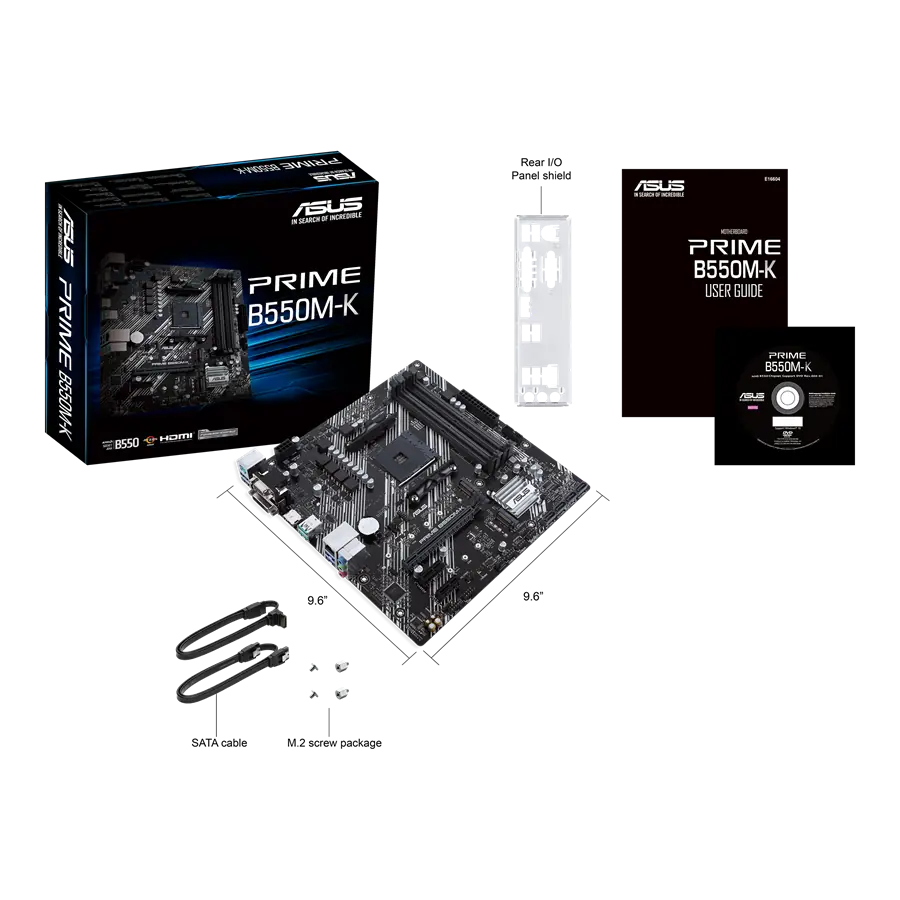

Accesorios

• 1 x M.2 SSD screw package(s)
• User´s manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x Supporting DVD

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Capacidad de gestión

• WOL by PME, PXE

Sistema Operativo

• Windows® 10 64-bit

Factor de forma

• mATX Form Factor,9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
