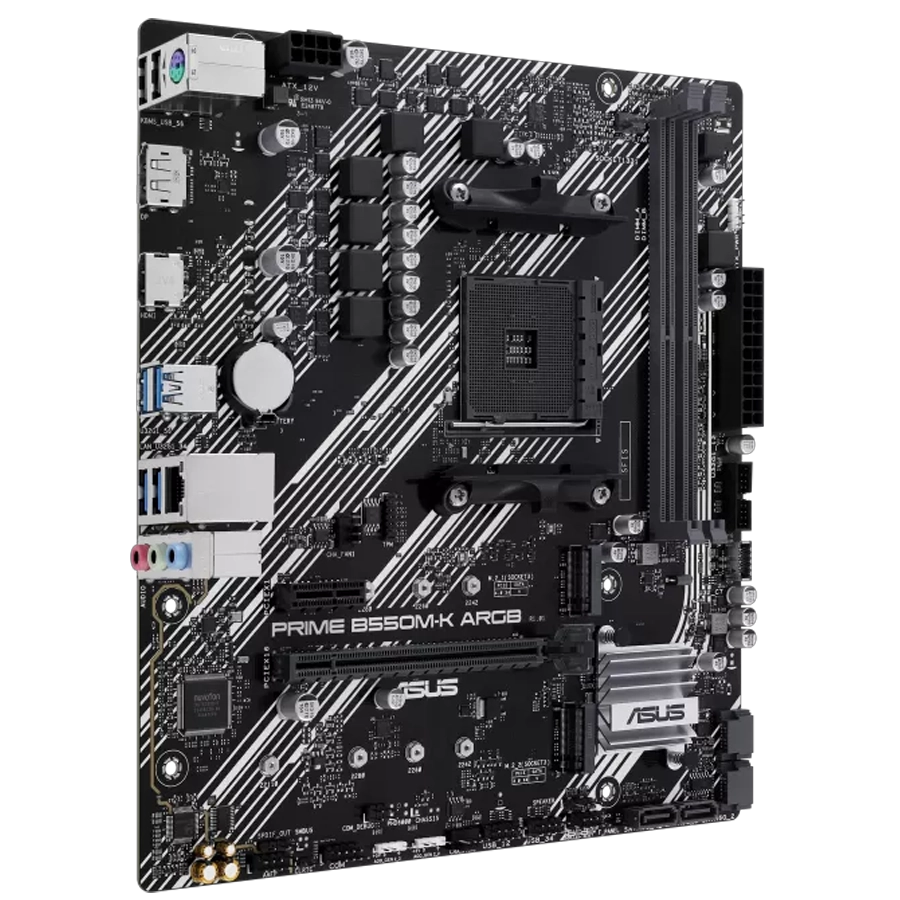

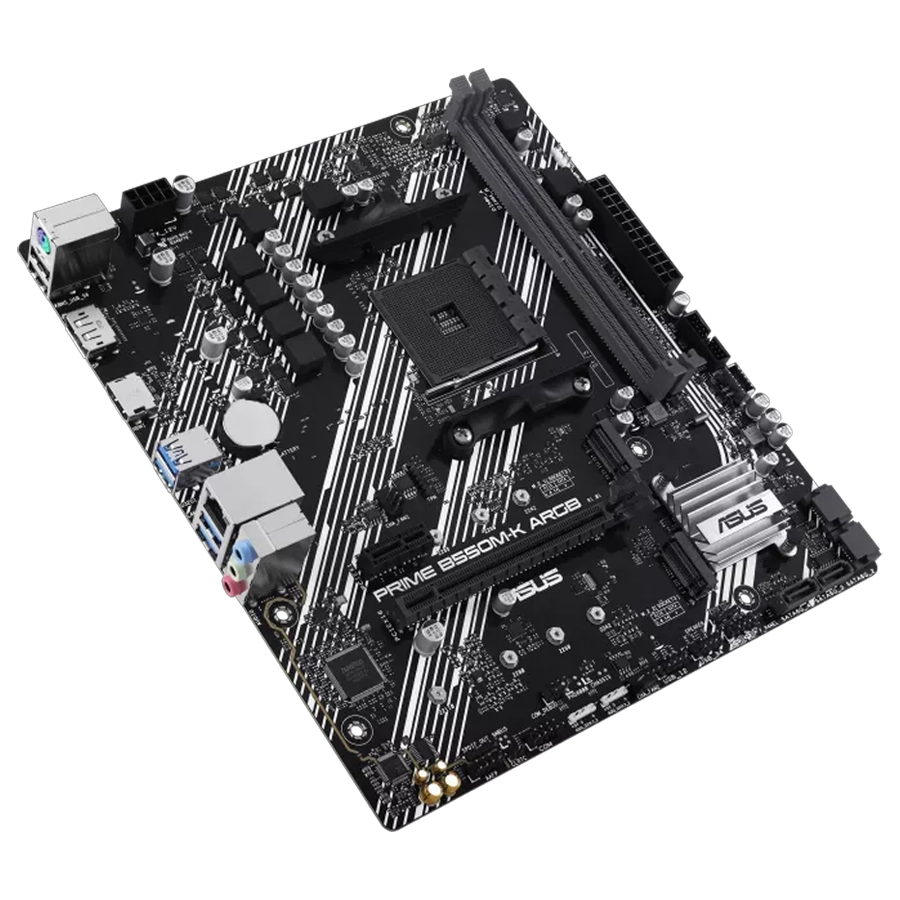

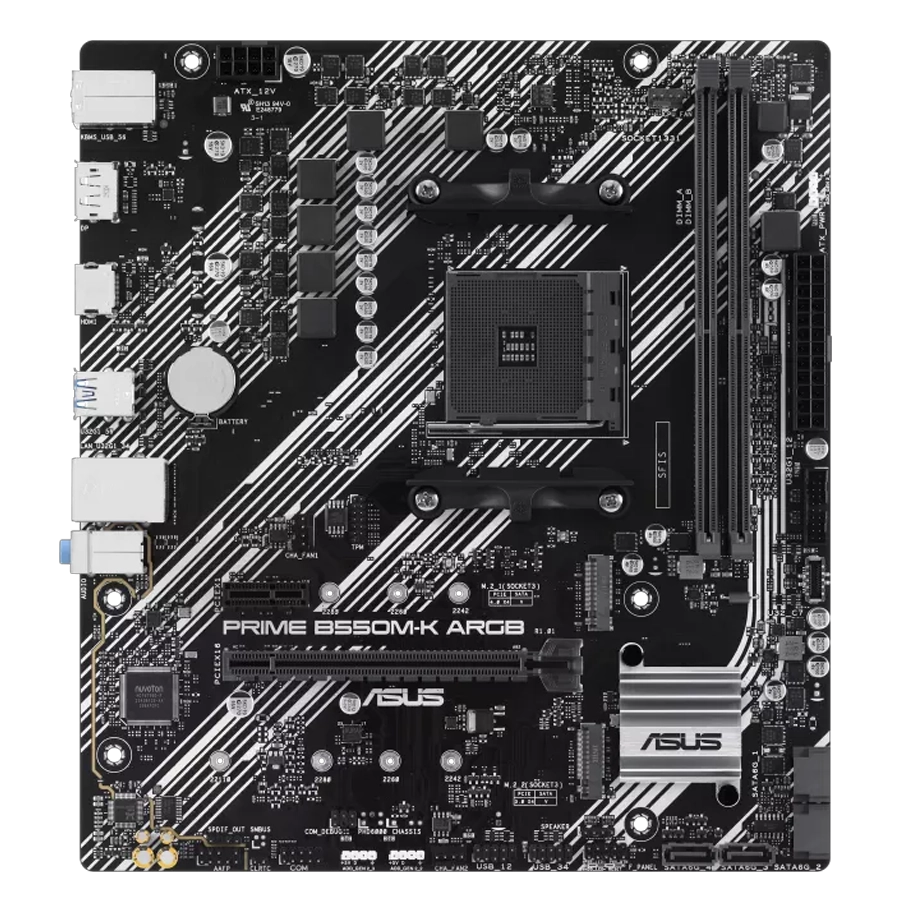

Motherboard ASUS PRIME B550M-K ARGB AMD AM4 mATX DDR4 PCIe 4.0 M.2 Gen4

La serie ASUS PRIME está diseñada por expertos para liberar todo el potencial de la plataforma AMD Ryzen de la serie 5000/ serie 5000 G/ serie 4000 G/ serie 3000. Con un diseño de potencia robusto, soluciones de refrigeración completas y opciones de ajuste inteligente, las placas base de la serie PRIME B550 ofrecen a los usuarios diarios y a los constructores de PC DIY una serie de opciones de ajuste del rendimiento mediante funciones intuitivas de software y firmware.

Placa base AMD B550 (Ryzen™ AM4) mATX con dos ranuras M.2, PCIe 4.0, Realtek 1Gb Ethernet, DisplayPort/HDMI™, SATA 6 Gbps, puertos USB 3.2 Gen 1 traseros, USB 3.2 Gen 1 Type-C frontal y Aura Sync

• Socket AMD AM4: Listo para AMD Ryzen™ Procesadores de escritorio serie 5000/serie 5000 G/serie 4000 G/serie 3000
• Conectividad ultrarrápida: PCIe 4.0, ranuras M.2 duales, Ethernet Realtek de 1 Gb, puertos USB 3.2 Gen 1 traseros y USB 3.2 Gen 1 frontal Type-C®
• Enfriamiento integral: disipador PCH, cabezales de ventilador híbridos y Fan Xpert 2+
• Iluminación RGB Aura Sync: Encabezados direccionables Gen 2 integrados para tiras LED RGB, fácilmente sincronizables con hardware compatible con Aura Sync

CPU

• AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors*

Chipset

• AMD B550 Chipset

Memoria

• 2 x DIMM slots, Max. 64GB, DDR4 5100(OC)/4866(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory*
• Dual Channel Memory Architecture
• * ECC memory (ECC mode) support varies by CPU.

Gráficos

• 1 x DisplayPort**
• 1 x HDMI™ port***
• * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.

Ranuras de expansión

• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x16 mode)
• AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
• 1 x PCIe 3.0 x16 slot (supports x16 mode)
• AMD B550 Chipset
• 1 x PCIe 3.0 x1 slot

Almacenamiento

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
• AMD B550 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports
• * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet

• 1 x Realtek 1Gb Ethernet

USB

• Rear USB (Total 6 ports)
• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

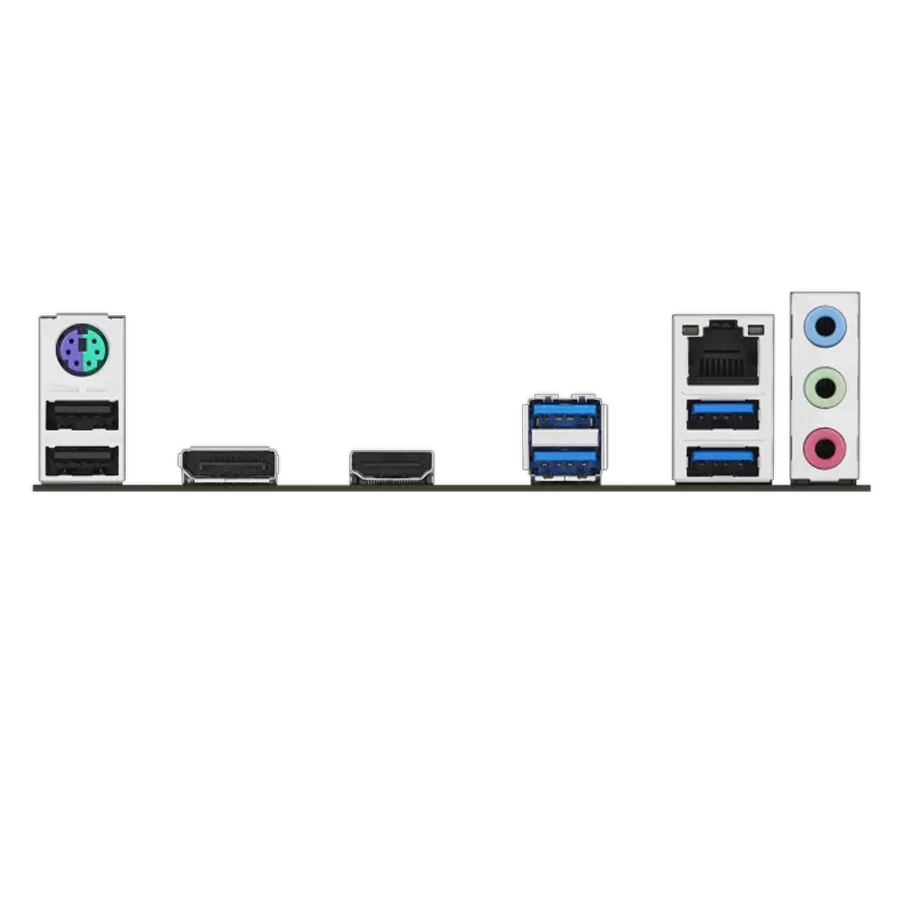

Puertos de E/S del panel posterior

• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Conectores de E/S internos

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin System Panel header

Características especiales

• ASUS 5X PROTECTION III
• - DIGI+ VRM
• - LANGuard
• - Overvoltage Protection
• - SafeSlot Core
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - Q-DIMM
• - Q-LED Core
• - Q-Slot
• ASUS Thermal Solution
• - Aluminum heatsink design
• Aura Sync
• - Addressable Gen 2 headers

Funciones de software

• ASUS Exclusive Software
• Armoury Crate
• - Aura Creator
• - Aura Sync
• AI Suite 3
• - Performance And Power Saving Utility
•  TurboV EVO
•  EPU
•  DIGI+ VRM
•  Fan Xpert 2+
• - EZ update
• ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O Shield
• 1 x Screw package for M.2 SSD
• Documentation
• 1 x User guide

Sistema operativo

• Windows® 11, Windows® 10 64-bit

Factor de forma

• micro-ATX Form Factor
• 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
