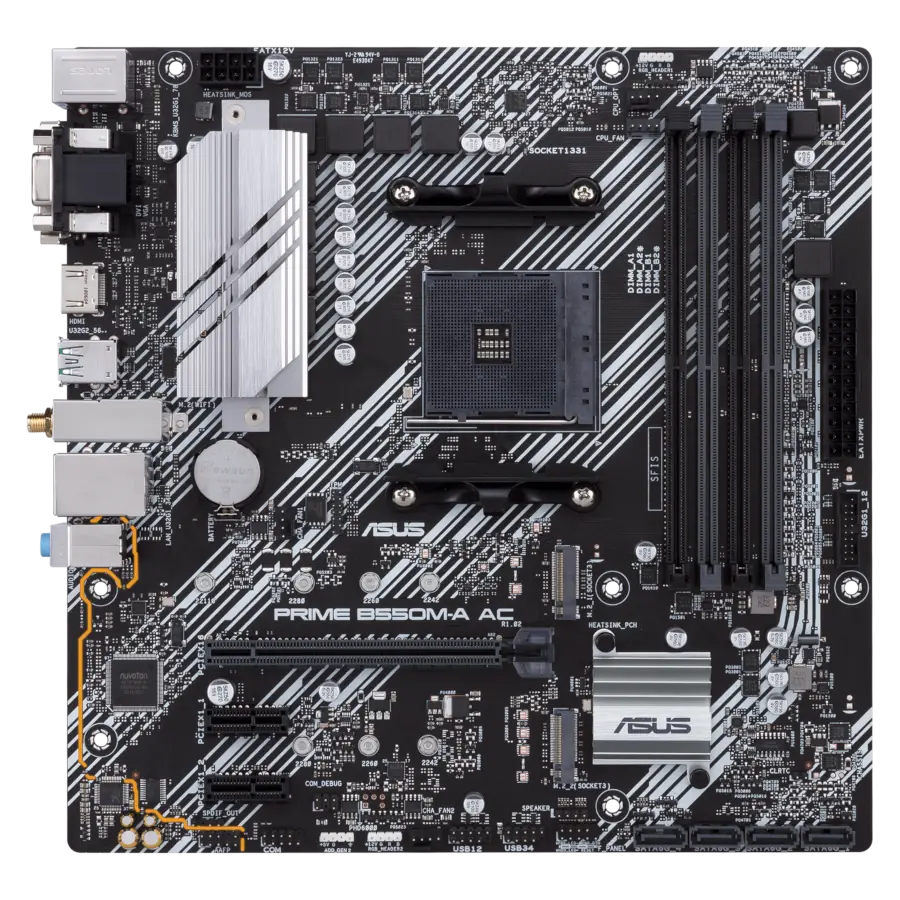

Motherboard ASUS PRIME B550M-A AC mATX AMD AM4 WiFi PCIe 4.0 Aura Sync

Tarjeta madre AMD AM4 mATX con PCIe 4.0, dual M.2, WiFi, HDMI, D-Sub, DVI, SATA 6 Gbps, puertos USB 3.2 Gen 2 e iluminación Aura Sync RGB

• Socket AMD AM4: Listo para procesadores Ryzen™ de escritorio Series 5000, 4000G y 3000.
• Refrigeración completa: Disipador de VRM, disipador de PCH y Fan Xpert 2+.
• Conectividad ultrarrápida: Dual M.2, PCIe 4.0, Wi-Fi 802.11ac, USB 3.2 Gen 2 tipo A.
• Aura Sync RGB: Efectos LED sincronizables en una amplia gama de equipos de PC compatibles, incluidas tiras RGB direccionables.

CPU

• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Chipset

• AMD B550

Memoria

• 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory

Gráficos

• 1 x HDMI 2.1(4K@60HZ)

Slots de Expansión

• AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors,AMD B550 Chipset,2 x PCIe 3.0 x1,1 x PCIe 4.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x16 mode)

Almacenamiento

• AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors : ,AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : ,Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports,1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support,AMD B550 Chipset : ,4 x SATA 6Gb/s port(s),,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support,Support Raid 0, 1, 10

LAN

• Realtek RTL8111H 1Gb Ethernet

Datos de redes inlámbricas

• Supports PCIe interface,Wi-Fi 802.11 a/b/g/n/ac,Supports dual band frequency 2.4/5 GHz

Bluetooth

• Bluetooth® 5.0

Audio

• Realtek ALC887/8977.1 Surround Sound High Definition Audio CODEC *,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- LED-illuminated design,- Audio Shielding,- Dedicated audio PCB layers,- Premium Japanese audio capacitors,Audio Feature :,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Puertos USB

• 4 x USB 2.0 port(s)(4 x Type-A),Front USB Port ( Total 6 ),Rear USB Port ( Total 6 ),2 x USB 3.2 Gen 2 port(s)(2 x Type-A),2 x USB 3.2 Gen 1 port(s)(2 x Type-A),4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

Software

• ASUS Exclusive Software
• Armoury Crate
• - Aura Creator
• - Aura Sync
• AI Suite 3
• - Performance And Power Saving Utility
• TurboV EVO
• EPU
• Digi+ VRM
• Fan Xpert 2+
• - EZ update
• ASUS CPU-Z
• AI Charger
• DAEMON Tools
• Norton Anti-virus software (Free Trial for 60 days)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

Funciones especiales de ASUS

• ASUS 5X PROTECTION III
• - ASUS DIGI+ VRM
• - ASUS LANGuard
• - ASUS Overvoltage Protection
• - ASUS SafeSlot Core
• - ASUS Stainless-Steel Back I/O
• ASUS Q-Design
• - ASUS Q-DIMM
• - ASUS Q-Slot
• ASUS Thermal Solution
• - Aluminum heatsink design
• AURA Sync
• - Standard RGB headers
• - Addressable Gen 2 RGB header
• ASUS Lighting Control

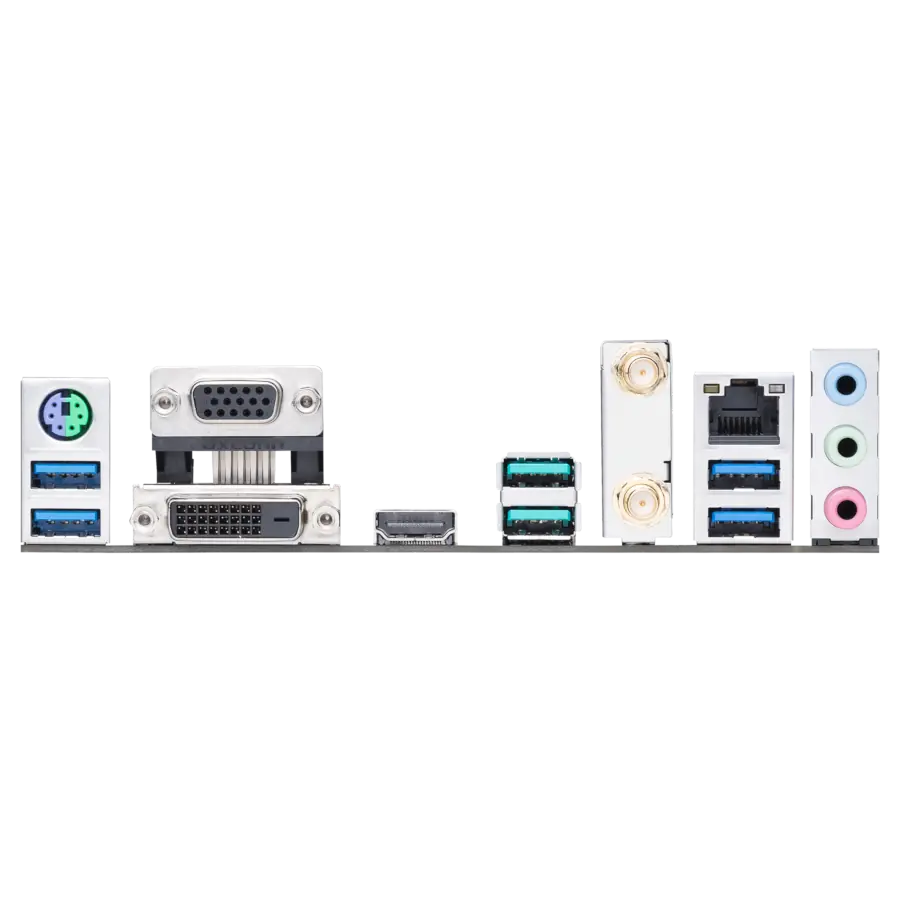

Puertos I/O Traseros

• 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
• 4 x USB 3.2 Gen 1 (blue) Type-A
• 1 x DVI-D
• 1 x D-Sub
• 3 x Audio jack(s)
• 1 x ASUS Wi-Fi Module
• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x HDMI
• 1 x LAN (RJ45) port(s)

I/O Interno

• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 2 x Aura RGB Strip Headers
• 1 x 8-pin EATX 12V Power connectors
• 2 x Chassis Fan connector(s)
• 1 x System panel connector
• 1 x Speaker connector
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 1 x Addressable Gen 2 header(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x SPI TPM header
• 4 x SATA 6Gb/s connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Clear CMOS jumper(s)
• 1 x COM port header

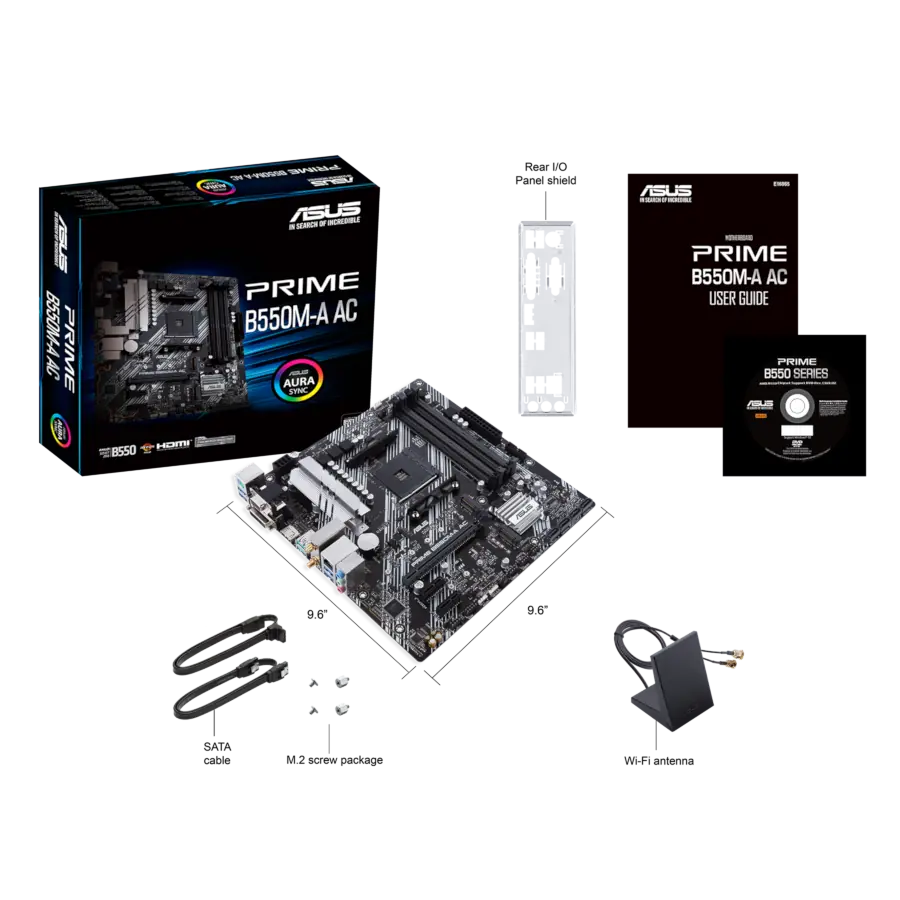

Accessorios

• 1 x M.2 SSD screw package(s)
• 1 x Wi-Fi moving antenna
• User manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x Supporting DVD

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Capacidad de gestión

• WOL by PXE

Sistema Operativo

• Windows® 10 64-bit

Factor de forma

• mATX Form Factor,9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
