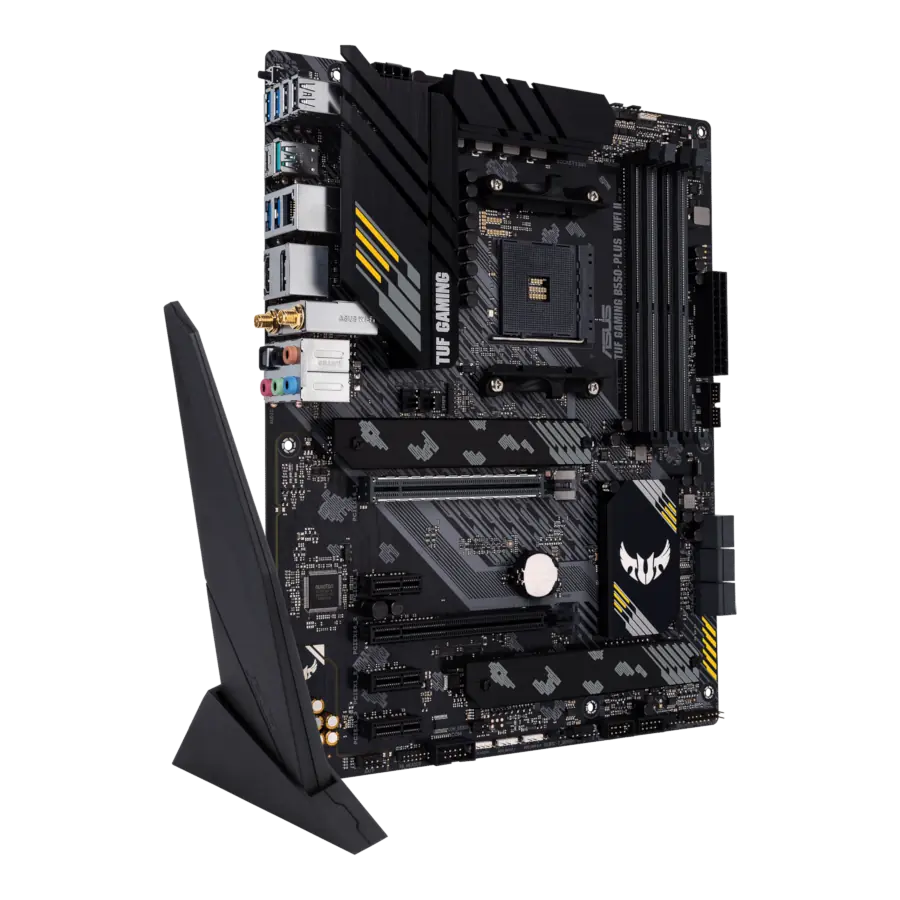

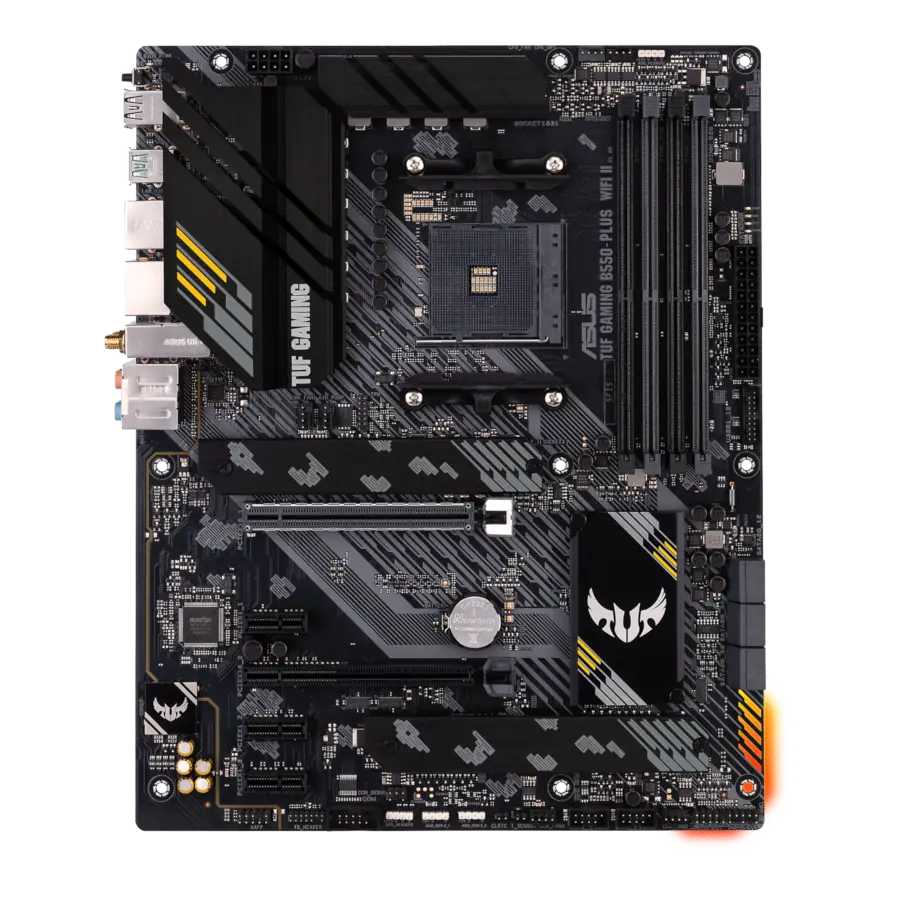

Motherboard ASUS TUF GAMING B550-PLUS WIFI II ATX PCIe 4.0 Wi-Fi 6 BT 5.2 LAN 2.5Gb AMD AM4

Tarjeta madre para juegos AMD B550 (Ryzen AM4) ATX con PCIe 4.0, doble M.2, 10 fases de poder DrMOS, Wi-Fi 6, Ethernet de 2.5 Gb, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A y Type-C, Thunderbolt™ 3 e iluminación Aura Sync RGB

• Socket AMD AM4: Listo para Procesadores de escritorio Ryzen™ 5000 Series / 4000 G-Series / 3000 Series.
• Solución de alimentación mejorada: 8 + 2 fases de poder DrMOS, enchufes ProCool, componentes TUF de grado militar y Digi + VRM para una máxima durabilidad.
• Refrigeración completa: Disipador de calor VRM, disipador de calor PCH sin ventilador, disipador de calor Dual M.2, puertos de ventilador híbridos y utilidad Fan Xpert 4.
• Conectividad de próxima generación: PCIe 4.0 M.2, USB 3.2 Gen 2 Tipo-A y Tipo-C y Thunderbolt™ 3.
• Creada para juegos en línea: Wi-Fi 6, Ethernet de 2.5 Gb y TUF LANGuard.
• Micrófono con cancelación de ruido AI: Proporciona una comunicación de voz nítida en el juego.

CPU

• AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors*Refer to www.asus.com for CPU support list.

Memoria

• Memory Channels: 4DDR4 (Dual channel)
• Max Memory Size: 128GB
• 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory*
• Dual Channel Memory Architecture
• * ECC Memory (ECC mode) support varies by CPU.

Gráficos

• 1 x HDMI® port***
• 1 x DisplayPort 1.2
• 1 x HDMITM 2.1(4K@60HZ)
• *Graphics specifications may vary between CPU types.

Ranuras de expansión

• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x16 mode)
• AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
• 1 x PCIe 3.0 x16 slot (supports x16 mode)
• AMD B550 Chipset
• 1 x PCIe 3.0 x16 slot (supports x4 mode)*
• 3 x PCIe 3.0 x1 slot*
• *PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied.
• **Support PCIe bifurcation for RAID on CPU function.

Almacenamiento

• Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
• AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
• AMD B550 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
• 6 x SATA 6Gb/s ports
• Support Raid 0, 1, 10
• *M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.

Ethernet

• Realtek RTL8125B 2.5Gb Ethernet

Wireless y Bluetooth

• Intel® Wi-Fi 6 AX200
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
• Supports up to 2.4Gbps max data rate
• Supports dual band frequency 2.4/5 GHz
• Supports channel bandwidth: HT20/HT40/HT80/HT160
• Supports PCIe interface
• Bluetooth v5.1*
• *BT 5.1 function will be ready in Windows 10 build 19041 or later.
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.2*
• *Bluetooth v5.2 function will be ready in Windows 11 or later.

USB

• Rear USB:Rear USB Port ( Total 8 )
• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB:Total 6 ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• ALC887/897
• Realtek 7.1 Surround Sound High Definition Audio CODEC
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Rear optical S/PDIF out port
• - Premium audio capacitors
• - Dedicated audio PCB layers
• - Audio Cover

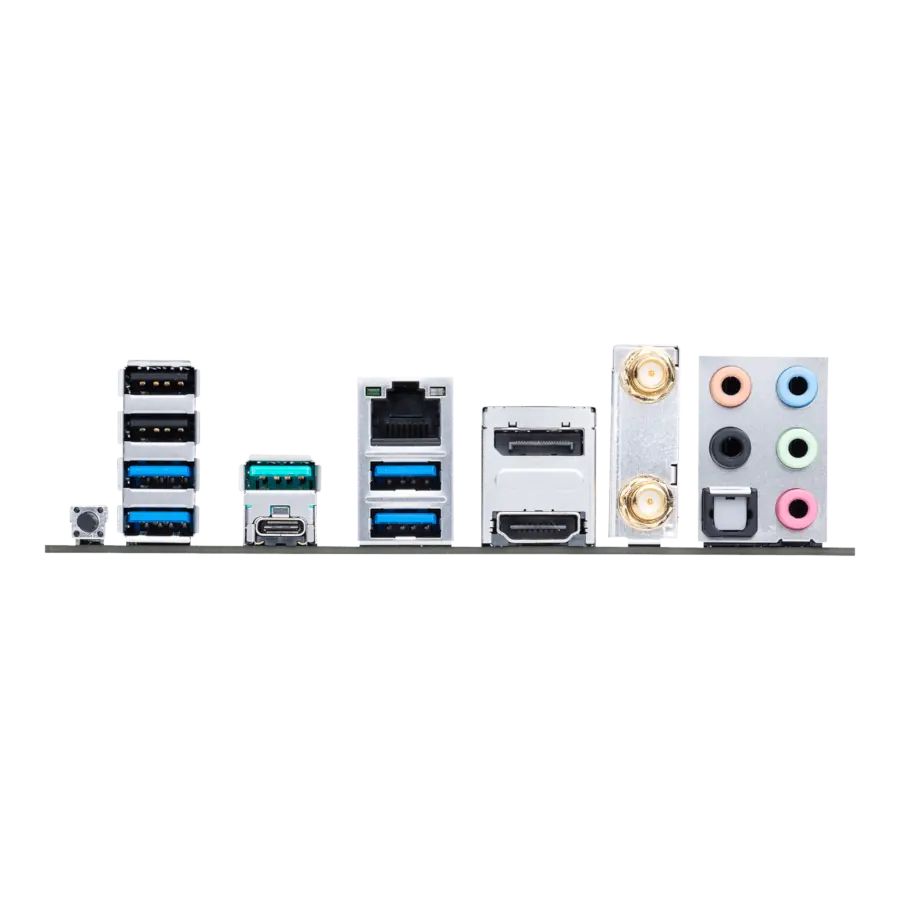

Puertos E/S traseros

• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x ASUS Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button

Puertos internos

• Fan and Cooling related
• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin CPU OPT Fan header(s)
• 1 x 4-pin AIO Pump header(s)
• 3 x 4-pin Chassis Fan header(s)
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
• Miscellaneous
• 2 x AURA Addressable Gen 2 header(s)
• 2 x AURA RGB header(s)
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt header

Funciones especiales de ASUS

• ASUS TUF PROTECTION
• - ASUS DIGI+ VRM (Digital power design with Dr. MOS)
• - ASUS Enhanced DRAM Overcurrent Protection
• - ASUS ESD Guards
• - TUF LANGuard
• - ASUS Overvoltage Protection
• - ASUS SafeSlot
• - ASUS Stainless-Steel Back I/O
• ASUS Q-Design
• - ASUS Q-DIMM
• - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• - ASUS Q-Slot
• ASUS Thermal Solution
• - Aluminum M.2 heatsink
• ASUS EZ DIY
• - BIOS FlashBack™ button
• - BIOS FlashBack™ LED
• - Procool
• AURA Sync
• - AURA RGB header(s)
• - Addressable Gen 2 RGB header(s)

Software

• ASUS Exclusive Software
• Armoury Crate
• - Aura Sync
• - Two-Way AI Noise Cancelation
• AI Suite 3
• - Performance And Power Saving Utility
• TurboV EVO
• EPU
• Digi+ VRM
• Fan Xpert 4
• PC Cleaner
• - EZ update
• - System Information
• Aura Creator
• TUF GAMING CPU-Z
• DTS Custom for GAMING Headsets
• Norton Anti-virus software (Free Trial for 60 days)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Sistema operativo

• Windows 10 64bit

Factor de forma

• ATX
• 30.5cm x 24.4cm
