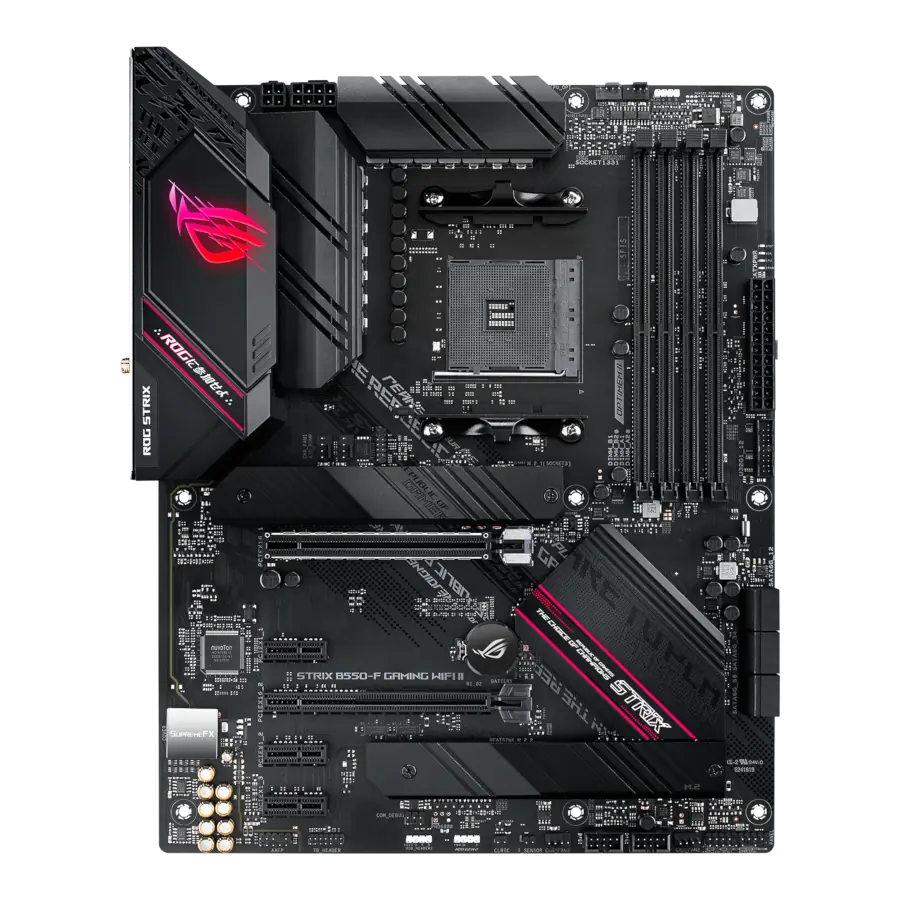

Motherboard ASUS ROG STRIX B550-F GAMING WIFI II ATX AMD AM4 Wi-Fi 6E LAN 2.5G PCIe 4.0 USB 3.2 Gen2

Tarjeta madre AMD B550Ryzen AM4Gaming ATX con PCIe® 4.0, 12 + 2 fases de poder en equipo, Intel® 2.5 Gb Ethernet, WiFi 6E, cancelación de ruido AI bidireccional, puertos M.2 duales con disipadores de calor, SATA 6 Gbps, USB 3.2 Gen 2 e iluminación Aura Sync RGB

• Socket AM4: Listo para las series AMD Ryzen™ 3000 y 5000, además de los procesadores de escritorio de la serie 5000 y 4000 G.
• La mejor conectividad para juegos: Compatible con PCIe® 4.0, puertos dobles M.2, USB 3.2 Gen 2 Type-C®, además de salida HDMI® 2.1 y DisplayPort™ 1.2
• Conexión en red fluida: WiFi 6E integrado (802.11ax) e Intel® 2.5 Gb Ethernet con ASUS LANGuard.
• Solución de alimentación robusta: 12 + 2 fases de poder combinadas con conector de alimentación ProCool, chokes de aleación de alta calidad y condensadores duraderos.
• Software de renombre: Paneles intuitivos para UEFI BIOS y ASUS AI Networking para una fácil configuración.
• Diseño de fácil montaje: Incluye protector de E / S premontado, BIOS FlashBack™, Q-LEDs y SafeSlot.
• Personalización inigualable: Iluminación Aura Sync RGB exclusiva de ASUS, que incluye Aura RGB y puertos RGB direccionables Gen 2.
• Audio para juegos líder en la industria: Cancelación de ruido AI bidireccional, códec SupremeFX S1220A, DTS® Sound Unbound™ y Sonic Studio III para un sonido envolvente.

CPU

•  AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Memoria

•  - Memory Channels: 4DDR4 (Dual channel)
•  - Max Memory Size: 128GB
• AMD Ryzen™ 5000 and 3000 Series Desktop Processors
• 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory *
• AMD Ryzen™ 5000 and 4000 G-Series Processors
• 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory *
• ECC Memory (ECC mode) support varies by CPU.

Gráficos

• 1 x DisplayPort 1.2
• 1 x HDMI port

Ranuras de expansión

• AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
• 1 x PCIe 4.0 x16 SafeSlot (supports x16 mode)
• AMD B550 chipset
• 1 x PCIe 3.0 x16 slot (supports x4 mode)*
• 3 x PCIe 3.0 x1 slots
• *Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3

Almacenamiento

• Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
• AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
• AMD B550 Chipset:
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
• 6 x SATA 6Gb/s ports
• Support RAID 0, 1, 10
• * When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled.

LAN

•  - 1 x Intel® 2.5Gb Ethernet
• 1 x Intel® I225-V 2.5Gb Ethernet
• ASUS LANGuard

Red de datos inalámbrica

• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.2
• * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

Puertos USB

•  - Rear USB: Total 8 ports
• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports
•  - Front USB: Total 6 ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
• - Impedance sense for front and rear headphone outputs
• - Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
• - Supports up to 32-Bit/192kHz playback*
• Audio Features
• - SupremeFX Shielding Technology
• - Dual OP Amplifiers
• - Premium audio capacitors
• - Audio cover
• * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 8-Channel audio.

Puertos del panel trasero

• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports
• 1 x Wi-Fi Module
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Intel® I225-V 2.5G Ethernet
• 1 x Optical S/PDIF out
• 5 x Audio jacks
• 1 x BIOS FlashBackTM button

Puertos E/S internos

• Fan and cooling related
• 1 x 4-Pin AIO_Pump header
• 1 x 4-Pin CPU fan header
• 1 x 4-Pin CPU_OPT fan header
• 3 x 4-Pin Chassis fan headers
• Power related
• 1 x 24-pin main power connector
• 1 x 8-pin +12V power connector
• 1 x 4-pin +12V power connector
• Storage related
• 2 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 1 x Addressable Gen 2 header
• 2 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x Front panel audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal sensor header
• 1 x Thunderbolt™ header

Características especiales

• ASUS Q-Design
• - ASUS Q-DIMM
• - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
• - ASUS Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink
• AURA Sync
• - AURA RGB headers
• - Addressable Gen 2 RGB headers
• ASUS EZ DIY
• - BIOS FlashBack™ button
• - BIOS FlashBack™ LED
• - Clear CMOS header
• - ProCool
• - Pre-mounted I/O shield
• - SafeSlot

Software

• ROG Exclusive Software
• - RAMCache III
• - ROG CPU-Z
• - GameFirst VI
• - Sonic Studio III + Sonic Studio Virtual Mixer
• - Sonic Radar III
• - DTS® Sound Unbound
• - Overwolf
• - Anti-virus software
• ASUS Exclusive Software Features
• Armoury Crate
• - AIDA64 Extreme (60 days free trial)
• - Aura Creator
• - Aura Sync
• - Two-Way AI Noise Cancelation
• AI Suite 3:
• - Performance And Power Saving Utility
•  EPU
•  DIGI+ VRM
•  Fan Xpert 4
•  TurboV EVO
• - EZ update
• WinRAR
• DAEMON Tools
• Norton Anti-virus software (Free Trial version)
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

Accesorios

• Cables
• 1 x Addressable RGB extension cable
• 4 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties pack
• 1 x M.2 Rubber Package
• 1 x M.2 SSD screw package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• Installation Media
• 1 x Support DVD
• Documentation
• 1 x User manual

Factor de forma

• ATX
• 30.5cm x 24.4cm
