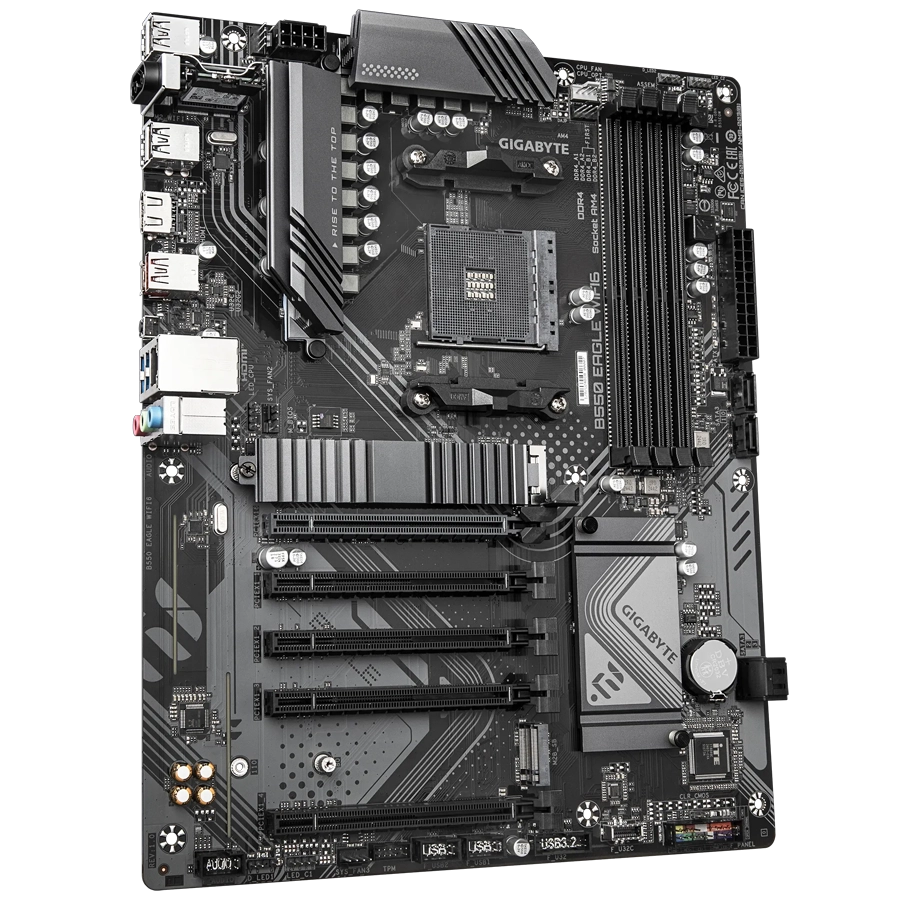

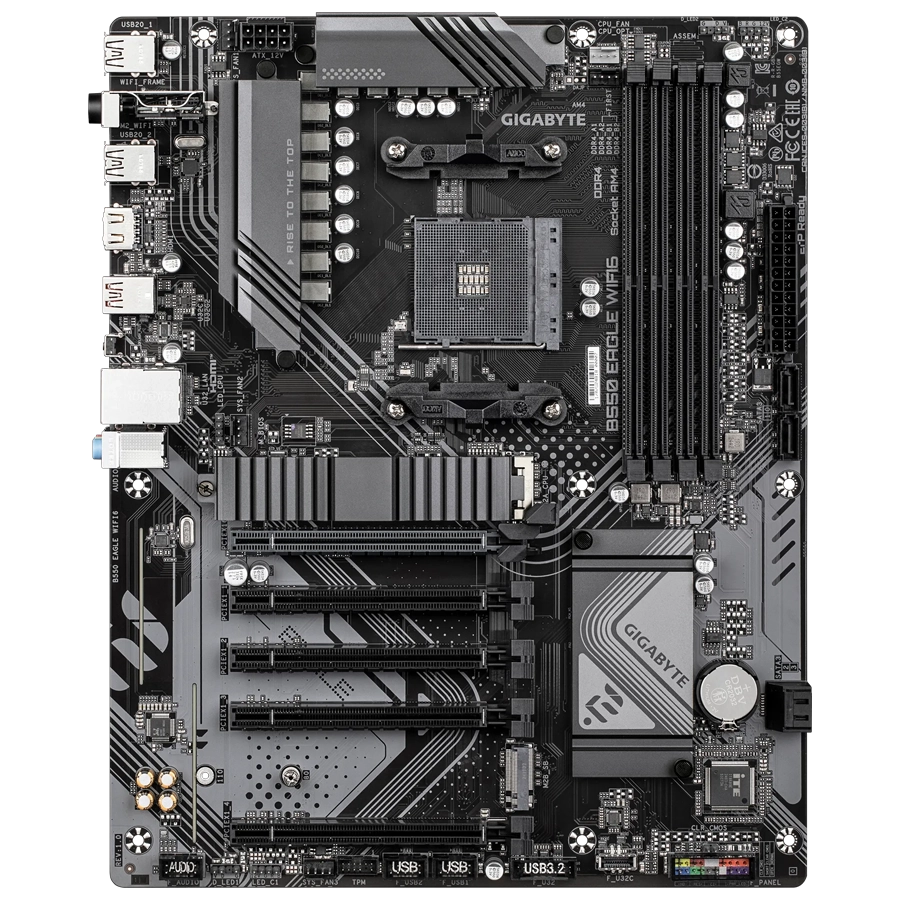

Motherboard GIGABYTE B550 EAGLE WIFI6 AMD AM4 ATX DDR4 PCIe 4.0 M.2 Gen4

Procesador

• AMD Socket AM4, support for:
• AMD Ryzen™ 5000 G-Series Processors/
• AMD Ryzen™ 5000 Series Processors/
• AMD Ryzen™ 4000 G-Series Processors/
• AMD Ryzen™ 3000 G-Series Processors/
• AMD Ryzen™ 3000 Series Processors

Chipset

• AMD B550

Memoria

• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Gráficos Integrados

• Integrated Graphics Processor with AMD Radeon™ Graphics support:
• - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
• ** Support for native HDMI 2.1 TMDS compatible ports.
• (Graphics specifications may vary depending on CPU support.)
• Maximum shared memory of 16 GB

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

• Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Wireless

• Realtek® Wi-Fi 6 RTL8851BE
• - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
• - BLUETOOTH 5.3
• - Support for 11ax 80MHz wireless standard
• (Actual data rate may vary depending on environment and equipment.)

Puertos de Expansión

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
•  AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
•  AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode
• * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• Chipset:
• - 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)

Interfaz de Almacenamiento

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
• - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
• - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
• 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• CPU:
• - AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel
• - AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel
• - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
• - 2 x USB 3.2 Gen 1 ports on the back panel
• Chipset:
• - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
• - 2 x USB 3.2 Gen 1 ports available through the internal USB header
• - 4 x USB 2.0/1.1 ports available through the internal USB headers
• Chipset+USB 2.0 Hub:
• - 4 x USB 2.0/1.1 ports on the back panel

Conectores Internos de E/S

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 3 x system fan headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x Clear CMOS jumper

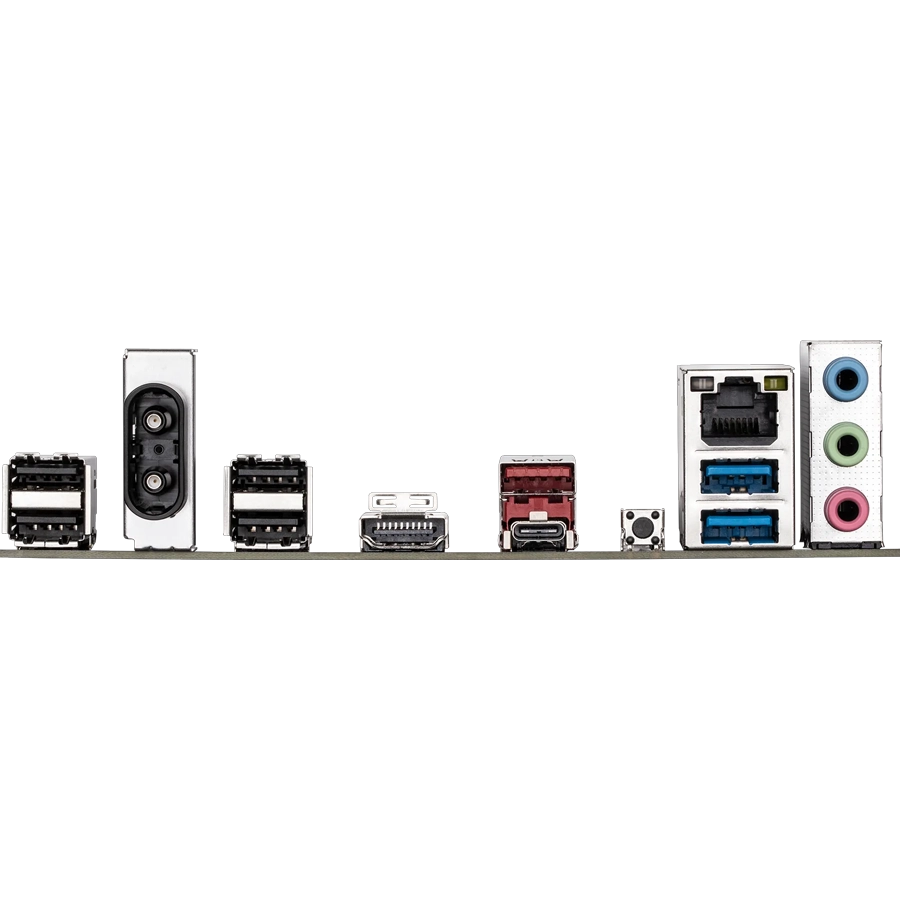

Conectores del Panel Trasero

• 4 x USB 2.0/1.1 ports
• 2 x antenna connectors (1T1R)
• 1 x HDMI port (Note)
• 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red)
• 1 x USB Type-C® port, with USB 3.2 Gen 1 support
• 1 x Q-Flash Plus button
• 1 x RJ-45 port
• 2 x USB 3.2 Gen 1 ports
• 3 x audio jacks
• (Note) Actual support may vary by CPU.

Controlador de E/S

• iTE® I/O Controller Chip

Monitorización H/W

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• * Whether the fan speed control function is supported will depend on the fan you install.

BIOS

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Características Únicas

• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• - @BIOS
• - EasyTune
• - RGB Fusion
• - Smart Backup
• - System Information Viewer
• Support for Q-Flash Plus
• Support for Q-Flash

Software Incluido

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

Sistema Operativo

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Diseño

• ATX Form Factor; 30.5cm x 24.4cm
