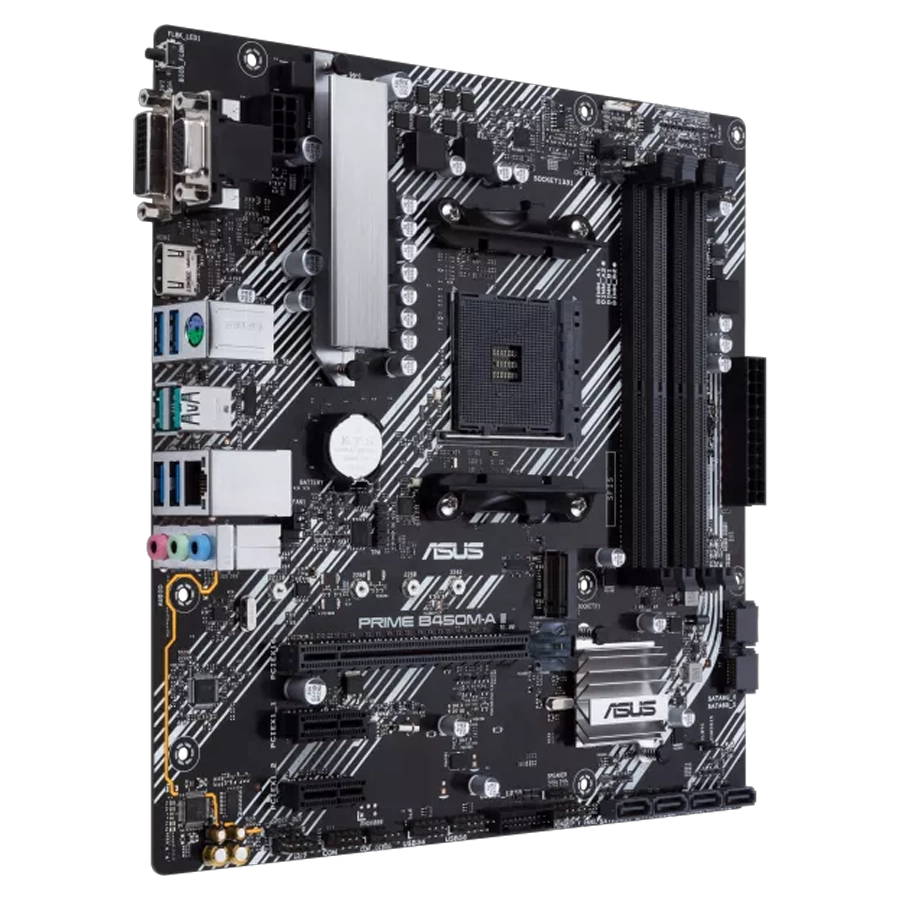

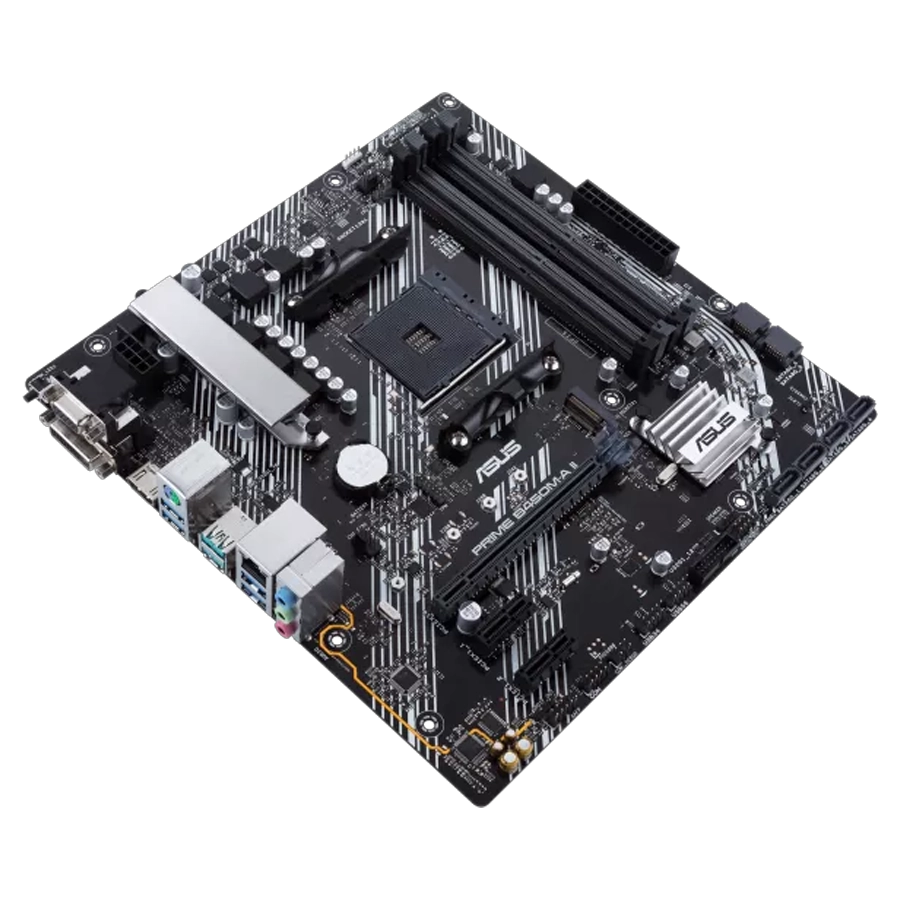

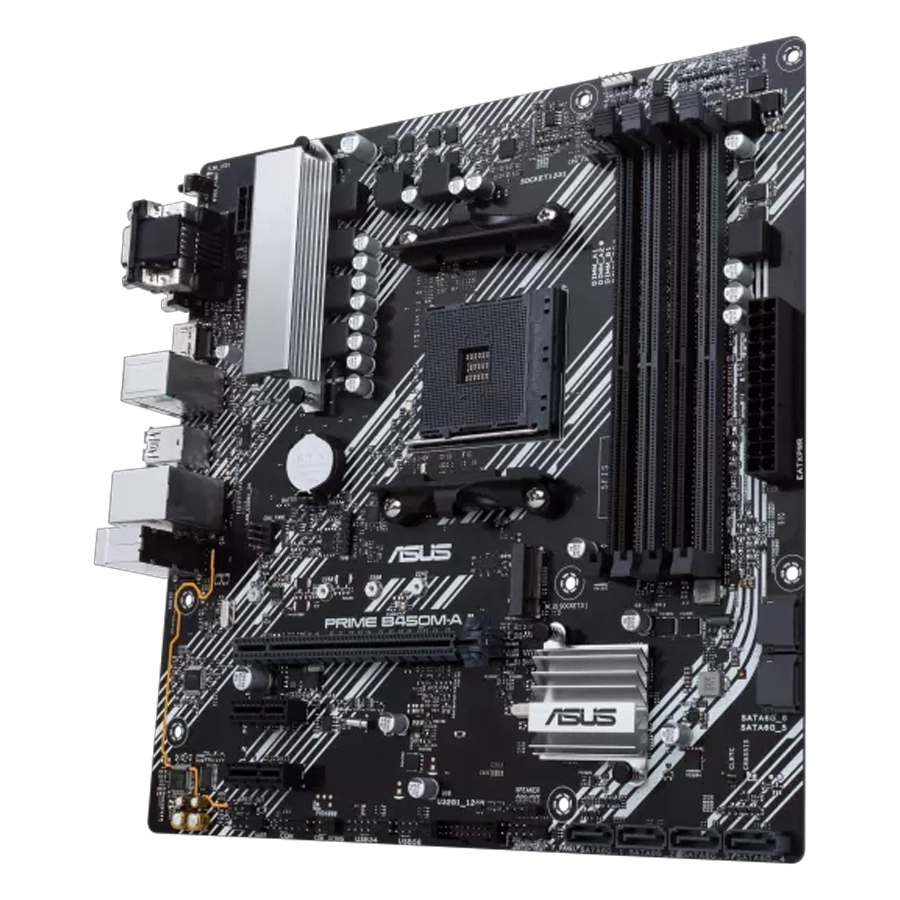

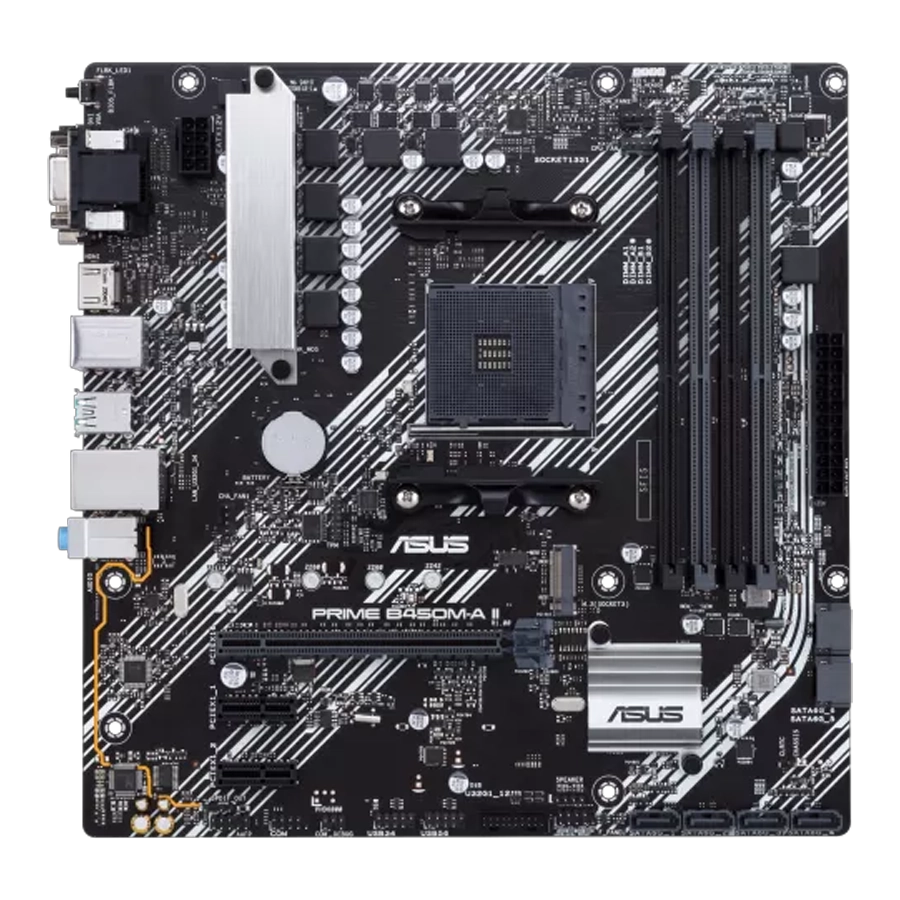

Motherboard ASUS PRIME B450M-A II/CSM mATX AMD AM4 DDR4 M.2 PCIe 3.0

Tarjeta Madre micro ATX AMD B450 (Ryzen AM4) con soporte M.2, HDMI / DVI-D / D-Sub, SATA 6 Gbps, 1 Gb Ethernet, USB 3.2 Gen 2 Tipo-A, BIOS FlashBack™ e iluminación Aura Sync RGB

• Refrigeración completa: Disipador VRM, disipador PCH y Fan Xpert 2+.
• Conectividad ultrarrápida: Compatibilidad con M.2, Ethernet de 1 Gb y USB 3.2 Gen 2 Tipo A.
• 5X Protection III: Múltiples protecciones de hardware para la protección integral del sistema.
• Iluminación Aura Sync RGB: Conector integrado para tiras de LED RGB, que se sincroniza fácilmente con una variedad cada vez mayor de hardware compatible con Aura Sync.

CPU

• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Chipset

• AMD B450

Memoria

• 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
• 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
• The maximum memory frequency supported varies by processor.
• Dual Channel Memory Architecture
• ECC Memory (ECC mode) support varies by CPU.

Gráficos

• 1 x HDMI™ port
• Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Slots de Expansión

• 1 x PCIe 3.0 x16 (x4 mode)
• 3rd/2nd/1st Gen AMD Ryzen™ Processors,AMD Athlon™ with Radeon™ Vega Graphics Processors,AMD B450 chipset
• 2 x PCIe 2.0 x1
• 1 x PCIe 3.0 x16 (x16 mode)
• 1 x PCIe 3.0 x16 (x8 mode)

Almacenamiento

• Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports
• 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : *¹
• Athlon™ with Radeon™ Vega Graphics Processors : *¹
• 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
• 2 x SATA 6Gb/s port(s)
• AMD B450 chipset :
• 4 x SATA 6Gb/s port(s)
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• Support Raid 0, 1, 10

LAN

• ASUS LANGuard
• Realtek® RTL8111H

Audio

• - Premium audio capacitors
• Realtek ALC887/8977.1
• -Channel High Definition Audio CODEC
• - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
• - LED-illuminated design
• - Audio Shielding
• - Dedicated audio PCB layers
• Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Puertos USB

• 2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A)
• Front USB Port ( Total 6 )
• Rear USB Port ( Total 6 )
• 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
• 2 x USB 3.2 Gen 1 port(s)
• 4 x USB 2.0 port(s)

Software Features

• ASUS Exclusive Software
• Armoury Crate
• - AURA Creator
• - AURA Sync
• AI Suite 3
• - Performance and Power Saving Utility
• TurboV EVO
• EPU
• DIGI+ VRM
• Fan Xpert 2+
• PC Cleaner
• - EZ update
• - System Information
• ASUS CPU-Z
• AI Charger
• ASUS EZ Installer
• DAEMON Tools
• Norton Anti-virus software (Free Trial for 60 days)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode
• ASUS Special Features
• ASUS 5X PROTECTION III
• - ASUS DIGI+ VRM
• - ASUS LANGuard
• - ASUS Overvoltage Protection
• - ASUS SafeSlot Core
• - ASUS Stainless-Steel Back I/O
• ASUS Q-Design
• - ASUS Q-DIMM
• - ASUS Q-Slot
• ASUS Thermal Solution
• - Aluminum heatsink design
• ASUS EZ DIY
• - BIOS FlashBack™ button
• - BIOS FlashBack™ LED
• AURA Sync
• - AURA RGB header
• ASUS Lighting Control

Puertos I/O Traseros

• 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
• 1 x BIOS FlashBack^™ Button(s)
• 4 x USB 3.2 Gen 1 (blue) Type-A
• 1 x DVI-D
• 1 x D-Sub
• 3 x Audio jack(s)
• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x HDMI
• 1 x LAN (RJ45) port(s)

Internal I/O

• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
• 1 x RGB Header
• 2 x Chassis Fan connector(s) (2 x 4-pin)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s connector(s)
• 1 x Speaker connector
• 1 x CPU Fan connector(s) (1 x 4-pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x SPI TPM header
• 1 x COM port(s) connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)
• 1 x COM port header

Accessorios

• 1 x ACC Express Activation Key Card
• User´s manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x M.2 Screw Package
• 1 x Supporting DVD

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Sistema Operativo

• Windows® 7 64-bit *²
• Windows® 10 64-bit

Factor de forma

• 9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )
• mATX Form Factor

Nota

• 1*The M.2 slot shares bandwidth with the SATA6G_5/6 ports, and therefore the SATA6G_5/6 ports cannot be used when an M.2 device is installed.
• 2*To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.
