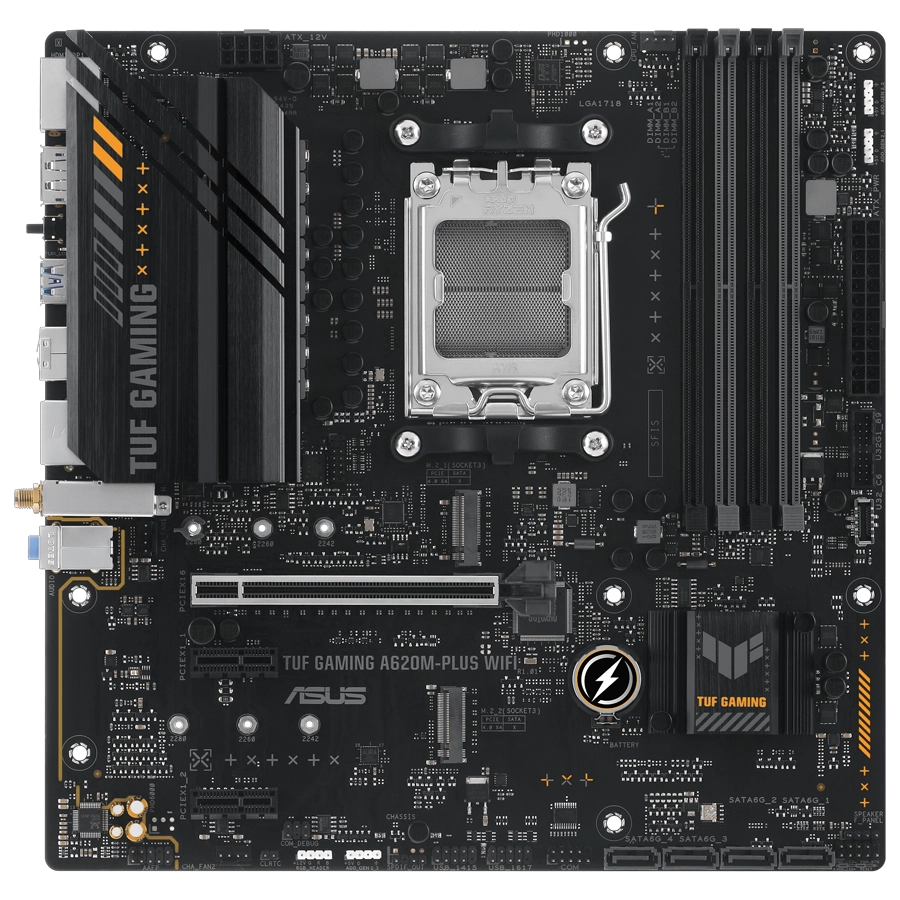

Motherboard ASUS TUF GAMING A620M-PLUS WIFI AMD AM5 mATX DDR5 PCIe 4.0 M.2 Gen4 LAN 2.5Gb WiFi 6

Requiere actualización de BIOS para su uso con procesadores Ryzen serie 8000 y 9000

Para solicitar actualización de BIOS, ponete en contacto luego de realizar tu compra

ASUS TUF GAMING A620M-PLUS WIFI toma todos los elementos esenciales de los procesadores AMD Ryzen serie 7000 y los combina con funciones listas para jugar y una durabilidad probada. Diseñada con componentes de grado militar, una solución de alimentación mejorada y un completo sistema de refrigeración, esta placa base supera las expectativas con un rendimiento sólido como una roca y estable para juegos maratonianos. Las motherboards TUF GAMING también se someten a rigurosas pruebas de resistencia para garantizar que pueden soportar condiciones en las que otras podrían fallar. Estéticamente, este modelo incorpora resistentes elementos de diseño geométrico y negro apagado para reflejar la fiabilidad y estabilidad que definen a la serie TUF GAMING.

CPU

• AMD Socket AM5 for AMD Ryzen^™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD A620 Chipset

Memoria

• 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO^™)
• OptiMem II
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Gráficos

• 2 x DisplayPort**
• 1 x HDMI^™ port***
• * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• ** Support max. 8K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.

Ranuras de expansión

• AMD Ryzen^™ 9000 & 7000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x16 mode)
• AMD Ryzen^™ 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
• AMD A620 Chipset
• 2 x PCIe 3.0 x1 slots
• ** Specifications vary by CPU types.

Almacenamiento

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• AMD Ryzen^™ 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• AMD Ryzen^™ 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
• AMD A620 Chipset
• 4 x SATA 6Gb/s ports
• * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
• ** Specifications vary by CPU types.

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth

• Wi-Fi 6
• 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth^® v5.3

USB

• Rear USB (Total 6 ports)
• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C^®)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• * USB Type-C^® power delivery output: max. 5V/3A

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Puertos E/S del panel trasero

• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 2 x DisplayPort
• 1 x HDMI^™ port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack^™ button
• 1 x PS/2 Keyboard/Mouse combo port

Conectores E/S internos

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C^® )
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x 10-1 pin System Panel header

Funciones especiales

• ASUS TUF PROTECTION
• - DIGI+ VRM
• - ESD Guards
• - TUF LANGuard
• - Overvoltage Protection
• - SafeSlot Core+
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - M.2 Q-Latch
• - Q-DIMM
• - Q-LED Core
• - Q-Slot
• ASUS Thermal Solution
• - VRM heatsink design
• ASUS EZ DIY
• - BIOS FlashBack^™ button
• - BIOS FlashBack^™ LED
• Aura Sync
• - Aura RGB header
• - Addressable Gen 2 headers

Software

• ASUS Exclusive Software
• Armoury Crate
• - Aura Creator
• - Aura Sync
• - Fan Xpert 2+
• - Power Saving
• - Two-Way AI Noise Cancellation
• AI Suite 3
• - TurboV EVO
• - DIGI+ VRM
• - PC Cleaner
• TUF GAMING CPU-Z
• MyASUS
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS Wi-Fi moving antennas
• 1 x I/O Shield
• 1 x TUF Gaming sticker
• 1 x Screw package for M.2 SSD
• Documentation
• 1 x TUF Certification card
• 1 x User guide

Sistema operativo

• Windows^® 11, Windows^® 10 64-bit

Factor de forma

• Micro-ATX Form Factor
• 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
