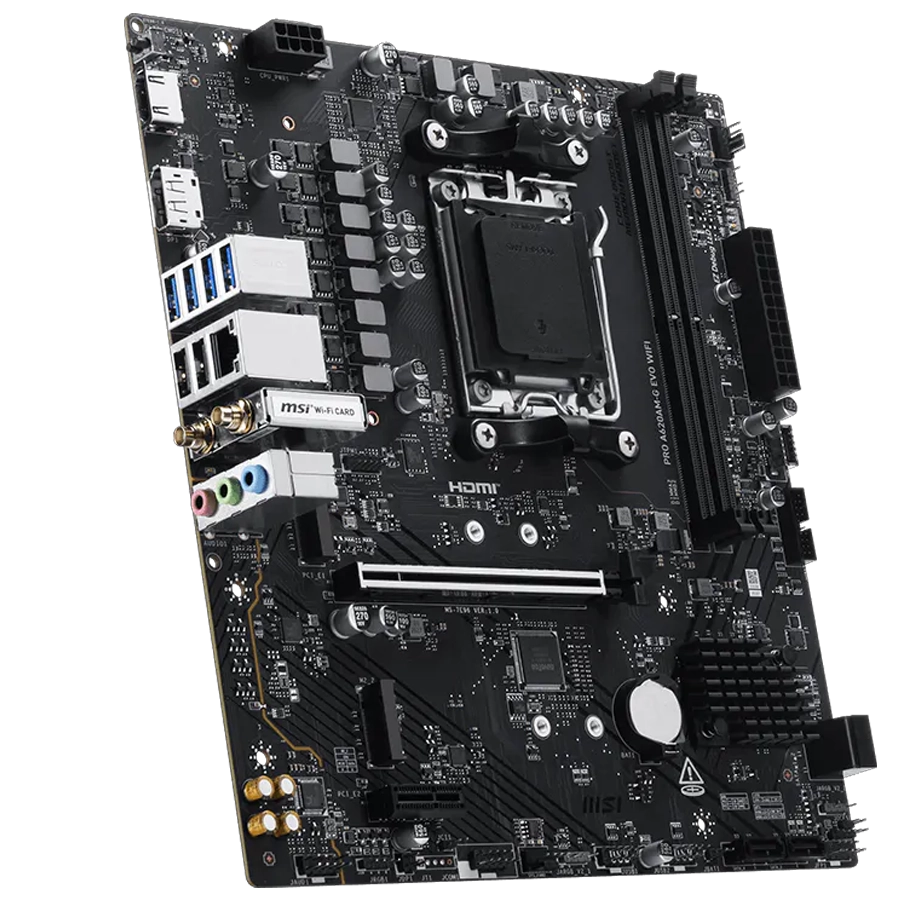

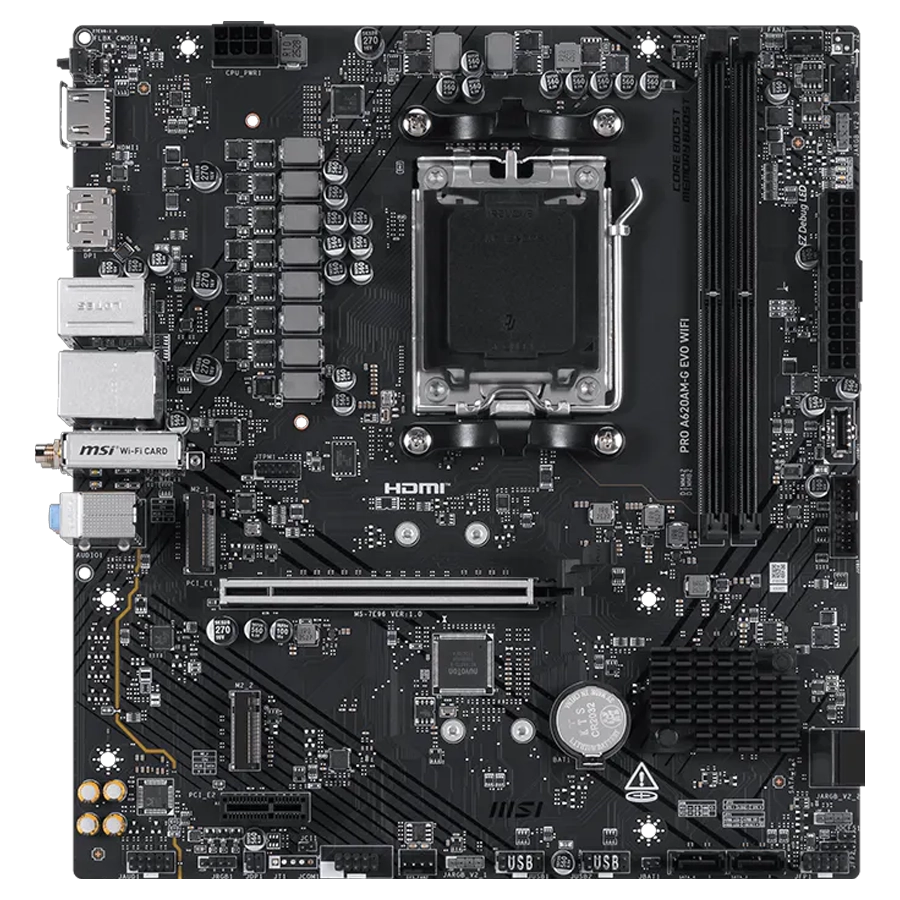

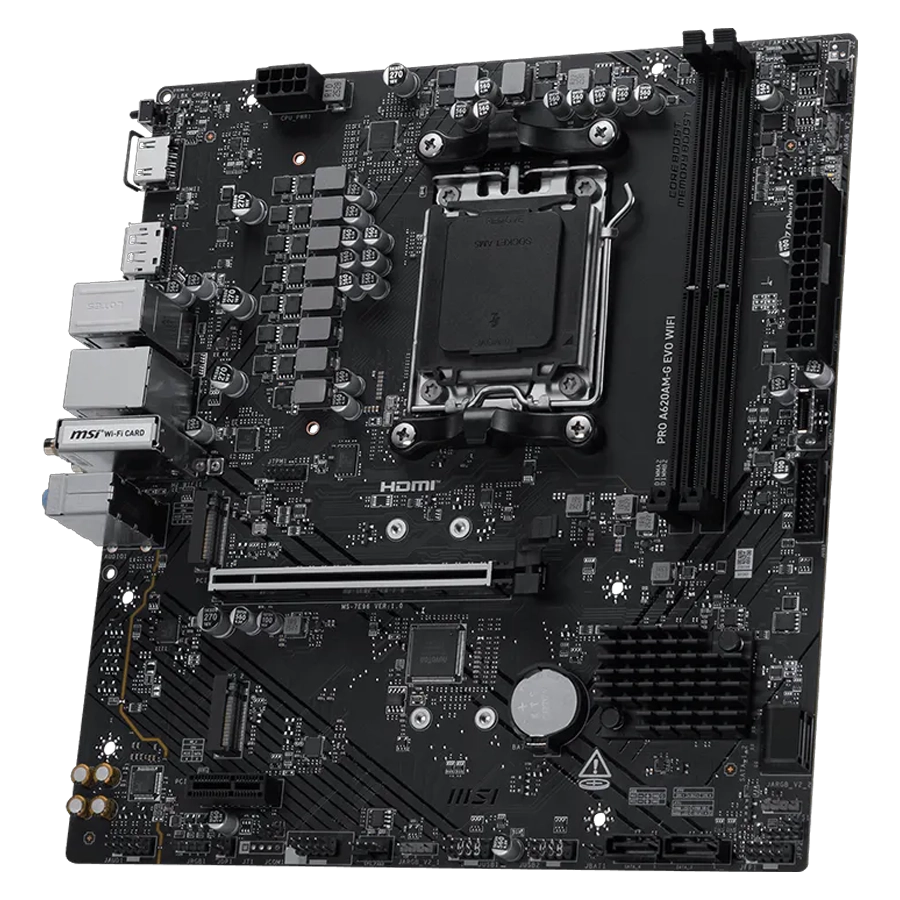

Motherboard MSI PRO A620AM-G EVO WIFI AMD AM5 DDR5 PCIe 4.0 M.2 Gen4 LAN 2.5G WiFi6E BT 5.3

Chipset

• AMD A620A

CPU

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Socket AM5

Memoria

• 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
• Memory Support DDR5 7200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
• Max. overclocking frequency:
• • 1DPC 1R Max speed up to 7200+ MT/s
• • 1DPC 2R Max speed up to 6400+ MT/s
• Supports AMD POR Speed and JEDEC Speed
• Supports Memory Overclocking and AMD EXPO™
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports CUDIMM, Clock Driver bypass mode only*
• * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• • The DIMM slots on this motherboard only have single-sided latches.

Gráficos

• 1x HDMI™
• Support HDMITM 2.1, maximum resolution of 4K 60Hz*
• 1x DisplayPort
• Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Ranuras de expansión

• 1x PCI-E x16 slot (Qty)
• 1x PCI-E x1 slot (Qty)
• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

Almacenamiento

• 2x M.2 (Qty)
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• 4x SATA 6G (Qty)
• M2_2 slot
• • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

RAID

• Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

USB

• 2x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 4x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 1x USB 5Gbps Type C (Front)

LAN

• Realtek® RTL8125D 2.5G LAN

Conectores de E/S internos

• 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x CPU Fan
• 2x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 3x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 5Gbps Type C ports

LAN inalámbrica y Bluetooth

• Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3**, FIPS, FISMA
• * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11..
• ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.

Funciones LED

• 4x EZ Debug LED

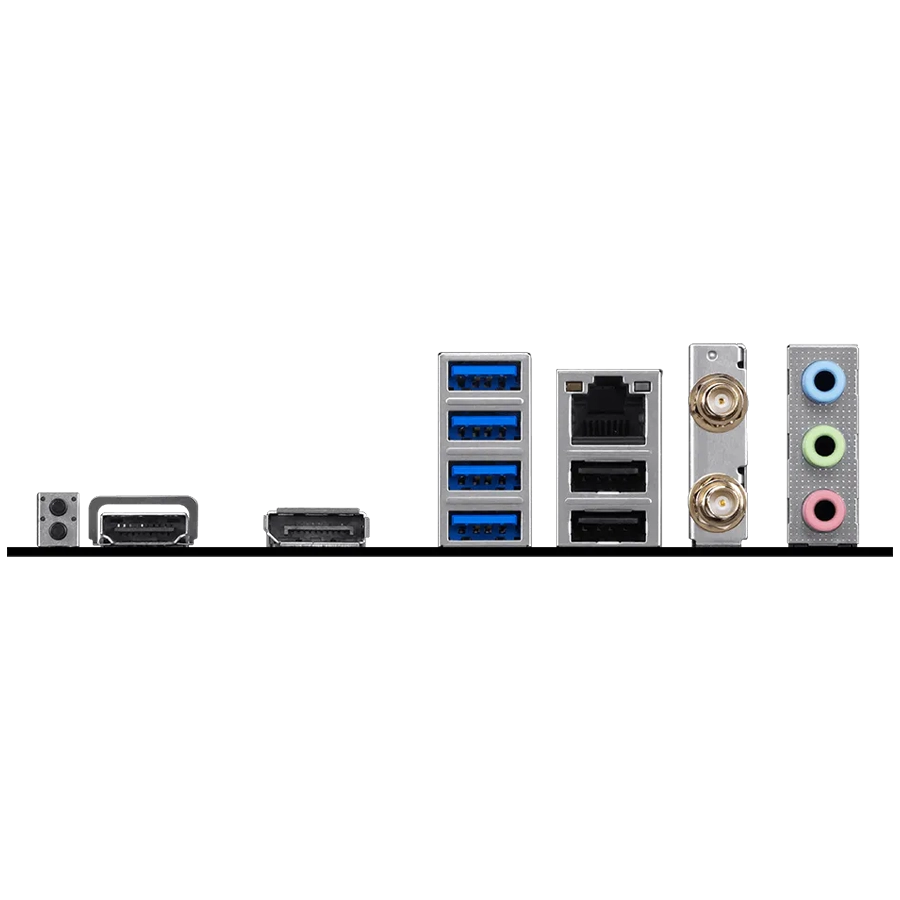

Puertos del panel trasero

• Clear CMOS Button
• Flash BIOS Button
• HDMI™
• DisplayPort
• 4x USB 5Gbps Type-A
• 2x USB 2.0
• 2.5G LAN
• 2x Wi-Fi / Bluetooth
• 3x Audio connectors

Sistema operativo

• Support for Windows® 11 64-bit, Windows® 10 64-bit

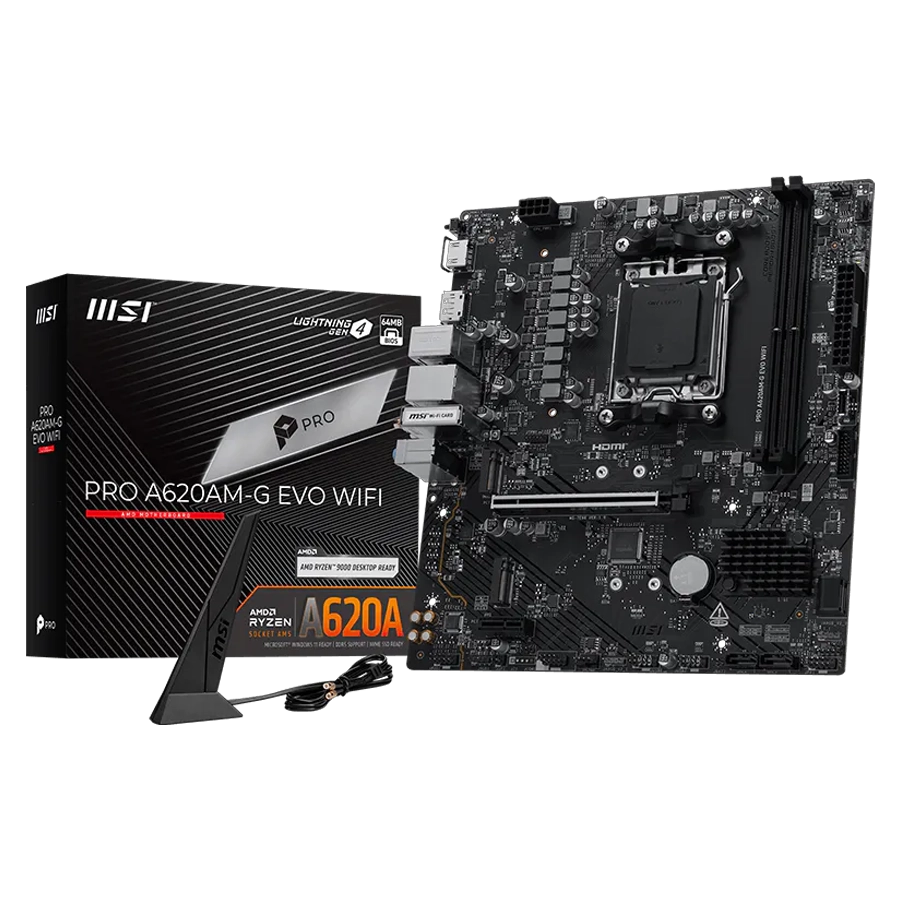

Contenido de la caja

• Quick Installation Guide
• 2x EZ M.2 Clip II
• EZ M.2 Clip II Remover
• EZ Wi-Fi Antenna
• SATA Cable
• I/O Shield

Factor de forma

• mATX
• 226mmx243.84mm
