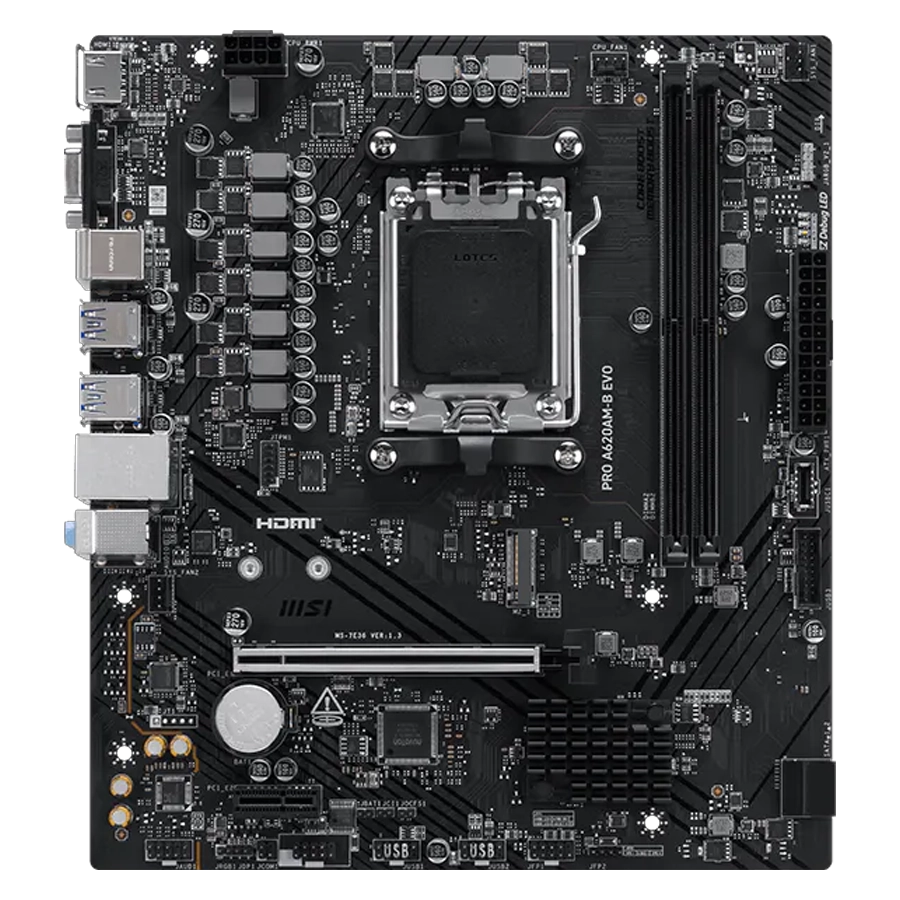

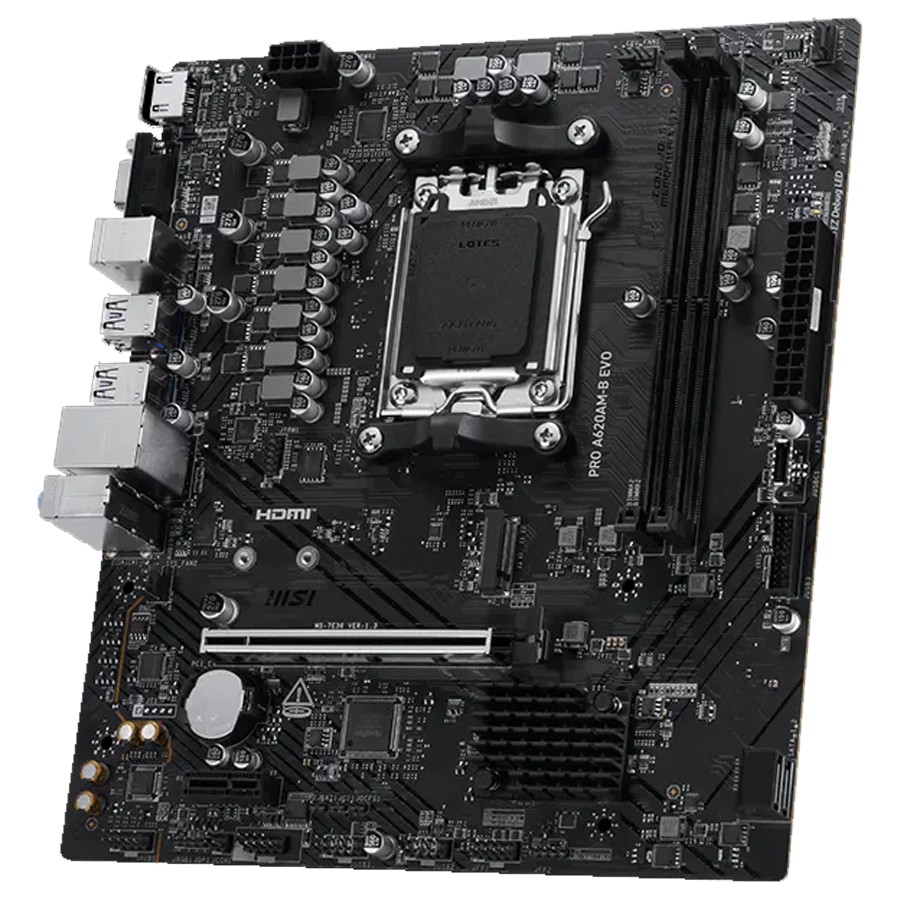

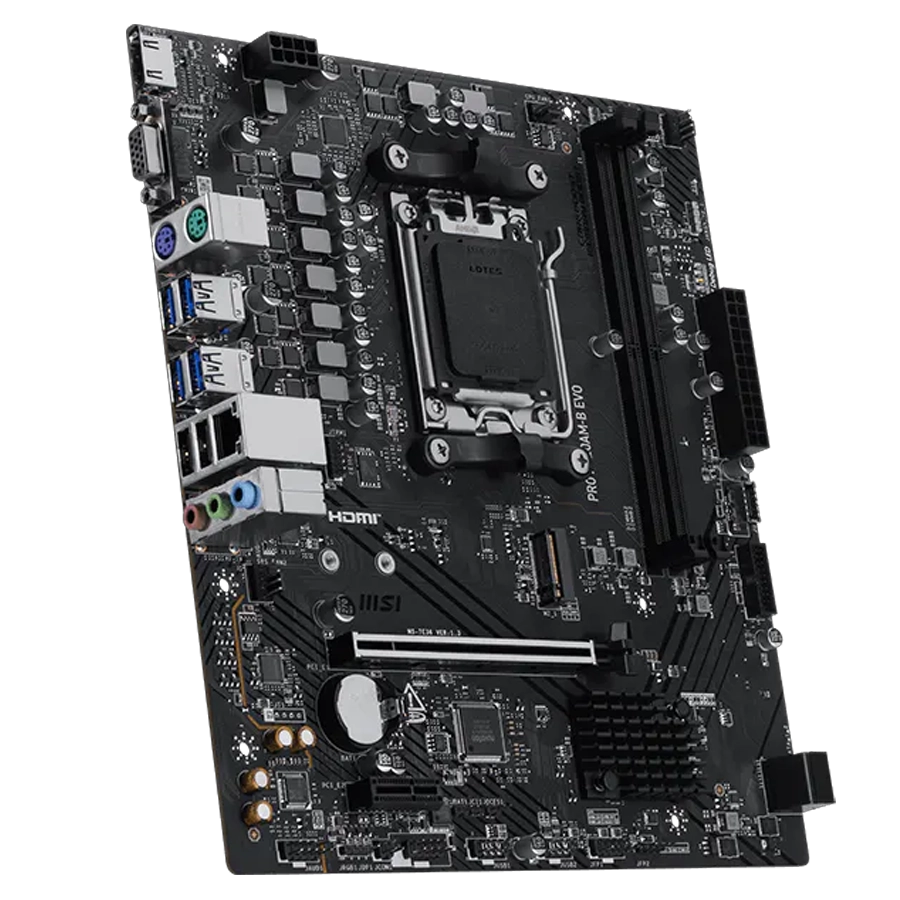

Motherboard MSI PRO A620AM-B EVO AMD AM5 mATX DDR5 PCIe 4.0 M.2 Gen4 LAN 2.5G

ELEGANCIA PROFESIONAL

La serie PRO está diseñada para profesionales de todos los sectores. Combina alto rendimiento y calidad superior para ofrecer una experiencia confiable. Quienes priorizan productividad y eficiencia pueden contar con la serie MSI PRO para optimizar la multitarea y maximizar su rendimiento.

Chipset

• AMD A620A

CPU

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Socket AM5

Memoria

• 2x DDR5, Maximum Memory Capacity 128GB
• Memory Support DDR5 6800 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
• Max. overclocking frequency:
• • 1DPC 1R Max speed up to 6800+ MT/s
• • 1DPC 2R Max speed up to 6000+ MT/s
• Supports AMD POR Speed and JEDEC Speed
• Supports Memory Overclocking and AMD EXPO™
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports CUDIMM, Clock Driver bypass mode only*
• * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• • The DIMM slots on this motherboard only have single-sided latches.

Gráficos integrados

• 1x HDMI™
• Support HDMITM 2.1, maximum resolution of 4K 60Hz*
• 1x D-Sub
• Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Ranuras

• 1x PCI-E x16 slot (Qty)
• • Supports x16 (For Ryzen™ 9000 and 7000 Series processors)
• • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• • Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
• 1x PCI-E x1 slot (Qty)
• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

Almacenamiento

• 1x M.2 (Qty)
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• 2x SATA 6G (Qty)
• M2_1 slot
• • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

RAID

• Supports RAID 0 and RAID 1 for SATA storage devices

USB

• 2x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 4x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 1x USB 5Gbps Type C (Front)

LAN

• Realtek® RTL8125 2.5G LAN

I/O interno

• 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x CPU Fan
• 2x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 1x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 5Gbps Type C ports

Funciones LED

• 4x EZ Debug LED
• 1x EZ Memory Detection LED

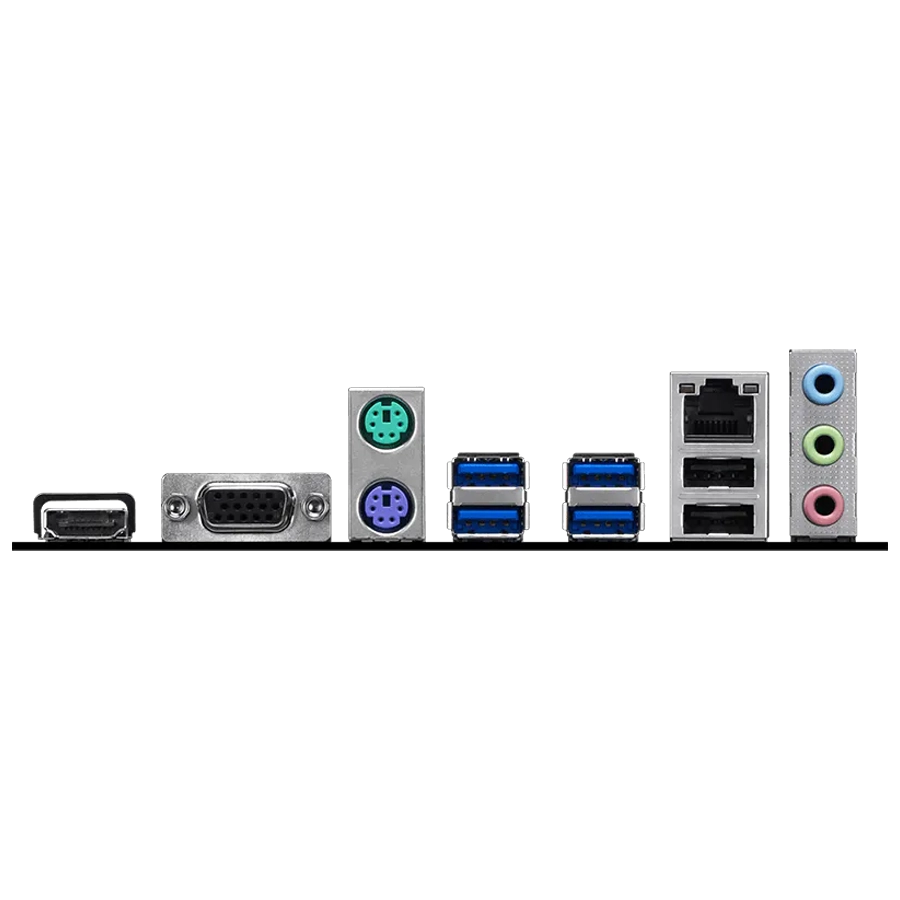

Puertos traseros

• 1x HDMI™
• 1x VGA
• 2x PS/2 (Keyboard/Mouse)
• 4x USB 5Gbps Type-A
• 2x USB 2.0
• 1x LAN port
• 3x Audio connectors

Sistema operativo

• Support for Windows® 11 64-bit, Windows® 10 64-bit

Contenido de la caja

• PRO A620AM-B EVO
• Quick Installation Guide
• EZ M.2 Clip II
• EZ M.2 Clip II Remover
• I/O Shield
• SATA Cable

PCB

• mATX
• 218mmx243.84mm
