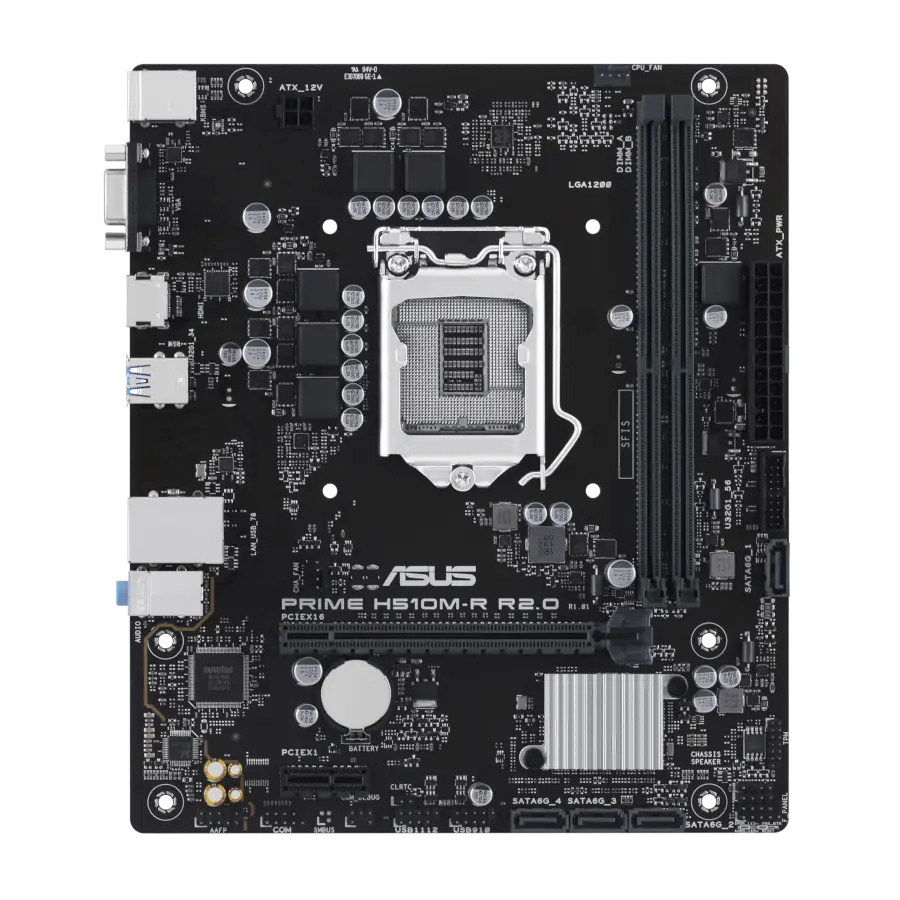

Motherboard ASUS PRIME H510M-R R2.0 Intel LGA1200 H470 DDR4 PCIe 4.0

CPU

• Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports up to Intel® 65W CPU
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® H470 Chipset

Memoria

• 2 x DIMM slots, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666.
• * 11th Gen Intel® processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.

Gráficos

• 1 x VGA port
• 1 x HDMI™ port**
• * Graphics specifications may vary between CPU types.
• ** Only Intel® 11th Gen processors support HDMI™ 2.1 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz.

Puertos de Expansión

• Intel® 11th & 10th Gen Processors
• 1 x PCIe 4.0/3.0 x16 slot
• - Intel® 11th Gen processors support PCIe 4.0 x16
• - Intel® 10th Gen processors support PCIe 3.0 x16
• Intel® H470 Chipset
• 1 x PCIe 3.0 x1 slots

Almacenamiento

• Total supports 4 x SATA 6Gb/s ports
• Intel® H470 Chipset
• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Realtek 1Gb Ethernet

USB

• Rear USB (Total 4 ports)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 6 ports)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

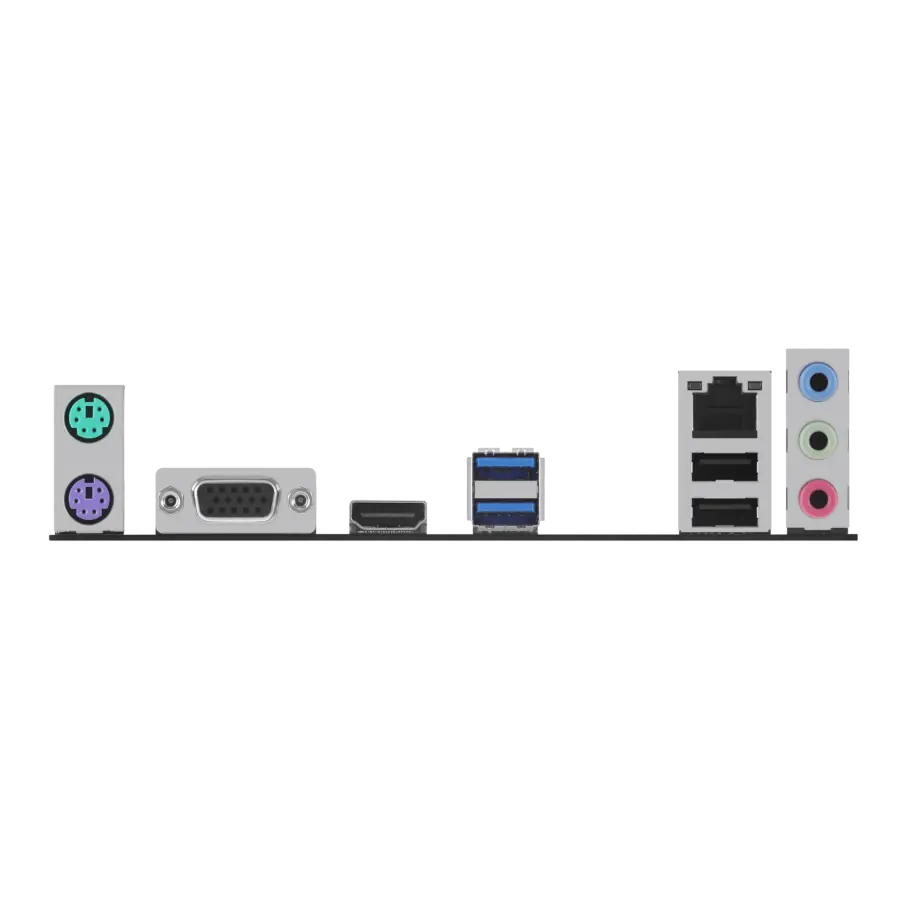

Puertos E/S del Panel Trasero

• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x VGA port
• 1 x HDMI™ port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard (purple) port
• 1 x PS/2 Mouse (green) port

Conectores E/S Internos

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header
• Power related
• 1 x 24-pin Main Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

Características Especiales

• ASUS 5X PROTECTION III
• - DIGI+ VRM
• - LANGuard
• - Overvoltage Protection
• - SafeSlot Core
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - Q-DIMM
• - Q-LED Core
• - Q-Slot
• ASUS Thermal Solution
• - Aluminum heatsink design

Software

• ASUS Exclusive Software
• Armoury Crate
• AI Suite 3
• - Performance And Power Saving Utility
•  TurboV EVO
•  EPU
•  DIGI+ VRM
• - EZ update
• ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

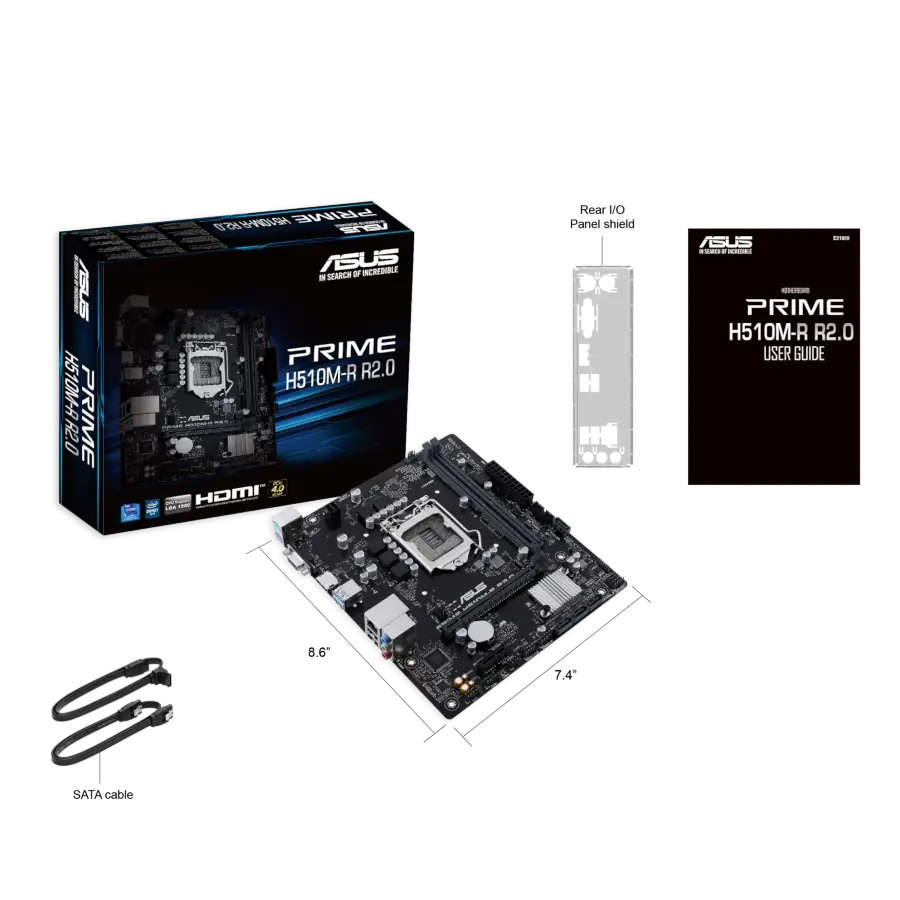

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O Shield
• Documentation
• 1 x User guide

Sistema Operativo

• Windows® 10 64-bit

Factor de Forma

• micro-ATX Form Factor
• 8.6 inch x 7.4 inch ( 21.8 cm x 18.8 cm )
